Clarion DXZ946MP User Manual

10 DXZ946MP
English
6. REMOTE CONTROL
1. Turn the remote control unit over, then slide
the rear cover in the direction of the arrow.
2. Insert the AA (SUM-3, R-6/1.5V) batteries
that came with the remote control unit facing
in the directions shown in the figure, then
close the rear cover.
Notes:
Using batteries improperly can cause them to
explode. Take note of the following points:
• When replacing batteries, replace both batteries
with new ones.
• Do not short-circuit, disassemble or heat batteries.
• Do not dispose of batteries into fire or flames.
• Dispose of spent batteries properly.
[
FUNC
]
[ ],[ ]
[
ISR
]
[
MUTE
]
[
SCN
]
[
RPT
]
[ ],[ ]
[
BAND
]
[
DISP
]
[
RDM
]
[
2-ZONE
]

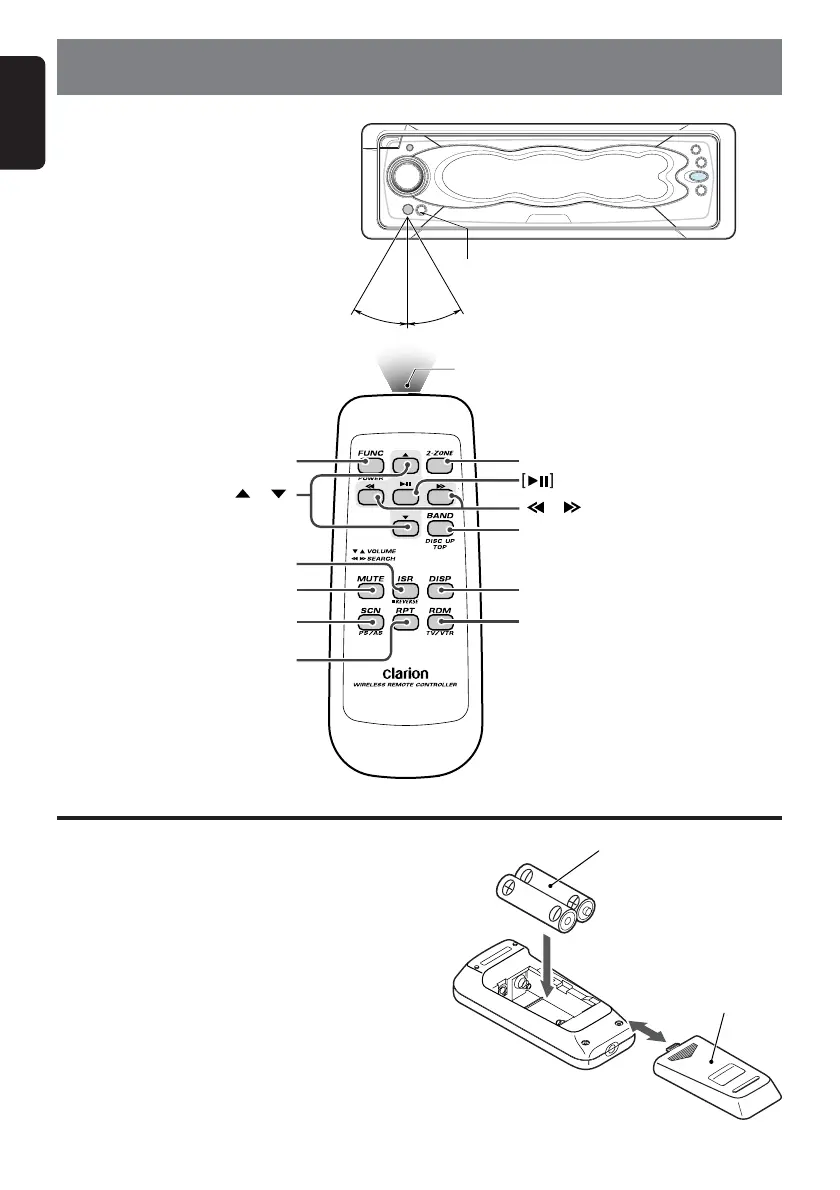

Remote control unit
Inserting the Batteries
Receiver for remote control unit
Operationg range : 30° in all directions
Signal transmitter
AA (SUM-3, R-6/1.5V)
Batteries
Rear cover
Rear side

Clarion DXZ946MP Specifications

FM Tuner

frequency range	87.0 MHz to 108.0 MHz
usable sensitivity	9 dBf
50dB quieting sensitivity	15 dBf
alternate channel selectivity	70 dB
stereo separation (1 kHz)	35 dB
frequency response (±3 dB)	30 Hz to 15 kHz

AM Tuner

frequency range	531 kHz to 1629 kHz
usable sensitivity	25 µV

CD Player

system	Compact disc digital audio system
usable discs	Compact disc
frequency response (±1 dB)	5 Hz to 20 kHz
signal to noise ratio (1 kHz)	100 dB
dynamic range (1 kHz)	96 dB
harmonic distortion	0.01%

Audio

maximum power output	212 W (53 W × 4 ch)
continuous average power output	18 W × 4, into 4 Ω, 20 Hz to 20 kHz, 1%THD
bass control action (50 Hz)	±12 dB
treble control action (12.5 kHz)	±12 dB
line output level (CD 1 kHz)	4 V/F 2ch + 4V/R 2ch

General

power supply voltage	14.4 V DC (10.8 to 15.6 V allowable)
current consumption	Less than 15 A, 3A
speaker impedance	4 Ω (4 Ω to 8 Ω allowable)
weight / source unit	1.7 kg (3.74 lb.)
weight / remote control unit	80 g (2.82 oz.)
dimensions / source unit	178 (Width) × 50 (Height) × 155 (Depth) mm
dimensions / remote control unit	44 (Width) × 110 (Height) × 27 (Depth) mm
