Clarion DXZ946MP User Manual

DXZ946MP 9
English

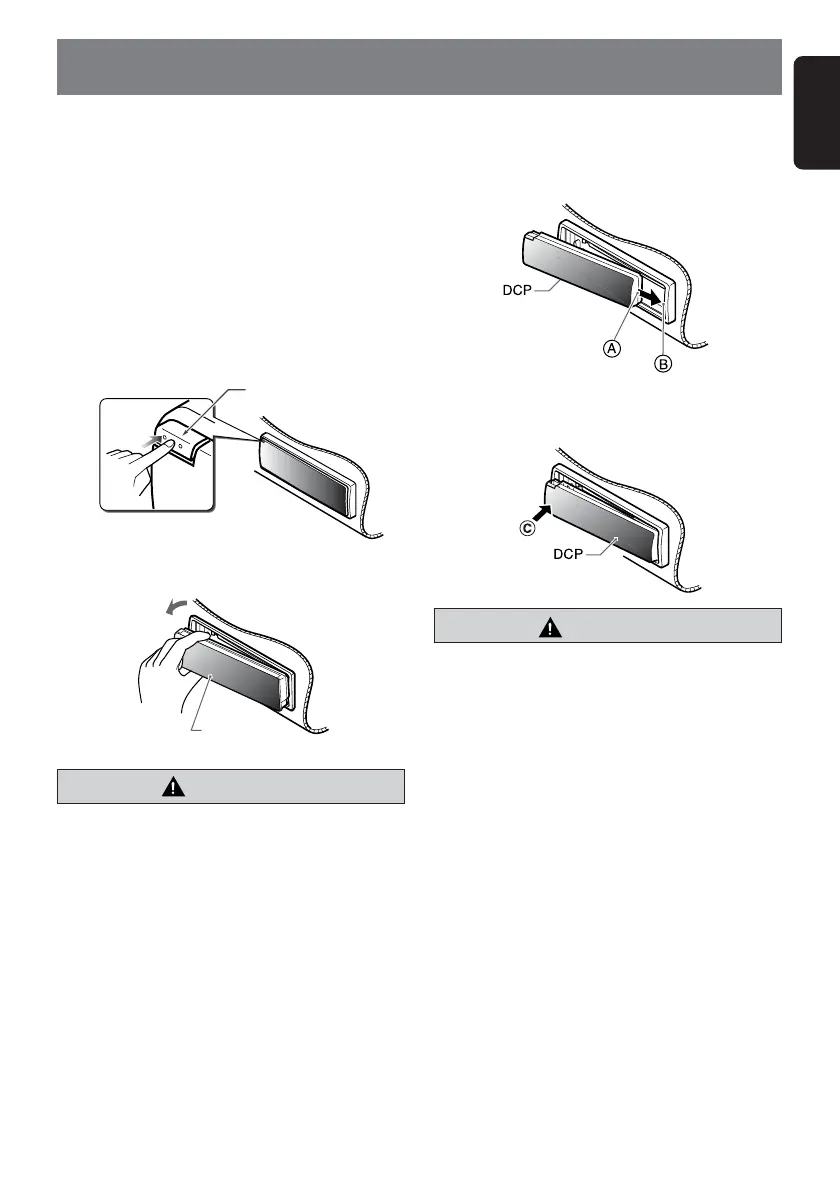

5. DCP
The control panel can be detached to prevent
theft. When detaching the control panel, store it
in the DCP (DETACHABLE CONTROL PANEL)
case to prevent scratches.
We recommend taking the DCP with you when
leaving the car.
Removing the DCP
1. With the SLOPING CONSOLE closed, turn
off the power.
2. Press the [RELEASE] button deeply to open
the DCP.
3. Pull the DCP toward you and remove it.
CAUTION
• Always close the SLOPING CONSOLE
before removing the DCP.
• If you remove the DCP with the SLOPING
CONSOLE open, the sloping console
closes immediately. Be careful not to get
your fingers caught.
Attaching the DCP
1. Insert the DCP so that the A section on the
right side of the DCP catches on the hook B
on the unit.
2. Press the left side C of the DCP carefully to
fit it in place.
CAUTION
• The DCP can easily be damaged by shocks.
After removing it, be careful not to drop it
or subject it to strong shocks.
• If the [RELEASE] button is pressed and the
DCP is not locked into place, it may fall out
from vibration of the car. This can break the
DCP, so after removing it, either install it on
the unit or put it in its DCP case.
• The connector connecting the unit and the
DCP is an extremely important part. Be
careful not to damage it by pressing on it
with fingernails, screwdrivers, etc.
Note:
• If the DCP is dirty, wipe off the dirt with a soft, dry
cloth only.
DCP
[RELEASE] button

Clarion DXZ946MP Specifications

FM Tuner

frequency range	87.0 MHz to 108.0 MHz
usable sensitivity	9 dBf
50dB quieting sensitivity	15 dBf
alternate channel selectivity	70 dB
stereo separation (1 kHz)	35 dB
frequency response (±3 dB)	30 Hz to 15 kHz

AM Tuner

frequency range	531 kHz to 1629 kHz
usable sensitivity	25 µV

CD Player

system	Compact disc digital audio system
usable discs	Compact disc
frequency response (±1 dB)	5 Hz to 20 kHz
signal to noise ratio (1 kHz)	100 dB
dynamic range (1 kHz)	96 dB
harmonic distortion	0.01%

Audio

maximum power output	212 W (53 W × 4 ch)
continuous average power output	18 W × 4, into 4 Ω, 20 Hz to 20 kHz, 1%THD
bass control action (50 Hz)	±12 dB
treble control action (12.5 kHz)	±12 dB
line output level (CD 1 kHz)	4 V/F 2ch + 4V/R 2ch

General

power supply voltage	14.4 V DC (10.8 to 15.6 V allowable)
current consumption	Less than 15 A, 3A
speaker impedance	4 Ω (4 Ω to 8 Ω allowable)
weight / source unit	1.7 kg (3.74 lb.)
weight / remote control unit	80 g (2.82 oz.)
dimensions / source unit	178 (Width) × 50 (Height) × 155 (Depth) mm
dimensions / remote control unit	44 (Width) × 110 (Height) × 27 (Depth) mm
