Clarion DXZ946MP User Manual

8 DXZ946MP
English
Display Items
FM1
BAND
B
MODE
3
42
98.10MHz
USER
MANU
INT.
ADF Dolby PL II
A touch panel display is used as the display on
this unit. You can operate this display just by
touching it with your fingertip. There are four
main display operations as follows:
Touch
Touch the display with your fingertip and take it
away within 1 second. This is the most basic
operation when operating the display.
Touch and hold
Touch the display with your fingertip and hold it
on the display for 1 or 2 seconds or longer. Do
not move your finger while you are touching the
display.
Touching and holding the display for 1 second or
longer displays lists, for example, and calls up
other handy functions.
Touching and holding the display for 2 seconds
or longer is used for storing preset memory or
other information.
Display Operations
Touch
Touch the display with your fingertip, and move
your finger to the left (
➔
) or right ( ➜ ) with your
fingertip still touching the display, and take your
fingertip away within 1 second. This operation is
used for selecting preset memory (1 to 6) or
tracks.
Touch
Touch the display with your fingertip, and move
your finger to the left (
➔
) or right ( ➜ ) with your
fingertip still touching the display, and keep your
fingertip on the display. The current operation
continues for the time your fingertip is held on
the display. This operation is used, for example,
for manual tuning or fast-forwarding/fast-
backwarding tracks.

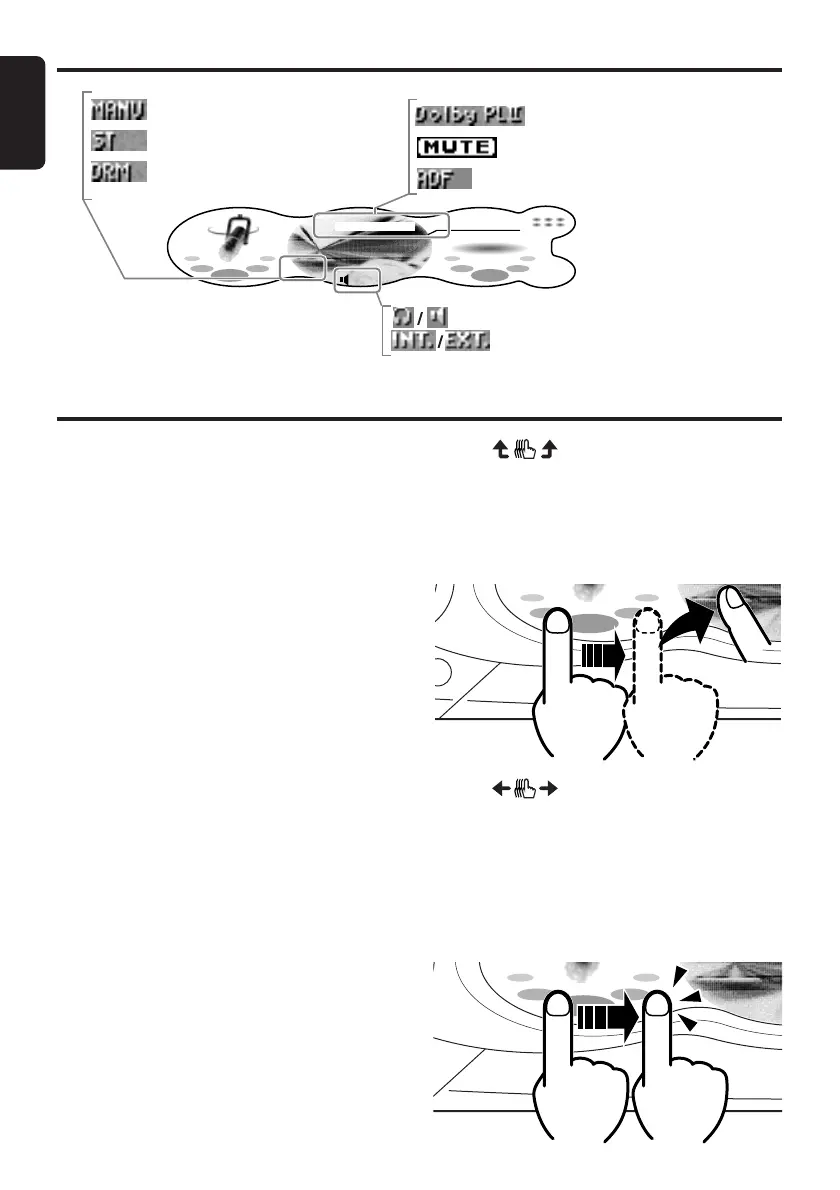

98.10MHz
98.10MHz
: Manual indication
: Stereo indication
: DRM (Digital Rights
Manegement) indication
: Dolby PLII indication
: Mute indication
: ADF (Anti Distortion Filter)
indication
: 2-ZONE indication

Clarion DXZ946MP Specifications

FM Tuner

frequency range	87.0 MHz to 108.0 MHz
usable sensitivity	9 dBf
50dB quieting sensitivity	15 dBf
alternate channel selectivity	70 dB
stereo separation (1 kHz)	35 dB
frequency response (±3 dB)	30 Hz to 15 kHz

AM Tuner

frequency range	531 kHz to 1629 kHz
usable sensitivity	25 µV

CD Player

system	Compact disc digital audio system
usable discs	Compact disc
frequency response (±1 dB)	5 Hz to 20 kHz
signal to noise ratio (1 kHz)	100 dB
dynamic range (1 kHz)	96 dB
harmonic distortion	0.01%

Audio

maximum power output	212 W (53 W × 4 ch)
continuous average power output	18 W × 4, into 4 Ω, 20 Hz to 20 kHz, 1%THD
bass control action (50 Hz)	±12 dB
treble control action (12.5 kHz)	±12 dB
line output level (CD 1 kHz)	4 V/F 2ch + 4V/R 2ch

General

power supply voltage	14.4 V DC (10.8 to 15.6 V allowable)
current consumption	Less than 15 A, 3A
speaker impedance	4 Ω (4 Ω to 8 Ω allowable)
weight / source unit	1.7 kg (3.74 lb.)
weight / remote control unit	80 g (2.82 oz.)
dimensions / source unit	178 (Width) × 50 (Height) × 155 (Depth) mm
dimensions / remote control unit	44 (Width) × 110 (Height) × 27 (Depth) mm
