Clarion DXZ946MP User Manual

DXZ946MP 5
English

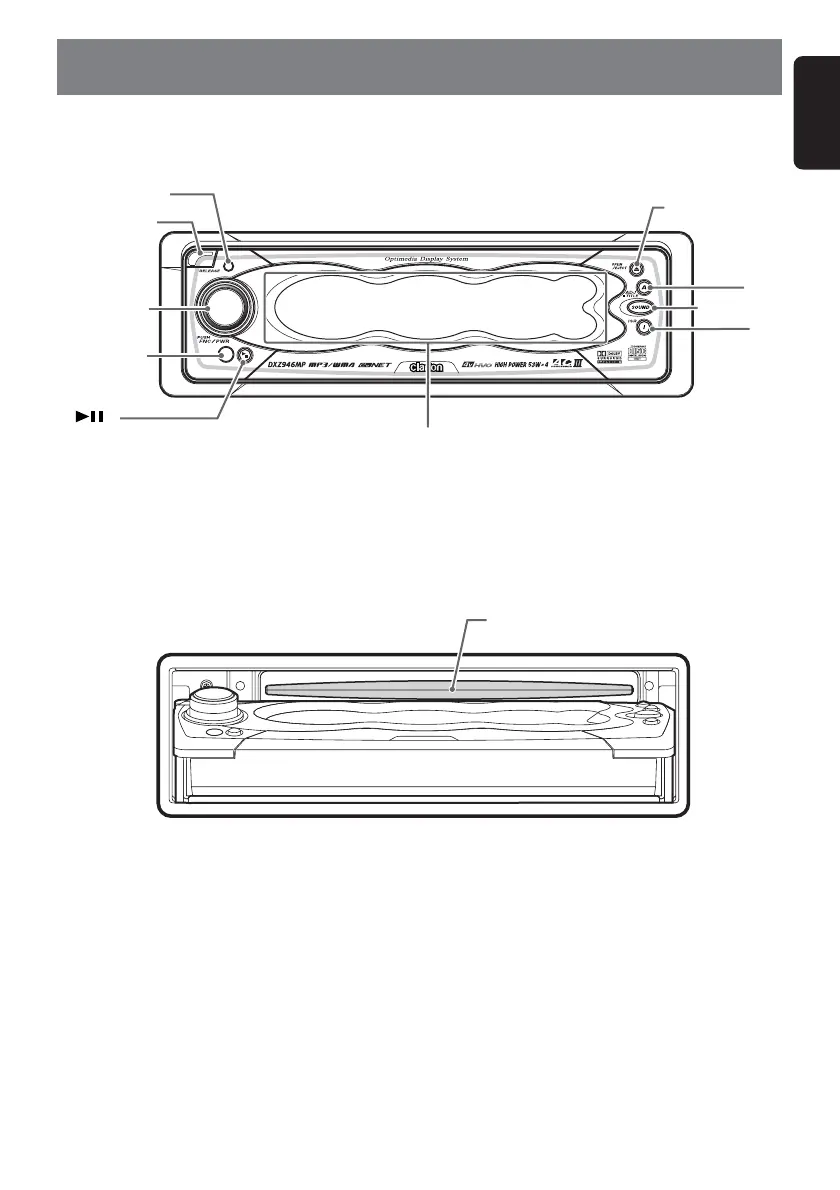

3. CONTROLS
[I]
[SOUND
]
[
A]
[
RELEASE
]
[
ROTARY
]
[Q]
[ ]
[
CD SLOT
]
Source unit
With the SLOPING CONSOLE opened
Photo Sensor
IR-Receiver
Display

Clarion DXZ946MP Specifications

FM Tuner

frequency range	87.0 MHz to 108.0 MHz
usable sensitivity	9 dBf
50dB quieting sensitivity	15 dBf
alternate channel selectivity	70 dB
stereo separation (1 kHz)	35 dB
frequency response (±3 dB)	30 Hz to 15 kHz

AM Tuner

frequency range	531 kHz to 1629 kHz
usable sensitivity	25 µV

CD Player

system	Compact disc digital audio system
usable discs	Compact disc
frequency response (±1 dB)	5 Hz to 20 kHz
signal to noise ratio (1 kHz)	100 dB
dynamic range (1 kHz)	96 dB
harmonic distortion	0.01%

Audio

maximum power output	212 W (53 W × 4 ch)
continuous average power output	18 W × 4, into 4 Ω, 20 Hz to 20 kHz, 1%THD
bass control action (50 Hz)	±12 dB
treble control action (12.5 kHz)	±12 dB
line output level (CD 1 kHz)	4 V/F 2ch + 4V/R 2ch

General

power supply voltage	14.4 V DC (10.8 to 15.6 V allowable)
current consumption	Less than 15 A, 3A
speaker impedance	4 Ω (4 Ω to 8 Ω allowable)
weight / source unit	1.7 kg (3.74 lb.)
weight / remote control unit	80 g (2.82 oz.)
dimensions / source unit	178 (Width) × 50 (Height) × 155 (Depth) mm
dimensions / remote control unit	44 (Width) × 110 (Height) × 27 (Depth) mm
