Clarion DXZ946MP User Manual

12 DXZ946MP
English
CAUTION
Be sure to lower the volume before
switching the unit off or the ignition key. The
unit remembers its last volume setting. If
you switch the power OFF with the volume
up, when you switch the power back ON, the
sudden loud volume may hurt your hearing
and damage the unit.
Turning ON/OFF the power
Turning on
Note:
• Be careful when using this unit for a long time
without running the engine. If you drain the car’s
battery too far, you may not be able to start the
engine and this can reduce the service life of the
battery.
1. Press the [ROTARY] knob.
The mode that was previously active is
displayed.
System check
The first time that this unit is turned on after wire
connections are completed, this unit checks
which equipment is connected. (This is called
the “system check.”) When the power is turned
ON, and “System Check” is displayed, follow
the procedure below to perform the system
check.
1. When “System Check” appears on the
display, press the [ROTARY] knob.
The system check starts.
When the system check is complete,
“Completed” appears on the display.
2. Press the [ROTARY] knob again.
The main display for the radio mode
appears.
7. OPERATIONS
Basic Operations

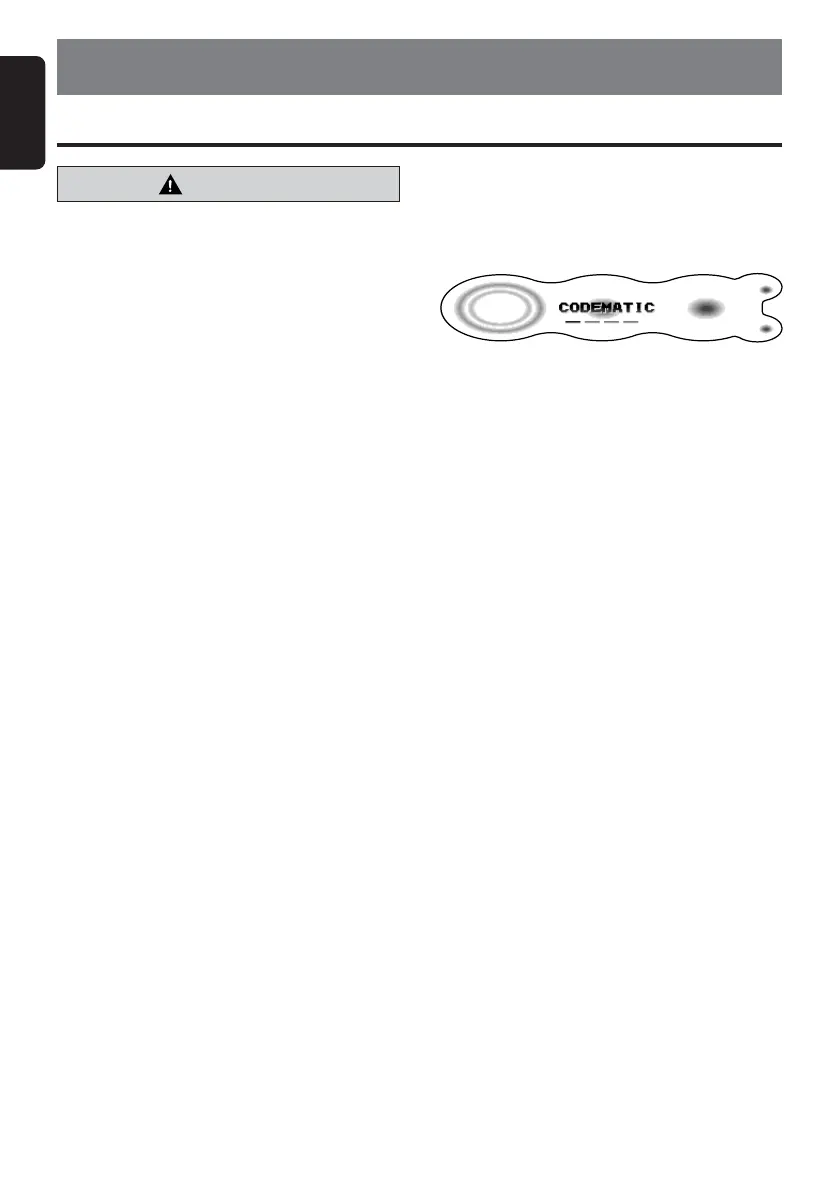

CODEMATIC function
When “CODEMATIC” is set to “ON”, and the
power is turned ON with the DCP attached, the
Touch Code display appears. Touch the display
in the order that was set in the adjust mode.
For details on the CODEMATIC function, see
“Using the security function” (cf. page 44).
Turning off
1. Hold down the [ROTARY] knob for 1 second
or longer.
∗ If the power is turned OFF with the clock
displayed, the clock will stay displayed
even after the power is turned OFF.
Selecting a mode
1. Press the [ROTARY] knob to change the
operation mode.
2. Each time you press the [ROTARY] knob,
the operation mode changes in the following
order:
Radio mode ➜ CD/MP3 mode ➜ CD
changer mode ➜ DVD changer mode ➜
TV mode ➜ AUX mode ➜ Radio mode...
∗ External equipment not connected with
CeNET is not displayed.
Adjusting the volume
1. Turning the [ROTARY] knob clockwise
increases the volume; turning it
counterclockwise decreases the volume.
∗ The volume level is from 0 (minimum) to
33 (maximum).

Clarion DXZ946MP Specifications

FM Tuner

frequency range	87.0 MHz to 108.0 MHz
usable sensitivity	9 dBf
50dB quieting sensitivity	15 dBf
alternate channel selectivity	70 dB
stereo separation (1 kHz)	35 dB
frequency response (±3 dB)	30 Hz to 15 kHz

AM Tuner

frequency range	531 kHz to 1629 kHz
usable sensitivity	25 µV

CD Player

system	Compact disc digital audio system
usable discs	Compact disc
frequency response (±1 dB)	5 Hz to 20 kHz
signal to noise ratio (1 kHz)	100 dB
dynamic range (1 kHz)	96 dB
harmonic distortion	0.01%

Audio

maximum power output	212 W (53 W × 4 ch)
continuous average power output	18 W × 4, into 4 Ω, 20 Hz to 20 kHz, 1%THD
bass control action (50 Hz)	±12 dB
treble control action (12.5 kHz)	±12 dB
line output level (CD 1 kHz)	4 V/F 2ch + 4V/R 2ch

General

power supply voltage	14.4 V DC (10.8 to 15.6 V allowable)
current consumption	Less than 15 A, 3A
speaker impedance	4 Ω (4 Ω to 8 Ω allowable)
weight / source unit	1.7 kg (3.74 lb.)
weight / remote control unit	80 g (2.82 oz.)
dimensions / source unit	178 (Width) × 50 (Height) × 155 (Depth) mm
dimensions / remote control unit	44 (Width) × 110 (Height) × 27 (Depth) mm
