Clarion EN-1286S-A User Manual

EN-1286S-A
- 6 -
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY

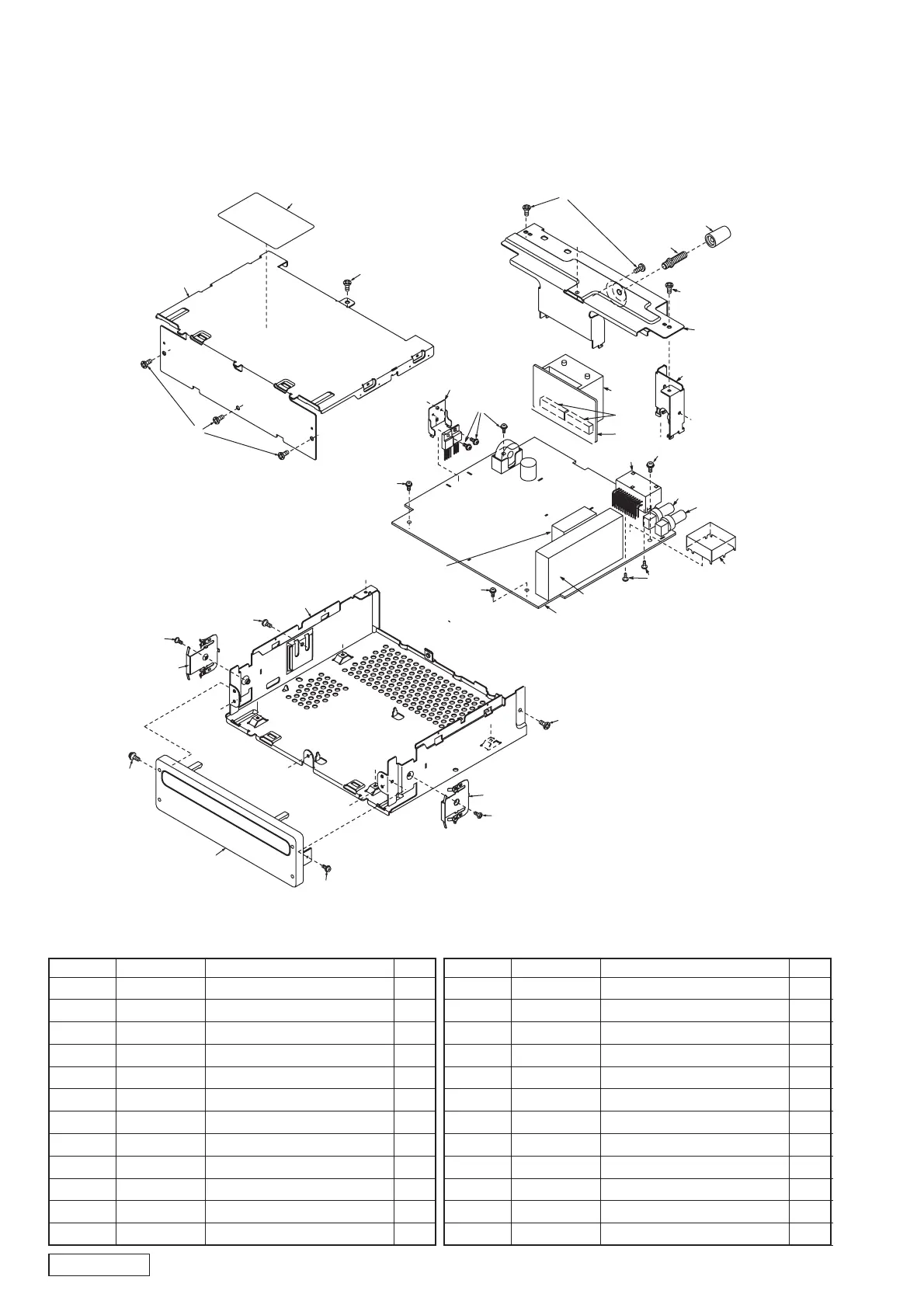

EXPLODED VIEW / PARTS LIST
1 370-6114-10 ESCUTCHEON 1
2 ----------- SUB PWB 1
3 311-1928-00 LOWER CASE 1
4 310-1838-00 UPPER CASE 1
5 750-6771-00 SIDE SPRING 2
6 345-5403-00 REAR HOLDER 1
7 276-0258-00 SETPLATE 1
8 716-0878-50 SCREW(M2.6x5) 8
9 714-2606-8B MACHINE SCREW(M2.6x6) 9
10 714-3006-4B MACHINE SCREW(M3x6) 2
11 074-1159-01 OUTLET SOCKET(ISO 36P) 1
12 076-0324-12 PLUG 2
13 ----------- MAIN PWB 1
14 074-1302-24 OUTLET SOCKET(TH24) 1
15 331-3835-00 TR HOLDER 1
16 092-2229-00 ANT-RECEPT(W) 1
17 092-2230-00 ANT-RECEPT(Y) 1
18 331-4265-00 ANT-HOLDER 1
19 880-2026B TUNER PACK 1
20 880-1761A TMC TUNER PACK 1
21 331-4267-00 SHIELD CASE 1
22 307-0726-00 REAR-CVR 1
23 778-3006-00 TAP-SCREW(M3x5) 2
24 716-3573-00 REAR BOLT(M5) 1
B
A
C
D
A
E
E
F
G
H
I
11
2
13
14
15
17
16
18
19
22
9
20
23
12
24
J
J
21
8
8
9
9
5
10
5
9
3
1
8
8
8
8
F
I
H
G
4
9
9
7
6
10

Clarion EN-1286S-A Specifications

General

Brand	Clarion
Model	EN-1286S-A
Category	Car Receiver
Language	English
