When detaching the control panel, store it in the
DCP (DETACHABLE CONTROL PANEL) case
to prevent scratches.
Removing the DCP
1. Press and hold the [SRC] button (1 sec.) to
switch off power.
2. Press the [RELEASE] button.
∗ DCP is unlocked.
3. Remove DCP.
Attaching the DCP
1. Insert the right end of DCP into main unit.
2. Press left end of DCP into main unit.
Storing the DCP in the DCP Case
Hold the DCP, in the orientation as shown in the
figure below, and put it into the supplied DCP
case. (Ensure the DCP is in the correct
orientation.)
CAUTION
• After removal, be careful not to drop the
DCP or subject it to strong impacts, to
prevent damage.
• The connector for the main unit and DCP
is extremely important. Be careful not to
damage it by pressing with fingernails or
sharp objects.
Note:
• If the DCP is dirty, wipe off with a soft, dry cloth
only.

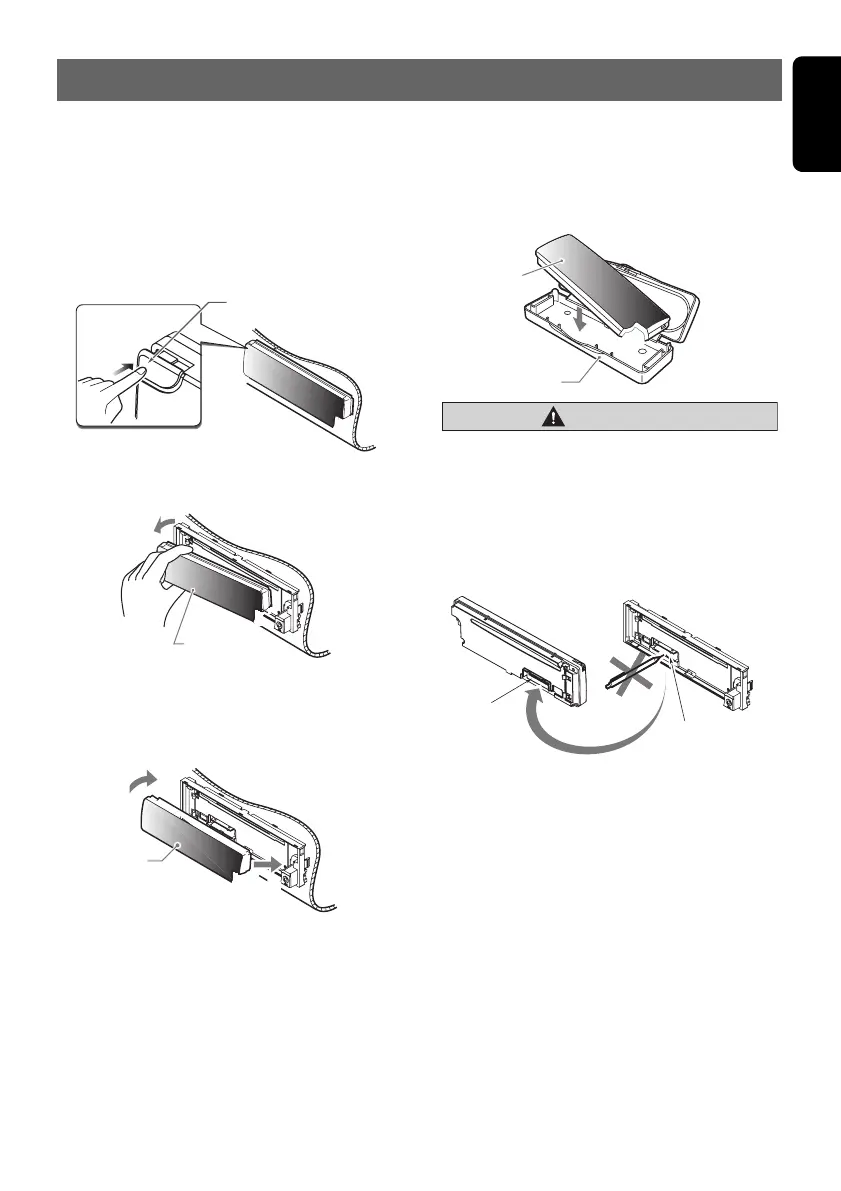

4. DCP
(DETACHABLE CONTROL PANEL)
[RELEASE] button
DCP
1.
DCP
2.
DCP
DCP case
Main Unit Front
Main unit connector
DCP Rear Panel
DCP
connector
