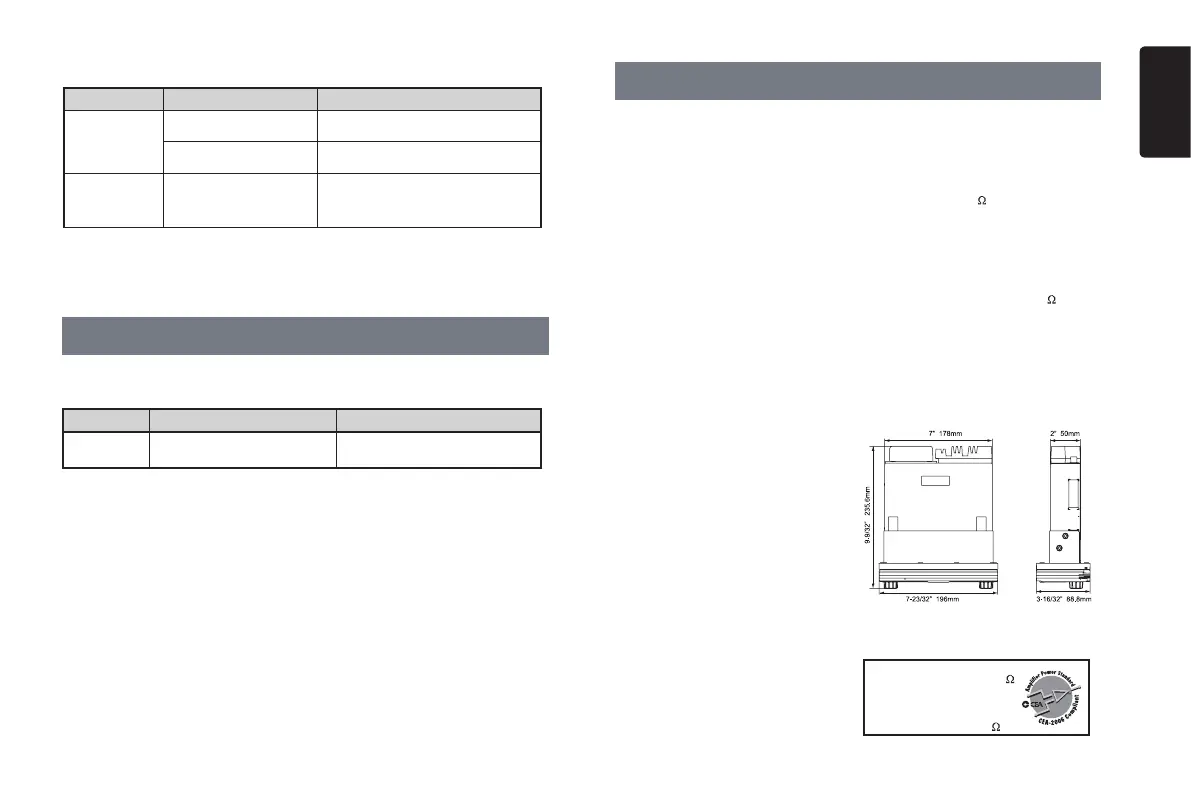

8. SPECIFICATIONS
FM Tuner
Frequency Range:
North America: 87.9 - 107.9MHz
Europe: 87.5 - 108MHz
Asia & Australia: 87.5 - 108MHz
Usable Sensitivity: 8 dBμV
Alternate Channel Selectivity: 60 dB
Stereo Separation (1 kHz): 30 dB
Frequency Response (±3 dB):
30 Hz - 15 kHz
AM Tuner
Frequency Range:
North America: 530 kHz - 1710 kHz
Europe: 531 kHz - 1602 kHz
Asia & Australia: 531 kHz - 1629 kHz
Usable Sensitivity: 28 dBμV
WB Tuner
Frequency Range: 162.400 - 162.550 MHz
Step length: 25 kHz
MP3/WMA mode
MP3 sampling rate: 8 kHz - 48 kHz
MP3 bit rate: 8 kbps - 320 kbps / VBR
WMA bit rate: 8 kbps - 320 kbps
Logical format: ISO9660 level 1,2
Joliet le system
USB
Specication: USB 1.1
USB Power Supply: DC 5V, 2.1 Amps
Playable audio format:
MP3 (.mp3): MPEG 1/2/Audio Layer-3
WMA (.wma): Ver 7/8/9.1/9.2
Bluetooth
Specication: Bluetooth Ver. 2.1+EDR
Prole:
A2DP (Advanced Audio Distribution Prole)
AVRCP (AV Remote Control Prole)
Send/Receive Sensitivity: Class 2
Audio Amplifier
Maximum Power Output: 180 W (45 W × 4 ch)
Bass Control Action (100 Hz): +6 dB, –6 dB
Treble Control Action (10 kHz): +6 dB, –6 dB
Line Output Level (USB 1 kHz): 4 V
Input
Audio input sensitivity:
High: 320mV (at 1V output)
Mid: 650mV (at 1V output)
Low: 1.3V (at 1V output)
(input impedance 10 k
or greater)
Aux-in level: ≤2V
General
Power supply voltage:
14.4VDC (10.8 - 15.6V allowable),
negative ground
Pre-Amp output voltage:
4.0V (USB play mode: 1kHz, 0dB, 10k
load)
Fuse: 15A
Dimensions of the Main Unit:
196mm Width × 88.8mm Height × 235.6mm Depth
7-23/32 Width × 3-16/32 Height × 9-9/32 Depth
Weight of the Main Unit: 1.94 lb. (0.88 kg)
Dimensions of the Remote Control unit:
43mm Width × 11mm Height × 113mm Depth
1-2/3 Width × 2/5 Height × 4-2/5 Depth
Weight of the Remote Control Unit:
1.16oz. (36g) (including battery)
Note:
• Specifications and design are subject to
change without notice for further improvement.
Power Output:
18W RMS x 4 Channels at 4
and 1% THD+N
Signal to Noise Ratio:
94dBA (reference: 1W into 4
)
7. ERROR DISPLAYS
Display Cause Measure
ERROR 2 Does not support iPod, iPhone & iPad.
Change another device.
* The head unit will return to RADIO mode.
If an error occurs, one of the following errors is displayed.
Take the measures described below to solve the problem.
If an error display other than the ones described above appears, press the [RESET] button. If
the problem persists, turn off the power and consult your store of purchase.
* When the [RESET] button is pressed, preset radio stations, titles, etc. are stored in memory
are cleared.
Bluetooth
Problem Cause Measure
Cannot pair the
Bluetooth enabled
device with the boat
audio system.
The device does not support the
proles required for the system.
Use another device to connect.
The Bluetooth function of the
device is not enabled.
Refer to the user manual of the device for how to
enable the function.
The audio quality is
poor after connection
with a Bluetooth-
enabled device.
The internal microphone gain is
not set correctly.
Adjust the gain of the internal microphone in
System Setup.
