Clarion NX602 Owner's Manual & Installation Manual

41
English
NX602
FM Tuner
Frequency range: 87.9-107.9MHz
Usable sensitivity: 8dBμ
Frequency response: 30Hz-15kHz
Stereo separation: 30dB(1kHz)
Signal/noise ratio: >55dB
AM Tuner
Frequency range: 530-1710kHz
Usable sensitivity (S/N=20dB): 30dBμ
Disc Player
System: Disc digital audio system
Frequency response: 20Hz-20kHz
Signal/noise ratio: >80dB
Total harmonic distortion: Less than 0.1% (1kHz)
Channel separation: >60dB
Video signal output: NTSC/PAL
Video output level: 1±0.2V
Video signal input: NTSC/PAL
MP3/WMA mode
MP3 sampling rate: 8 kHz to 48 kHz
MP3 bit rate: 8 kbps to 320 kbps / VBR
WMA bit rate: 8 kbps to 320 kbps
Logical format: ISO9660 level 1,2
Joliet or Romeo le system
USB
Specication: USB 1.0/2.0
Playable audio format:
MP3(.mp3): MPEG 1/2/Audio Layer-3
WMA(.wma): Ver 7/8/9.1/9.2
Bluetooth
Specication: Bluetooth Ver. 2.0+EDR
Prole: HFP (Hands-free Prole)
A2DP (Advanced Audio Distribution Prole)
AVRCP (AV Remote Control Prole)
PBAP (Phone Book Access Prole)
Send/Receive Sensitivity: Class 2
Audio Amplier
Maximum power output:
200W (50W x 4)
Speaker impedance: 4
(4 to 8 allowable)
19. SPECIFICATIONS
6.2 Inch TFT LCD
Display resolution (dot): 800RGB (H) x 480(V)
Active area (mm): 137.52(H) x 77.232 (V)
Screen size (inch): 6.2 (Diagonal)
Dot pitch (mm): 0.1719(H) x 0.1609(V)
Brightness: 400 cd/m2
Input
Audio input sensitivity:
High: 320mV (at 1V output)
Mid: 650mV (at 1V output)
Low: 1.3V (at 1V output)
(input impedance 10 k or greater)
Aux-in level: ≤2V
General
Power supply voltage:
14.4VDC (10.8 to 15.6V allowable),
negative ground
Pre-Amp output voltage:
4.0V (CD play mode: 1kHz, 0dB, 10k load,
volume max.)
Fuse: 15A

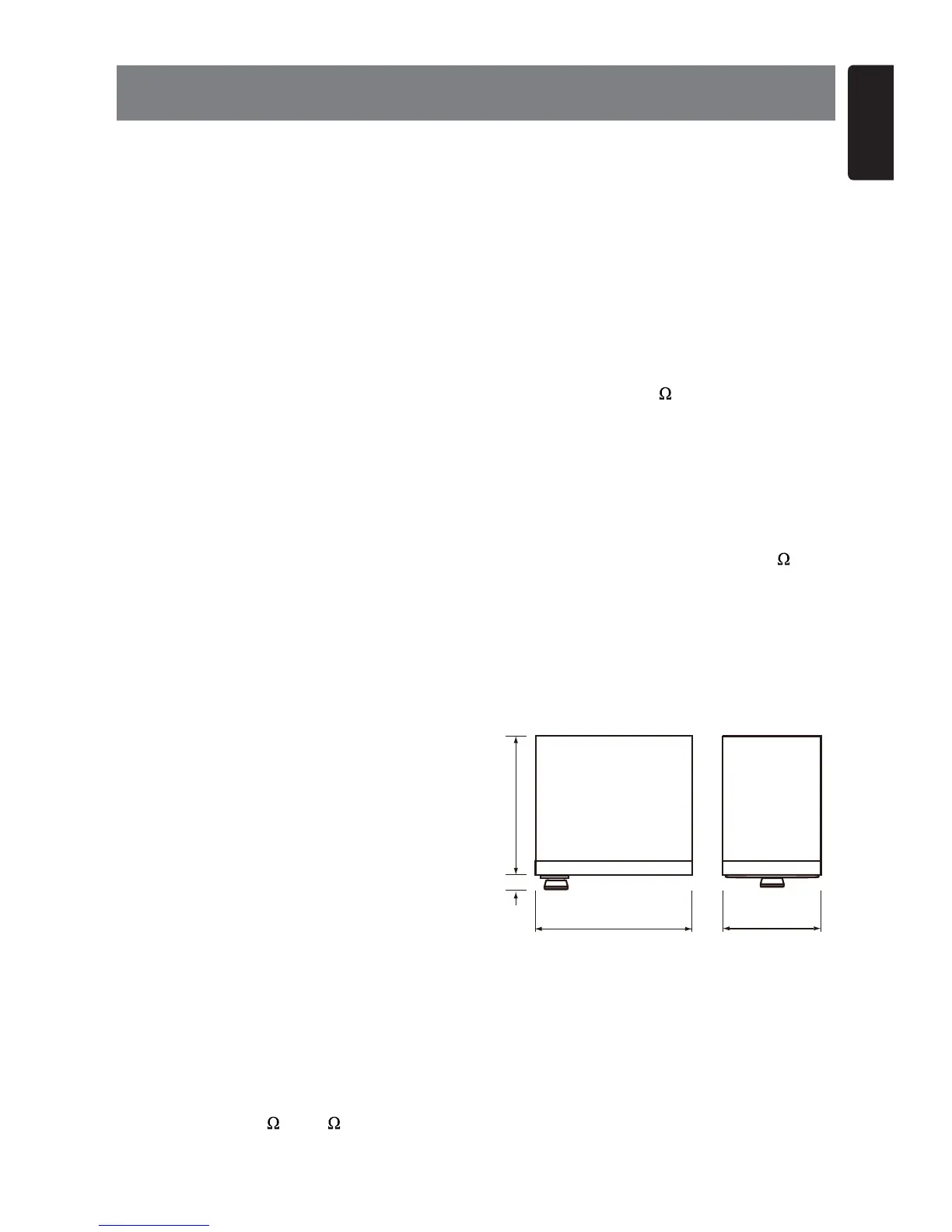

Dimensions of the Main Unit:
178mm Width × 100mm Height × 163mm Depth
Weight of the Main Unit: 1.90kg
Dimensions of the Remote Control unit:
49mm Width × 12mm Height × 139mm Depth
Weight of the Remote Control Unit:
55g (including battery)
Notes:
• Specifications and design are subject
to change without notice for further
improvement.
178mm
100mm
13mm
163mm
