Clarion NX700 Quick Start Guide
4
of 1
of 1 rating
180 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
66
NX700
English
INSTALLATION
MANUAL

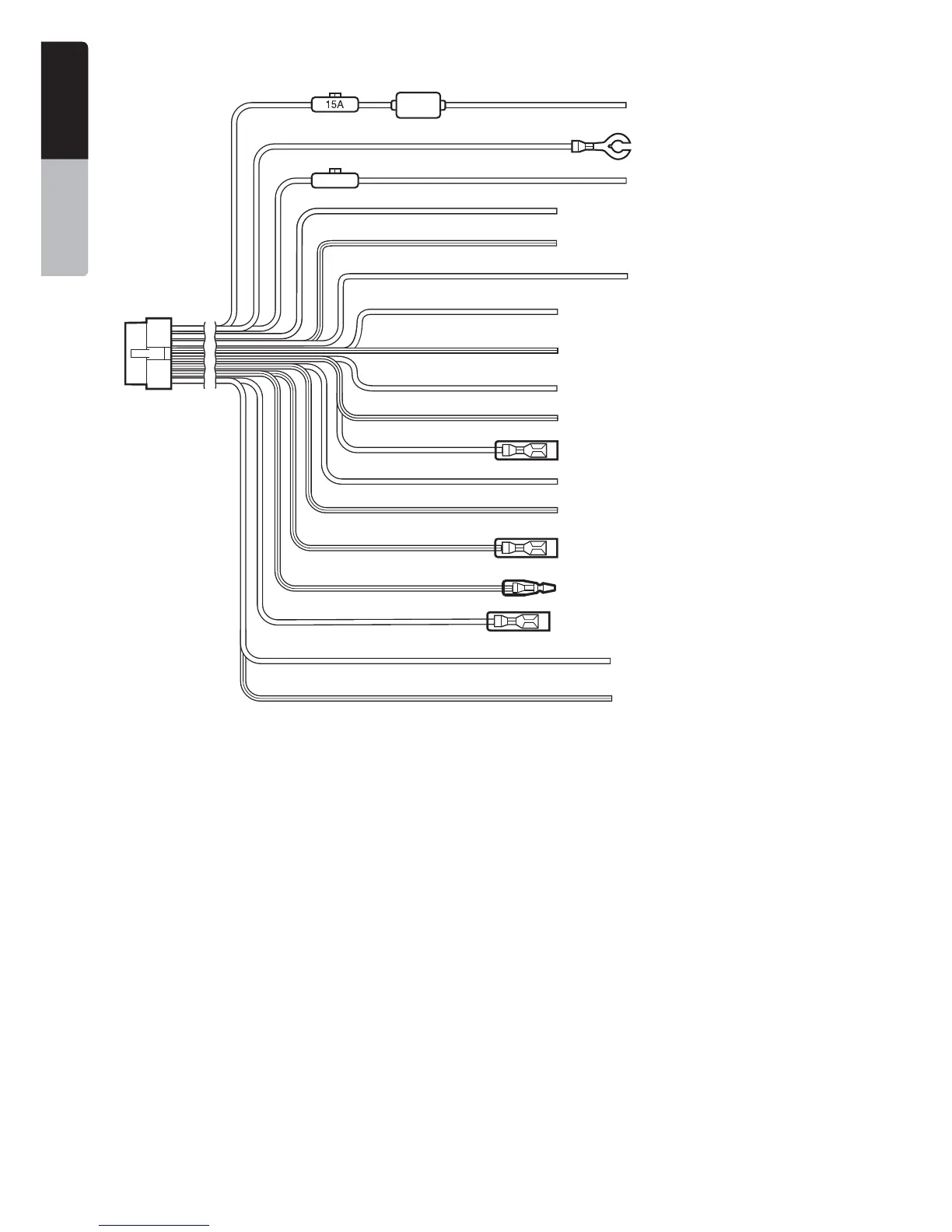

See next page for how to connect the parking brake cord.
3A
Yellow
Black
+12V ma
i
n power
Ground
Rear r
i
ght
+
Rear r
i
ght
-
+12V accessory
Front r
i
ght
+
Front r
i
ght
-
Front left
+
Front left
-
Rear left
+
Rear left
-
Ampl
i
f
i
er turn-on cord
Illum
i
nat
i
on
Auto antenna
Park
i
ng brake cord
Reverse gear cord
Purple
Purple/Black
Red
Gray
Gray/Bla
ck
Wh
i
te
Wh
i
te/Black
Green
Green/Black
Blue/Wh
i
te
Orange/Wh
i
te
Blue
Grass-gree
n
Purple/wh
i
te
Brown
No connect
i
on
Yellow
CeNET bus backup
71
73
Table of Contents
Table of Contents
7
Features
8
Expanding Systems
8
Playable Discs
9
DVD Video Features
9
Precautions
10
DVD Menu
10
Operation Panel/Generalities
11
Cleaning
11
About the Registered Marks, Etc
12
Controls
12
Functions of Buttons
12
Outline of Button and Touchkey Operation
14
Remote Control Unit
19
Basic Operations
20
Turning on and off the Power
20
Adjusting the Volume
21
Opening the Operation Panel and Adjusting the Angle
21
Turning the Audio off
22
Turning the Monitor off
23
Displaying the Clock Screen
23
Setting/Ejecting a Disc
23
Connecting/Disconnecting an USB Media Device
24
Selecting a Media Source
26
2-Zone Function
26
Source Operations
27
Radio Operations
27
DVD Video Operations
29
Audio CD Operations
35
MP3/WMA/AAC Operations
36
DIVX Operations
39
Source Operations (Accessories)
42
Satellite Radio Operations
42
Ipod Operations
45
USB Memory Operations
48
Navigation System Operations
49
Bluetooth Telephone Operations (Tel Mode)
50
AUX Operations
50
System Settings
51
Audio Settings
51
General Settings
54
Adjusting the Monitor
57
Troubleshooting
58
Error Displays
60
Specifications
62
Safety Precautions
63
Installation and Wire Connection Manual
63
Installation Notes
64
Package Contents
64
Installing the Gps Antenna
69
Phone Book
80
Receiving a Call
83
Regulatory Information
87
Table of Contents
91
1 Warnings and Safety Information
94
2 Getting Started with Clarion Mobile Map
95
Simple and Advanced Modes
97
Buttons and Other Controls on the Screen
98
Using Keyboards
99
Using the Map
100
Checking the Details of a Map Location
100
Manipulating the Map
101
Lane Information and Signposts
103
Status Information and Hidden Controls on the Map
104
More Information
106
Using the Cursor (the Selected Map Location)
107
Clarion Mobile Map Concepts
108
Smart Zoom
108
Current GPS Position and Lock-On-Road
109
Position Markers
109
Returning to Normal Navigation
109
Original Position in the Cursor Menu
110
Selected Location (Cursor)
110
Color Scheme in Tunnels
111
Daytime and Night Color Profiles
111
Route Calculation and Recalculation
111
Itinerary
112
Route Demonstration
113
Track Logs
113
POI (Points of Interest)
114
Road Safety Cameras
114
Camera Types
115
Camera Directions
116
Speed Limit Warning
117
3 Navigating with Clarion Mobile Map
118
Selecting the Destination of a Route
118
Selecting the Cursor as the Destination
118
Entering an Address
119
Entering an Address or Part of an Address
119
Entering an Address if House Numbering Is Restarted
121
Entering an Address Without Knowing the District/Suburb
122
Selecting an Intersection as the Destination
123
Selecting a City Center as the Destination
124
Entering an Address with a ZIP Code
125
Tips on Entering Addresses Quickly
126
Selecting the Destination from the Pois
127
Selecting the Destination from Your Favorites
127
Selecting the Destination with Saved POI Search Criteria
128
Selecting the Destination by Entering Its Coordinates
129
Selecting the Destination from the History
129
Creating a Multi-Point Route (Inserting a Via Point)
130
Creating a Multi-Point Route (Appending a New Destination)
131
Editing the Route
131
Viewing the Entire Route on the Map (Fit-To-Screen)
132
Watching the Simulation of the Route
132
Enabling Safety Mode
133
Pausing the Active Route
133
Deleting the Next Via Point from the Route
133
Deleting the Active Route
134
Using Track Logs
134
Saving the Active Route
136
Loading a Saved Route
136
4 Reference Guide (Advanced Mode)
137
Map Screen
138
GPS Position Quality and Vehicle Type Indicator
141
Icons on the Map
141
Phone Call in Progress
142
Status Indicator Strip
142
Next Two Route Events (Turn Preview Fields)
143
Elements of the Active Route
144
Object Types
144
Objects on the Map
144
Streets and Roads
144
Cursor Menu
146
Detour Menu
146
Position Menu
148
Route Information Screen
149
Trip Information Screen
150
Trip Computer Screen
152
Quick Menu
153
GPS Data Screen
154
Find Menu
155
Route Menu
156
Manage Menu
157
Manage Saved Routes
157
Manage History
158
Manage Track Logs
158
Manage Favorites
159
Manage Pois
160
Manage Saved Search Criteria
161
User Data Management
162
Settings Menu
163
Map Screen Settings
164
You Can Fine-Tune the Appearance and Content of the Map
164
Sound Settings
165
You Can Adjust the Sounds of Clarion Mobile Map
165
Route Planning Options
166
These Settings Determine How Routes will be Calculated
166
Regional Settings
168
These Settings Allow You to Customize the Application for Your
168
Navigation Settings
169
You Can Control How Clarion Mobile Map Behaves During
169
Warning Settings
170
You Can Enable some Useful Warnings, and Disable the Touch
170
Device Settings
171
Menu Settings
171
You Can Modify the Look and Behavior of the Menu Screens
171
You Can Fine-Tune Device Related Settings in this Menu
171
Track Log Settings
172
You Can Set up Automatic Track Log Saving and Fine-Tune
172
5 Glossary
173
6 End User License Agreement
175
Other manuals for Clarion NX700
Owner's Manual & Installation Manual
177 pages
User Manual
13 pages
Service Manual
50 pages
4
Based on 1 rating
Ask a question
