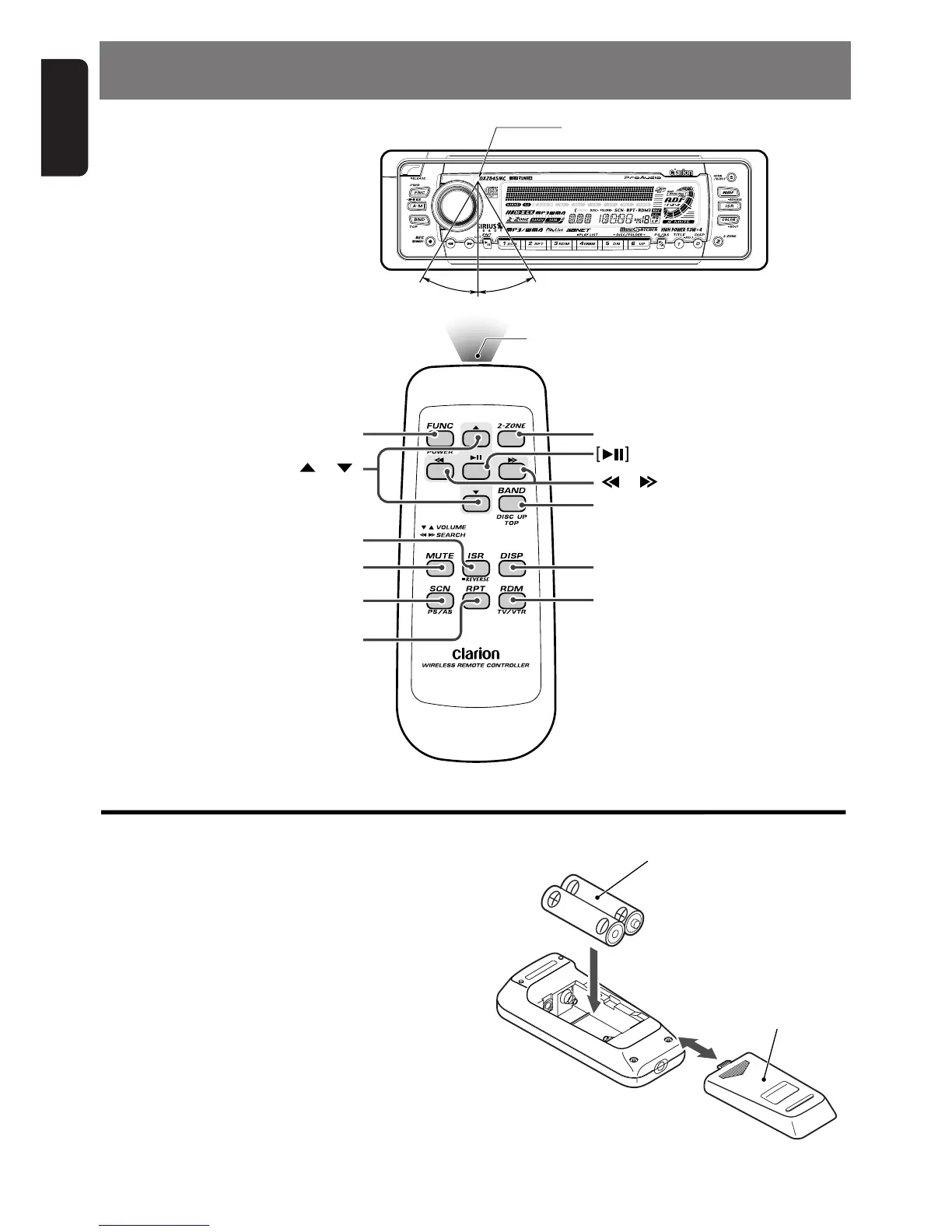

6. REMOTE CONTROL
[
FUNC
]
[ ],[ ]
[
ISR
]
[
MUTE
]
[
SCN
]
[
RPT
]
[ ],[ ]
[
BAND
]
[
DISP
]
[
RDM
]
[
2-ZONE
]
Rear side
AA (SUM-3, IECR-6/1.5V)
Batteries
Rear cover
Remote control unit
Inserting the Batteries
1.Turn the remote control unit over, then slide the
rear cover in the direction of the arrow.
2.Insert the AA (SUM-3, IECR-6/1.5V) batteries
that came with the remote control unit facing in
the directions shown in the figure, then close the
rear cover.
Notes:
Using batteries improperly can cause them to
explode. Take note of the following points:
• When replacing batteries, replace both batteries
with new ones.
• Do not short-circuit, disassemble or heat batteries.
• Do not dispose of batteries into fire or flames.
• Dispose of spent batteries properly.
Receiver for remote control unit
Operating range: 30˚ in all directions
Signal transmitter

Clarion ProAudio DXZ845MC Specifications

FM Tuner

frequency range	87.9 MHz to 107.9 MHz
usable sensitivity	9 dBf
50dB quieting sensitivity	15 dBf

AM Tuner

frequency range	530 kHz to 1710 kHz
usable sensitivity	25 µV

CD Player

frequency response	5 Hz to 20 kHz
signal to noise ratio	100 dB
dynamic range	95 dB

Audio

maximum power output	212 W (53 W ✕ 4 ch)
continuous average power output	18 W ✕ 4, into 4 Ω, 20 Hz to 20 kHz, 1%THD
line output level	1.8 V

General

power supply voltage	14.4 V DC (10.8 to 15.6 V allowable)
current consumption	Less than 15 A, 3A
speaker impedance	4 Ω (4 Ω to 8 Ω allowable)

Weight and Dimensions

weight source unit	3.52 lb. (1.6 kg)
weight remote control unit	2.82 oz. (80 g)
dimensions source unit	7" (Width) ✕ 2" (Height) ✕ 6-1/8" (Depth)
dimensions remote control unit	1-3/4" (Width) ✕ 4-5/16" (Height) ✕ 1-1/8" (Depth)
