Clarion ProAudio DXZ845MC User Manual

DXZ845MC 9
English
5. DCP
CAUTION
CAUTION
The control panel can be detached to prevent
theft. When detaching the control panel, store it
in the DCP (DETACHABLE CONTROL PANEL)
case to prevent scratches.
We recommend taking the DCP with you when
leaving the car.

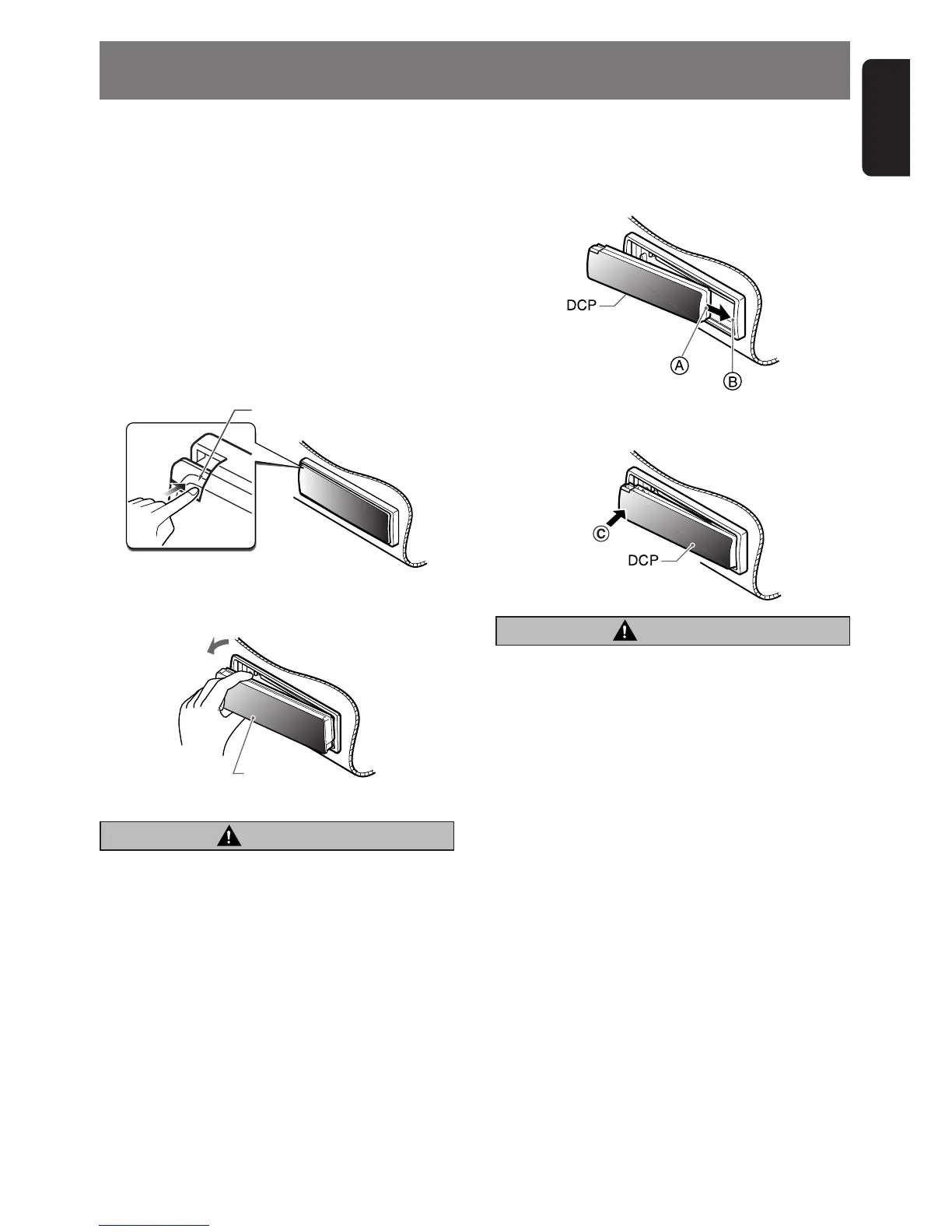

Removing the DCP
1. With the SLOPING CONSOLE closed, turn
off the power.
2. Press the [RELEASE] button deeply to open
the DCP.
[
RELEASE
]
button
3. Pull the DCP toward you and remove it.
DCP
Attaching the DCP
1. Insert the DCP so that the A section on the
right side of the DCP catches on the hook B
on the unit.
2. Press the left side C of the DCP carefully to
fit it in place.
•Always close the SLOPING CONSOLE be-
fore removing the DCP.
• If you remove the DCP with the SLOPING
CONSOLE open, the sloping console
closes immediately. Be careful not to get
your fingers caught.
• The DCP can easily be damaged by
shocks. After removing it, be careful not to
drop it or subject it to strong shocks.
• If the [RELEASE] button is pressed and the
DCP is not locked into place, it may fall out
from vibration of the car. This can break
the DCP, so after removing it, either install
it on the unit or put it in its DCP case.
• The connector connecting the unit and the
DCP is an extremely important part. Be
careful not to damage it by pressing on it
with fingernails, screwdrivers, etc.
Note:
• If the DCP is dirty, wipe off the dirt with a soft, dry
cloth only.

Clarion ProAudio DXZ845MC Specifications

FM Tuner

frequency range	87.9 MHz to 107.9 MHz
usable sensitivity	9 dBf
50dB quieting sensitivity	15 dBf

AM Tuner

frequency range	530 kHz to 1710 kHz
usable sensitivity	25 µV

CD Player

frequency response	5 Hz to 20 kHz
signal to noise ratio	100 dB
dynamic range	95 dB

Audio

maximum power output	212 W (53 W ✕ 4 ch)
continuous average power output	18 W ✕ 4, into 4 Ω, 20 Hz to 20 kHz, 1%THD
line output level	1.8 V

General

power supply voltage	14.4 V DC (10.8 to 15.6 V allowable)
current consumption	Less than 15 A, 3A
speaker impedance	4 Ω (4 Ω to 8 Ω allowable)

Weight and Dimensions

weight source unit	3.52 lb. (1.6 kg)
weight remote control unit	2.82 oz. (80 g)
dimensions source unit	7" (Width) ✕ 2" (Height) ✕ 6-1/8" (Depth)
dimensions remote control unit	1-3/4" (Width) ✕ 4-5/16" (Height) ✕ 1-1/8" (Depth)
