] button
• Switch the TV picture mode or VTR (external) picture
mode.
[a], [d] buttons
• Select a station.
[BND] button
• Switch the band.
• When the button is pressed and held, switch seek
tuning or manual mode.
● When the Sirius Satellite
Radio is connected
∗ For details, refer to the Owner’s Manual provided
with the Sirius Satellite Radio.
[P/A] button
•Performs category scan while in the SIRIUS mode.
When the button is pressed and held, preset scan is
performed.
[DIRECT] buttons
• Stores a station into memory or recall it directly while
in the SIRIUS mode.
[ ] button
• Select a category.
[a], [d] button
• Press the button to select a station.
[FNC] button
• Press the button to switch the operation mode among
the SIRIUS mode, etc.
] button
• Play or pause a CD while in the CD/MP3, MC mode.
• Press and hold the [ ] button for 2 seconds or
longer after selecting the ERASE mode, and the track
is erased.
[a], [d] buttons
• Select a station while in the radio mode or select a
track when listening to a CD/MP3, MC mode. These
buttons are used to make various settings.
• Press and hold the button for 1 second or longer to
switch the fast-forward/fast-backward.
[REC] button
• Press the button during CD playback, and the track
currently being played back is recorded onto MC.
(TRACK REC)
• Press and hold the button for 2 seconds or longer
during CD playback, and all tracks are recorded onto
MC. (DISC REC)
[BND] button
• Switch the band, or seek tuning or manual tuning
while in the radio mode.
• Play a first track while in the CD/MP3, MC mode.
Major Button Operations When External Equipment is
Connected to This Unit

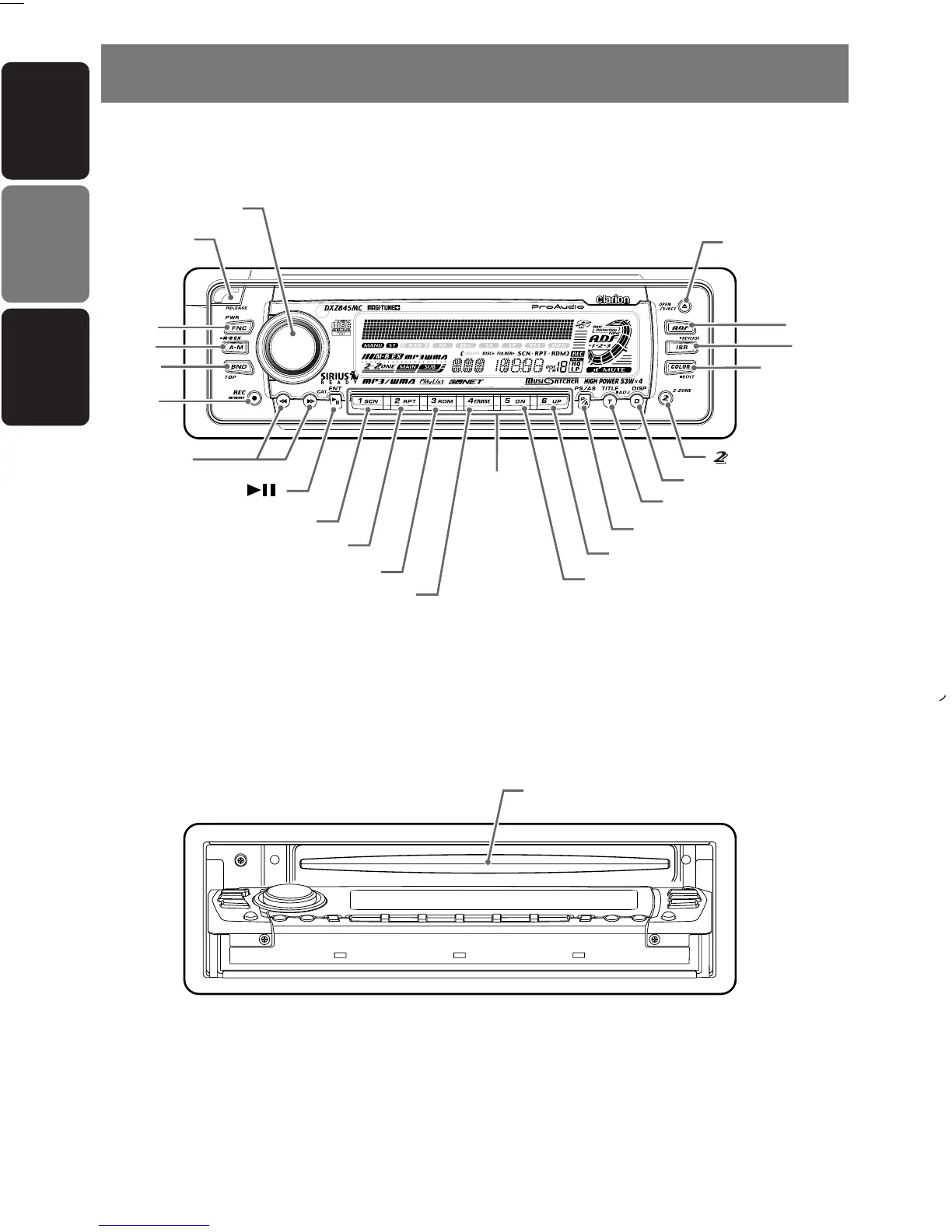

3.CONTROLS / LES COMMANDES / CONTROLES
[
COLOR
]
[
ROTARY
]
[ ]
[
T
]
[
DIRECT
]
[
SCN]
[
RPT]
[
RDM]
[
ISR]
[
ADF]
Source unit / Appareil pilote / Unidad fuente
Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.
Remarque: Veuillez déplier cette page et vous référer aux schémas quand vous lisez chaque chapitre.
Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas.
[
RELEASE
]
[
FNC
]
[
A-M
]
[
BND
]
[
REC
]
[Q]
[
D
]
[
P/A
]
[
DN
]
[
UP
]
[a], [d]
[
PLAY LIST], [ERASE]
[
CD SLOT
]
With the SLOPING CONSOLE opened / Ouvrez la CONSOLE RABATTABLE /
Apertura de la CONSOLA INCLINABLE
[ ]
● When the CD/DVD changer is
connected
∗ For details, see the section “CD changer opera-
tions”. For the DVD changer, refer to the Owner’s
Manual provided with the DVD changer.
[D] button
• When the button is pressed and held, switches the
user titles or track titles, etc. while in the CD changer
mode.
[T] button
• Use the button to input a title in the CD changer mode.
• Use the button to scroll the title during CD-text play.
[UP], [DN] buttons
• Select the disc.
[RDM] button
• Perform random play. Also perform disc random play
when the button is pressed and held.
[RPT] button
•Perform repeat play. When this button is pressed
and held, disc repeat play is performed.
[SCN] button
•Perform scan play for 10 seconds of each track. Disc
scan play is performed when the button is pressed
and held.
[ ] button
• Play or pause a CD or DVD.
[a], [d] buttons
• Select a track when listening to a disc.
• Press and hold the button for 1 second or longer to
switch the fast-forward/fast-backward.
[BND] button
•Move the next disc in increasing order.
● When the TV is connected
∗ For details, see the section “TV operations”.
[P/A] button
•Perform preset scan while in the TV mode. When the
button is pressed and held, auto store is performed.
What is Sirius Satellite Radio?
Sirius is radio the way it was meant to be: Up to 100
new channels of digital quality programming delivered to
listeners coast to coast via satellite. That means 50
channels of completely commercial-free music. Plus up
to 50 more channels of news, sports, and entertainment
from names like CNBC, Discovery, SCI-FI Channel,
A&E, House of Blues, E!, NPR, Speedvision and ESPN.
[A-M] button
• Use the button to switch to the audio mode (SW-VOL,
bass/treble, balance/fader)
• Press and hold for 1 second or longer to turn on or off
the MAGNA BASS EXTENED.
[FNC] button
• Press the button to turn on the power.
Press and hold the button for 1second or longer to
turn off the power.
• Switches the operation mode among the radio mode,
etc.
[CD SLOT]
• CD insertion slot.
Names of the Buttons and their Functions
+DXZ845MC-003-ENG 11/12/03, 1:35 PM2

Clarion ProAudio DXZ845MC Specifications

FM Tuner

frequency range	87.9 MHz to 107.9 MHz
usable sensitivity	9 dBf
50dB quieting sensitivity	15 dBf

AM Tuner

frequency range	530 kHz to 1710 kHz
usable sensitivity	25 µV

CD Player

frequency response	5 Hz to 20 kHz
signal to noise ratio	100 dB
dynamic range	95 dB

Audio

maximum power output	212 W (53 W ✕ 4 ch)
continuous average power output	18 W ✕ 4, into 4 Ω, 20 Hz to 20 kHz, 1%THD
line output level	1.8 V

General

power supply voltage	14.4 V DC (10.8 to 15.6 V allowable)
current consumption	Less than 15 A, 3A
speaker impedance	4 Ω (4 Ω to 8 Ω allowable)

Weight and Dimensions

weight source unit	3.52 lb. (1.6 kg)
weight remote control unit	2.82 oz. (80 g)
dimensions source unit	7" (Width) ✕ 2" (Height) ✕ 6-1/8" (Depth)
dimensions remote control unit	1-3/4" (Width) ✕ 4-5/16" (Height) ✕ 1-1/8" (Depth)
