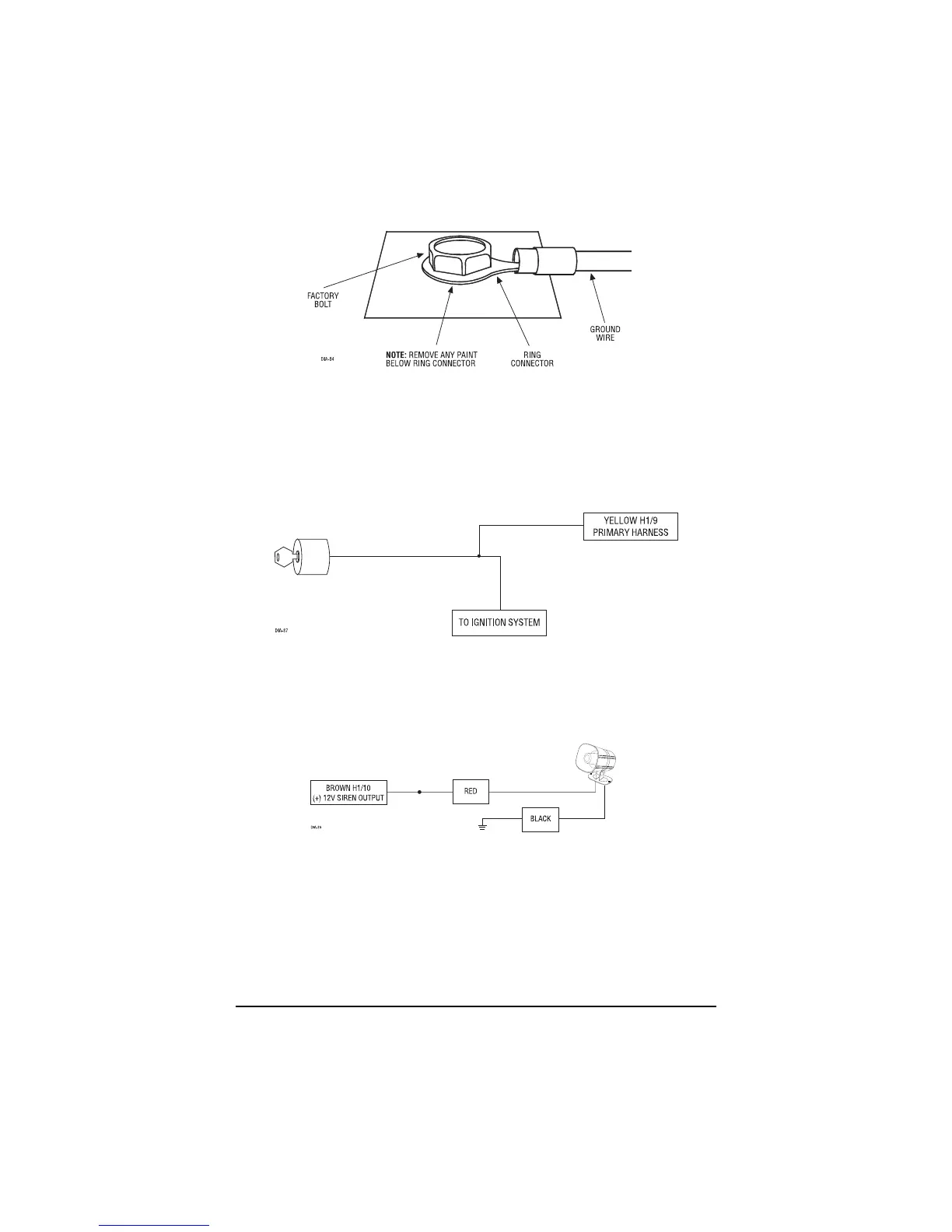

H1/9 YELLOW (+) ignition input
Connect this wire to the (+) 12 volts ignition wire. This wire is pre-wired to the starter kill relay and must
show (+) 12 volts with the key in RUN position and during cranking. Take great care that this wire can-
not be shorted to the chassis at any point.
\\\\\\\
H1/10 BROWN (+) siren output
Connect this to the RED wire of the siren. Connect the BLACK wire of the siren to (-) chassis ground,
preferably at the same point you connect the control module’s BLACK ground wire.
H1/11 RED (+)12V constant power input
Before connecting this wire, remove the supplied fuse. Connect to the battery positive terminal or the
constant 12V supply to the ignition switch.
NNOOTTEE::
Always use a fuse within 12 inches of the point you obtain (+)12V. Do not use the 15 fuse in the
harness for this purpose. This fuse protects the module itself.
