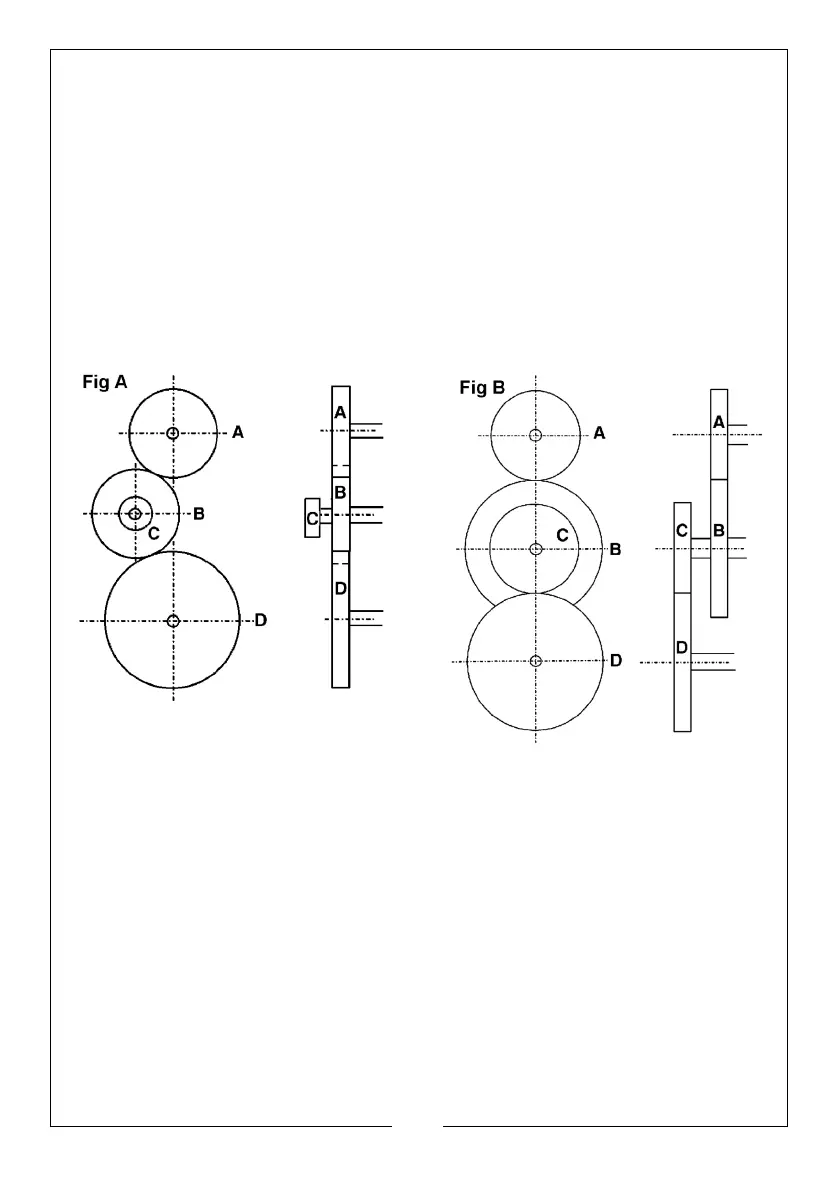

The factory setup for the
lathe provides
for norm
al turning using the power or
auto feed, and the gear co
nfiguration is as follows:
Gear A
...............
20T
Gear B
...............
80T
Gear C
...............
20T
Gear D
...............
80T
23
25
Table of Contents
Introduction
2
Guarantee
2
Table of Contents
3
General Safety Precautions
4
Additional Safety Rules for Lathes
6
Electrical Connections
8
Overview
9
The Headstock
10
The Running Gear
11
The Tailstock
11
The Saddle
11
The Motor
12
Unpacking and Assembly
13
Mounting the Lathe
14
Operation
17
Simple Turning
17
Using Power Feed
17
Bevel Cutting
20
Screwcutting
20
Changing Gears for Screwcutting
23
Gear Configurations
24
Gear Charts for Screw Cutting
25
Maintenance
27
Settings and Adjustments
28
Accessories
30
Parts List
32
Parts Diagram
35
Specifications
36
Wiring Diagram
37
Declaration of Conformity
38
