Clarke MIG 100E - Control Settings Reference Tables; MIG PRO-90 Settings

27
AB C
0.82MIN6
1.0 -2.0 1 MAX 6
2.0 - 3.0 2 MAX 8
Workpiece
Thickness
(mm)
Welding
Position
Wire Speed
Adjustment
0.8 mm Gas Welding Wire
ALUMINIUM
Workpiece
Thickness
(mm)
Welding
Position
Wire Speed
Adjustment
Welding
Position
Wire Speed
Adjustment
0.6 mm Gas Welding Wire 0.8 mm Gas Welding Wire
AB C AB C
0.6 - 0.8 1 MIN 5 1 MIN 5
0.8 - 1.0 2 MIN 5-6 2 MIN 5-6
1.0 - 2.0 1 MAX 6 2 MAX 6
2.0 - 3.0 2 MAX 7 2 MAX 7
STEEL

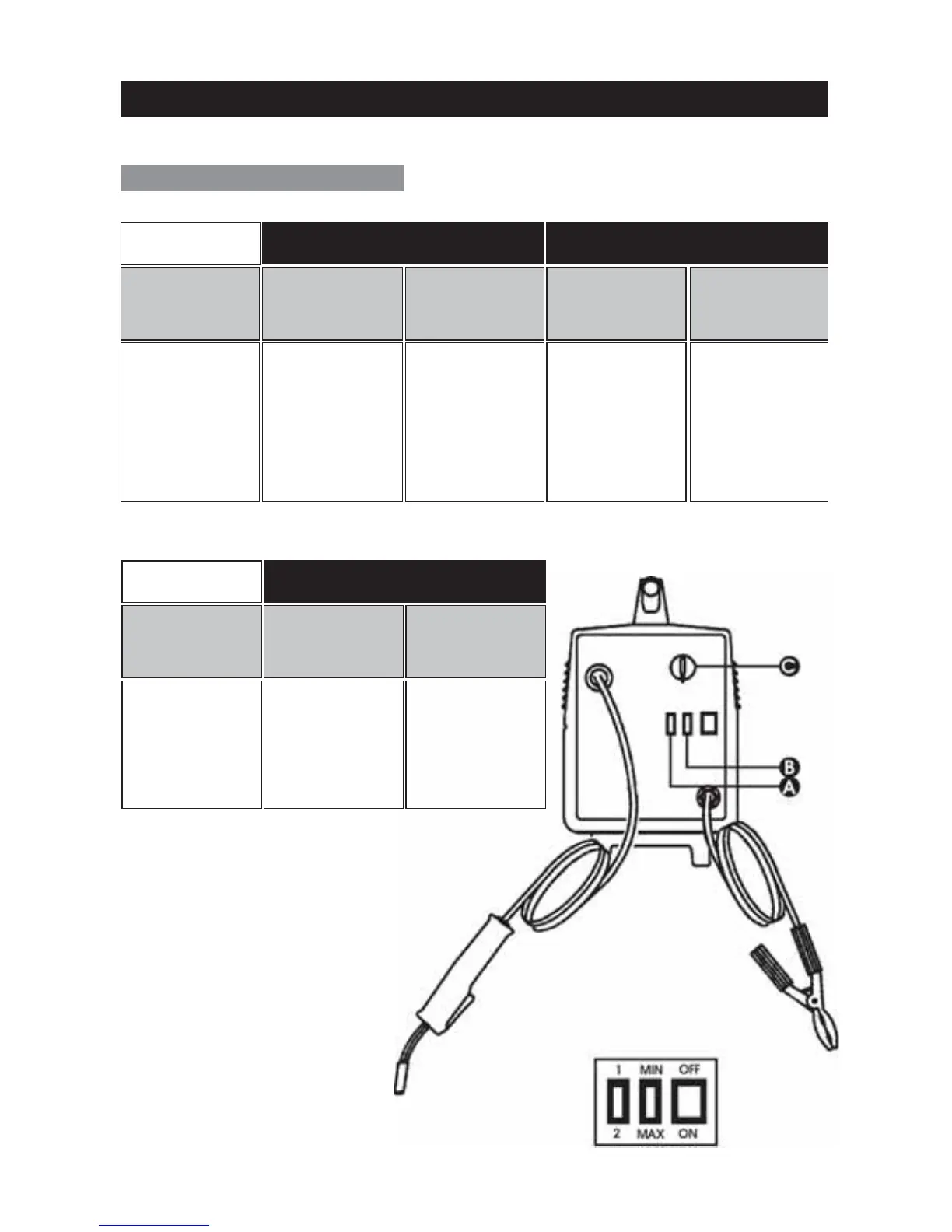

CONTROL SETTINGS - REFERENCE TABLES
A. MIG PRO-90
