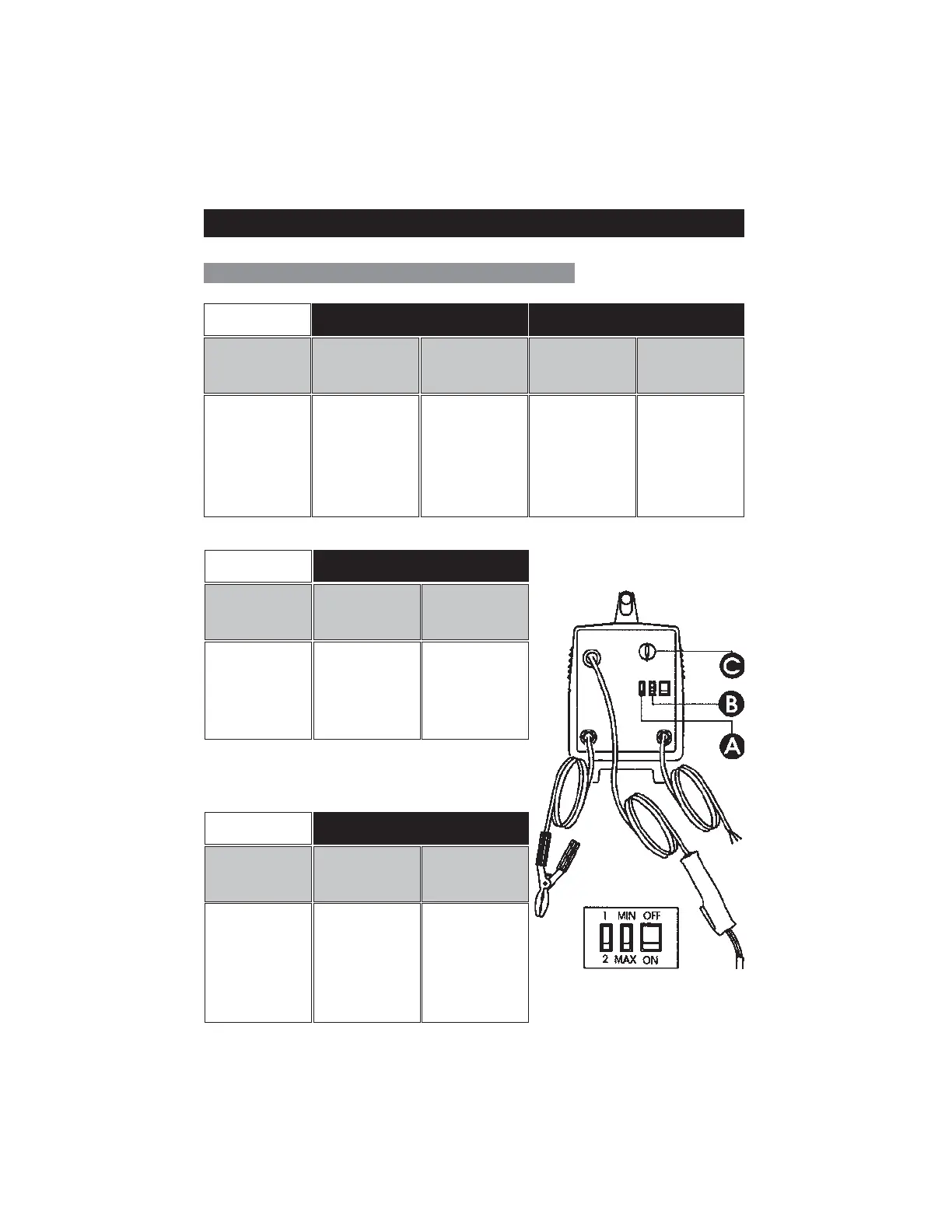

CONTROL SETTINGS - REFERENCE TABLES
A. MIGs 110E, 110EN, 130EN & 135TE
Workpiece
Thickness
(mm)
Welding
Position
Wire Speed
Adjustment
Welding
Position
Wire Speed
Adjustment
0.6 mm Gas Welding Wire 0.8 mm Gas Welding Wire
AB C AB C
0.6 - 0.8 1 MIN 5-6 1 MIN 5-6
0.8 - 1.0 2 MIN 5-6 2 MIN 5-6
1.0 - 2.0 1 MAX 6 1 MAX 6
2.0 - 3.0 2 MAX 7 2 MAX 7
STEEL
AB C
0.8 1 MIN 8-9
1.0 -2.0 2 MIN 9
2.0 - 3.0 1 MAX 9
Workpiece
Thickness
(mm)
Welding
Position
Wire Speed
Adjustment
0.8 mm Gas Welding Wire
ALUMINIUM
AB C
0.6 - 0.8 1 MIN 5-6
0.8 - 1.0 2 MIN 5-6
1.0 - 1.2 1 MAX 6
1.2 - 2.0 2 MAX 7
Workpiece
Thickness
(mm)
Welding
Position
Wire Speed
Adjustment
0.9 mm Gas Welding Wire
SOFT STEEL
NO GAS
