7.0 Calibration
7.1 Spot check
The measurement system of the CLAVIS Belt Frequency Meter is based upon a
very stable quartz crystal that should never wander. However, a precision
mechanical resonator (tuning fork) is included with the meter so that a
calibration check at a spot frequency of 250 Hz may be performed at any time.

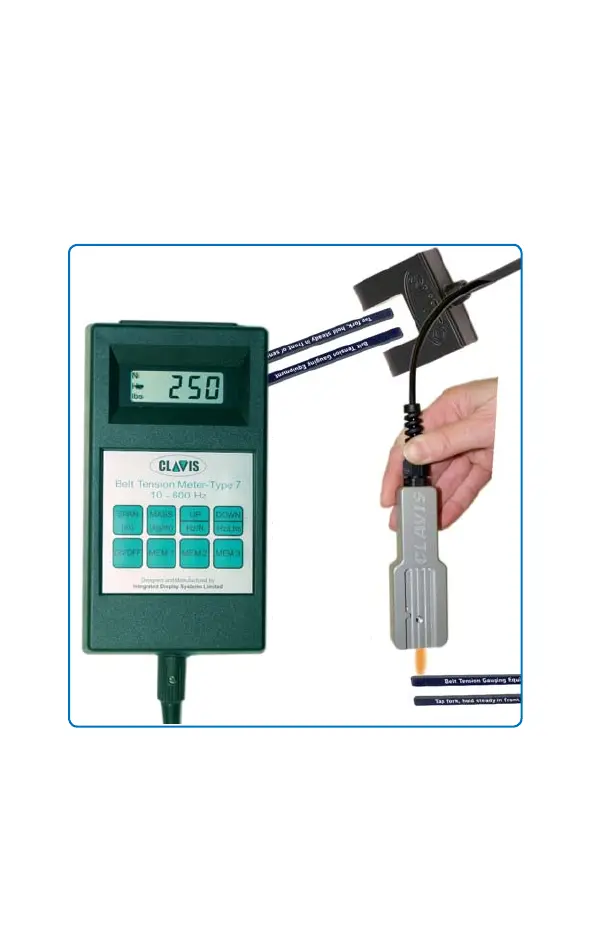

Tap the tip of the
tuning fork on a
hard surface and
then hold STEADY
in front of the
optical sensor at a
distance of 10 to
15 mm. The meter
will measure a
frequency of 250
Hz thus
demonstrating that
it is in calibration.
Results within ±1% are acceptable. There is no adjustment possible. If greater
variance is experienced, the meter should be returned for calibration. See
section 7.2 for manufacturer’s contact information.
