3.2 Audio/visual display
The CLAVIS Belt Frequency Meter is an interactive tool. It provides both visual
and audible communication with the operator. Each signal or combination of
signals has a meaning. While all these signals are discussed in other sections of
this manual, a compilation of all the available signals will be presented here.
Generally visual signals alone give measurement results while audible signals, ei-
ther alone or in combination with a visual signal, indicate some operational step.

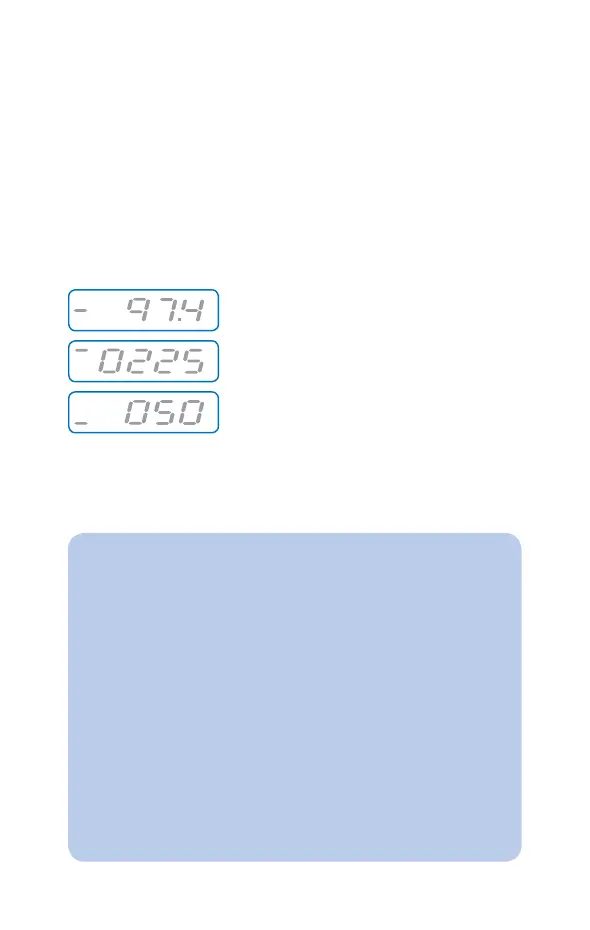

Tension displayed
in newton
Frequency mode,
results displayed as hertz
Tension displayed
in pound-force.
Visual
measurement
results
A line segment will
appear to indicate the
units associated with the
number displayed
Audible signals
Signal When Means
One Beep Upon release of “Span” key Input accepted
One Beep Upon release of “Mass” key Input accepted
One Beep While sensor is aimed at vibrating
belt
Measurement taken
Two Beeps Upon pushing “Memory” key after
releasing “Span” key
Span data has been stored
Upon pushing “Memory” key after
releasing 'Mass' key
Mass data has been stored
Four Beeps Combined with “0000” N display Newton result is out of range
Combined with “0000” lb display Pound result is out of range
After pushing “On” key combined
with “zero” countdown
Low battery condition
N
Hz
lbs
N
Hz
lbs
N
Hz
lbs
