Clavis Type 7 - Quick Start Guide; Optical Sensor Quick Start; Acoustic Sensor Quick Start

5

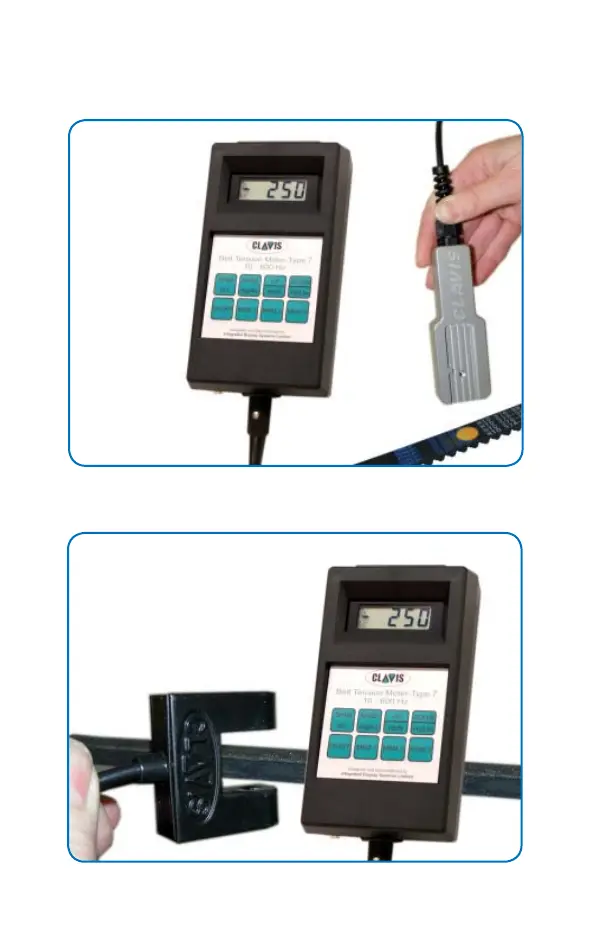

2.0 Quick start
1. Plug in sensor
2. Press to switch
meter on
3. Aim sensor
at belt, gap 5
to 25 mm
4. Tap or
pluck belt
5. Read belt
frequency (Hz)
or
1. Plug in
sensor
2. Press
to switch
meter on
3. Hold sen-
sor across
the belt. En-
sure that the
sensor does
not touch the
belt
4. Tap or
pluck belt
5. Read belt
frequency (Hz)
