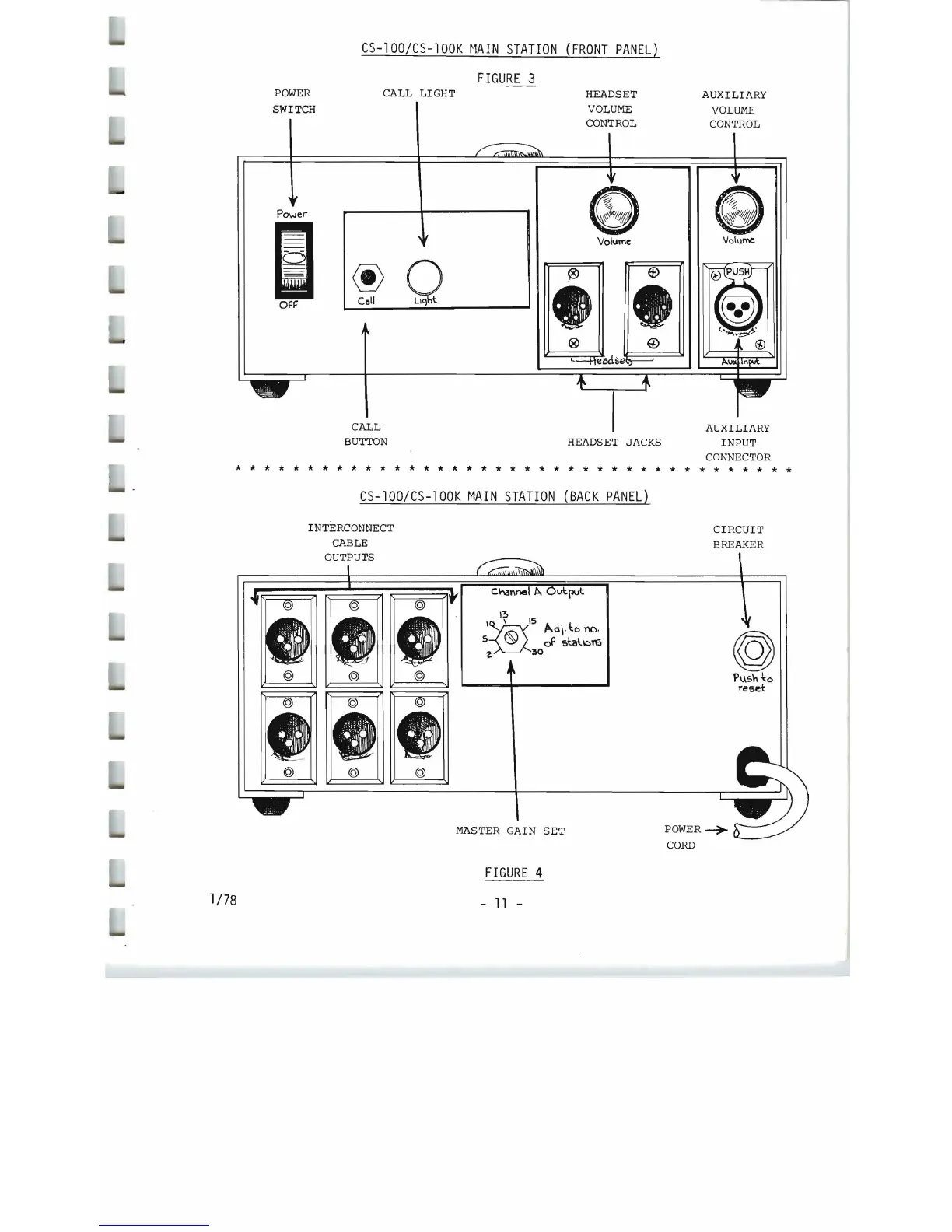

CS-100/CS-100K MAIN STATION (FRONT PANEL)
FIGURE 3
POWER
CALL LIGHT
HEADSET
SWITCH
@
Coli
CALL
BUTTON
VOLUME
CONTROL
Volume
HEADSET JACKS
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
CS-100/CS-100K r~AIN STATION (BACK PANEL)
INTERCONNECT
CABLE
FIGURE 4
- 11 -
AUXILIARY
VOLUME
CONTROL
Volume
AUXILIARY
INPUT
CONNECTOR
* * * * * * * *
CIRCUIT
BREAKER
OUTPUTS
©
••
© 0
••
© ©
MASTER GAIN SET
CORD
~
PUSh~O
reset

Clear-Com CS-100 Specifications

General

frequency response	250 Hz - 10 KHz (-3 dB ref. to 1 KHz)
headset microphone input level	-55 dBm
headphone output level	9 volts rms into 600 Jl
distortion	Less than 0.5%
system impedance and level	Approximately -25 dBm into 200
auxiliary input audio level	100 mv into 600 Jl
channel separation (CS-200)	> 45 dB
headset input connector	2 - 4 pin connectors (D4M)
interconnect output connectors CS-100	6 each in parallel, Switchcraft D3M
interconnect output connectors CS-200 Channel A	3 each in parallel, Switchcraft D3M
interconnect output connectors CS-200 Channel B	3 each in parallel, Switchcraft D3M
auxiliary input connector	Switchcraft D3M
power supply	28 volts circuit breaker protected
power requirements	115/230 volts 50-60 Hz. 80 watts maximum
capacity	Will support up to 40 RS-100A or MR-102 remote stations or 15 KB-100 or KB-lll remote stations

Weight and Dimensions

dimensions CS-100/CS-200	9.5"L X 4"H X 8.5"D
dimensions CS-100K/CS-200K	19"L X 3.5"H X 9.125"D
weight CS-100/CS-200	6 lbs. 14 oz.
weight CS-100K/CS-200K	6 lbs. 15 oz.
