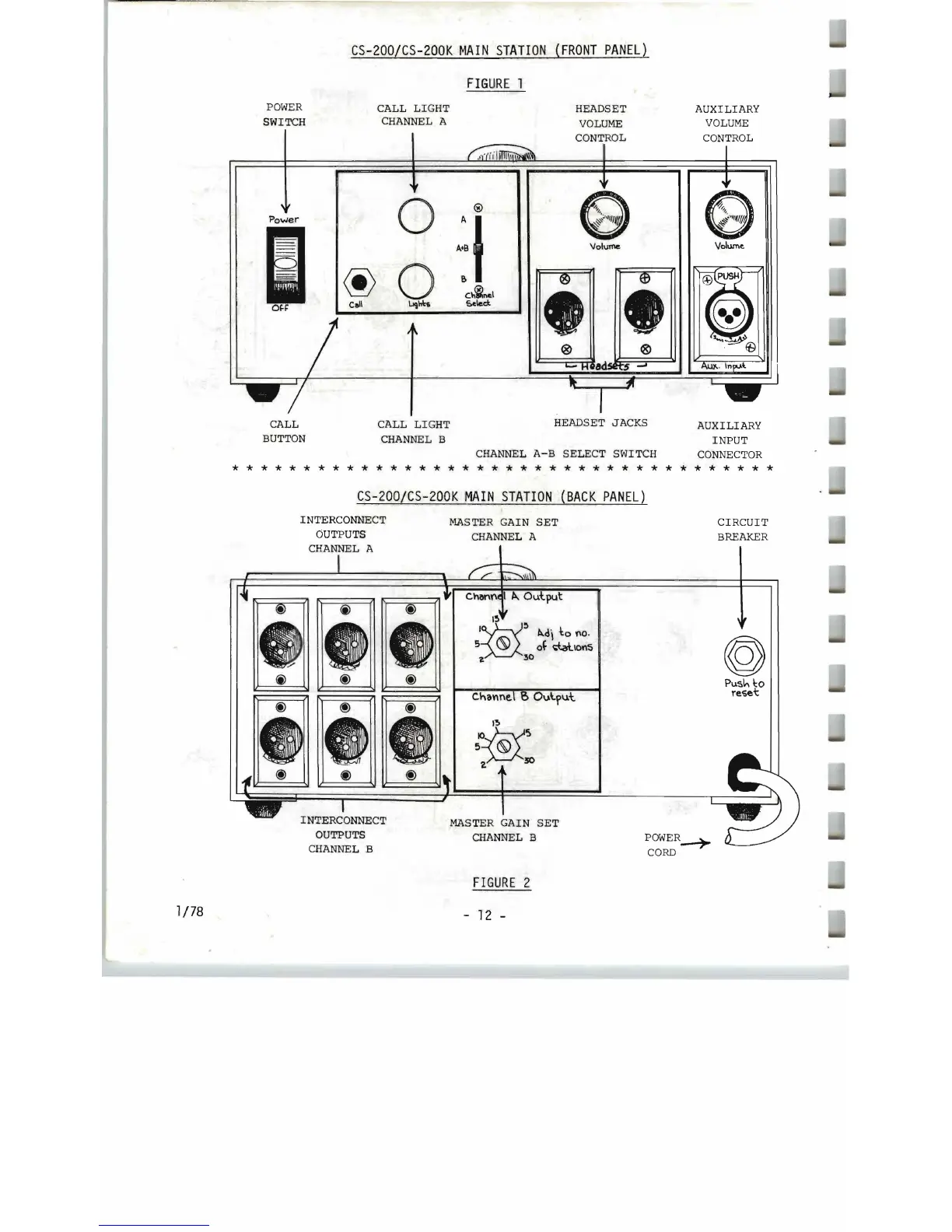

CS-200/CS-200K MAIN STATION (FRONT PANEL)
FIGURE 1
POWER
CALL LIGHT
HEADSET
AUXILIARY
SWITCH
CHANNEL A
VOLUME
VOLUME
CONTROL
CONTROL
Volume
@
Call
CALL CALL LIGHT
AUXILIARY
BUTTON
CHANNEL B
INPUT
CONNECTOR
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
0
0
l"l""
®
:1
c"~nel
'<>eled
\/olU!TI&
-
-
®
®
HEADSET JACKS
CHANNEL A-B SELECT SWITCH
CS-200/CS-200K MAIN STATION (BACK PANEL)
INTERCONNECT
MASTER GAIN SET
CIRCUIT
OUTPUTS
CHANNEL A BREAKER
CHANNEL A
@
Pusl,...tO
re~et
CHANNEL B
POWER-+
CORD
FIGURE 2
- 12 -
MASTER GAIN SET
OUTPUTS
CHANNEL B

Clear-Com CS-100 Specifications

General

frequency response	250 Hz - 10 KHz (-3 dB ref. to 1 KHz)
headset microphone input level	-55 dBm
headphone output level	9 volts rms into 600 Jl
distortion	Less than 0.5%
system impedance and level	Approximately -25 dBm into 200
auxiliary input audio level	100 mv into 600 Jl
channel separation (CS-200)	> 45 dB
headset input connector	2 - 4 pin connectors (D4M)
interconnect output connectors CS-100	6 each in parallel, Switchcraft D3M
interconnect output connectors CS-200 Channel A	3 each in parallel, Switchcraft D3M
interconnect output connectors CS-200 Channel B	3 each in parallel, Switchcraft D3M
auxiliary input connector	Switchcraft D3M
power supply	28 volts circuit breaker protected
power requirements	115/230 volts 50-60 Hz. 80 watts maximum
capacity	Will support up to 40 RS-100A or MR-102 remote stations or 15 KB-100 or KB-lll remote stations

Weight and Dimensions

dimensions CS-100/CS-200	9.5"L X 4"H X 8.5"D
dimensions CS-100K/CS-200K	19"L X 3.5"H X 9.125"D
weight CS-100/CS-200	6 lbs. 14 oz.
weight CS-100K/CS-200K	6 lbs. 15 oz.
