ICS-2003 INTERCOM STATION
2-9

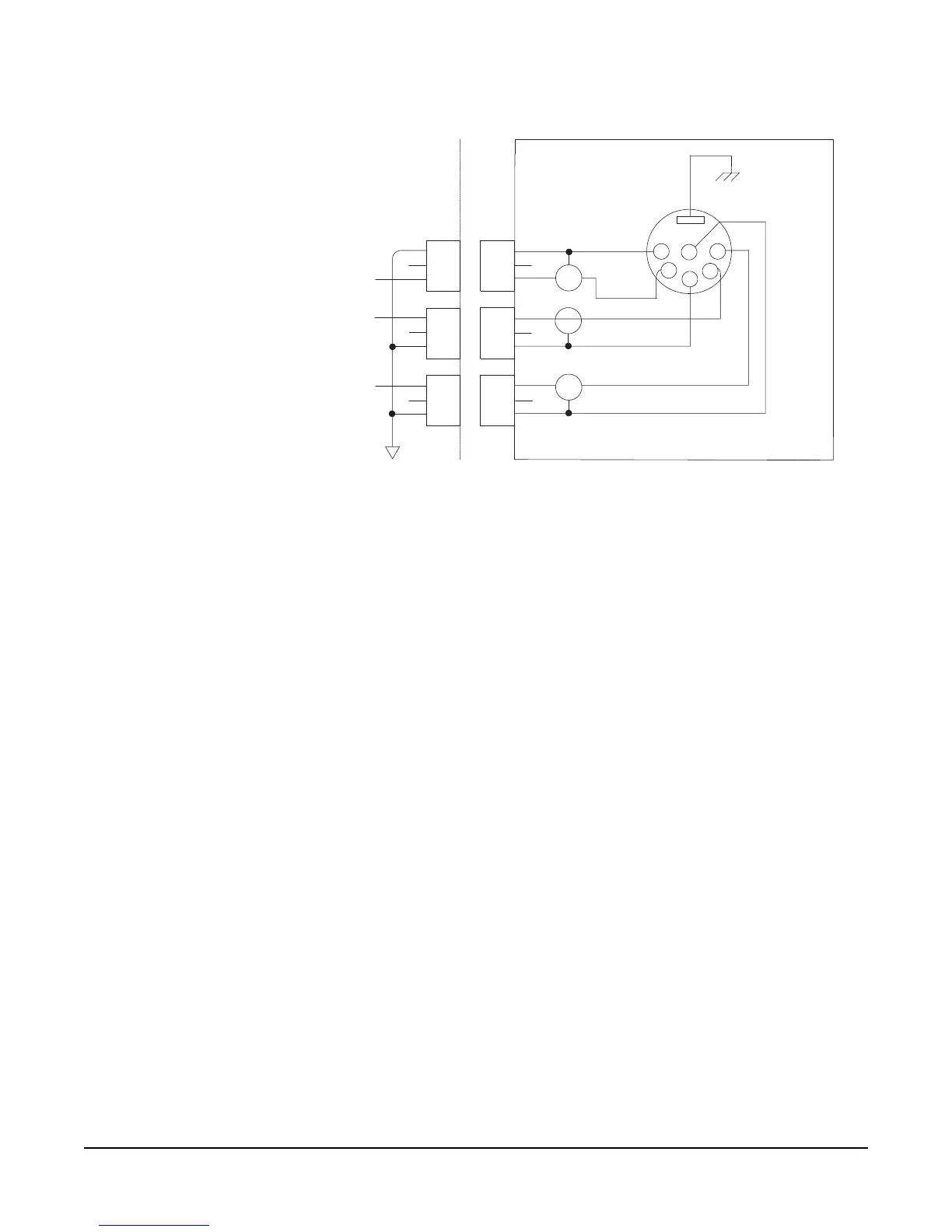

Figure 9: Binaural Headset Wiring
MAINS AC POWER
The station has a separate, external DC power supply with a removable AC
power cord. The power supply is “universal,” operating over a voltage range of 90
to 260 VAC and 45 to 65 Hz. The maximum dissipation is 30 W.
A bracket has been provided to mount this external supply if necessary.
ADJUSTMENTS
The following station parameters are adjustable internally on the station’s main
PCB by selecting options in the configuration program:
• Headset Sidetone
•Panel Microphone Gain
•Speaker Mute
• Page Volume Level
• Station-to-Matrix card Baud Rate
All these parameters are set to factory defaults. Most stations should operate at
these default settings; however, some applications may require readjustment.
HEADSET SIDETONE
Sidetone is the sound of the user’s voice in his headset.
Refer to the Eclipse Configuration System Instruction Manual for instructions on
adjusting sidetone.
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
X
X
X
X
X
X
113
115
120
Front Panel Headset Connector
1
2
3
4
5
6
7
