ICS-2003 INTERCOM STATION
3-6

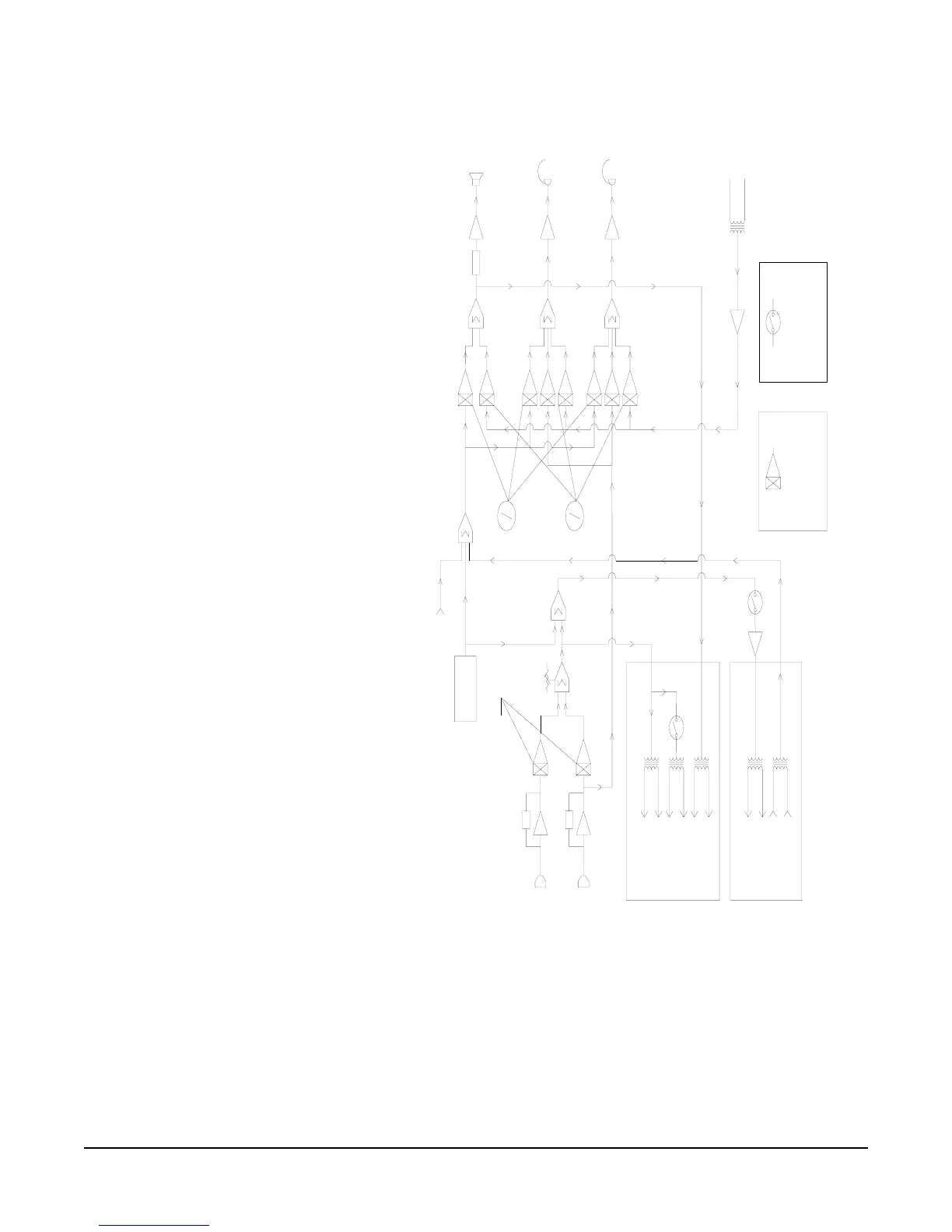

Figure 12: Analog Block diagram—ICS-2003 Main PCB
This page is a place holder.
EQ
EQ
EQ
DTMF Generator
AUX. AUDIO OPTION
HOT MIC
OUTPUT
SA
OUTPUT
SPEAKER
FEED OUT
ANNOUNCE TONE
FROM
MICROPROCESSOR
RS-422 COM MODULE
4-WIRE
TAL K
4-WIRE
LISTEN
BALLANCED
PROGRAM
INPUT
HEADPHONE #1
HEADPHONE #2
SPEAKER
PANEL
MICROPHONE
HEADSET
MICROPHONE
MIC GAIN
TRIMS &
SWITCHES
LIMITER
MICROPROCESSOR
CONTROLLED VCA
VOLUME
CONTROLS &
MUTE SWITCH
MICROPROCESSOR
CONTROLLED
AUDIO SWITCH
ICS-2003 AUDIO BLOCK DIAGRAM
Jan. 14, 1998
Intercom
Intercom
Intercom
Program
Program
Program
Sidetone
Sidetone
Sidetone
Program
1
1
1
2
2
2
3
3
3
3
PROGRAM
VOLUME
INTERCOM
VOLUME
