Clear-Com ICS-2003 User Manual

ICS-2003 INTERCOM STATION
3-19

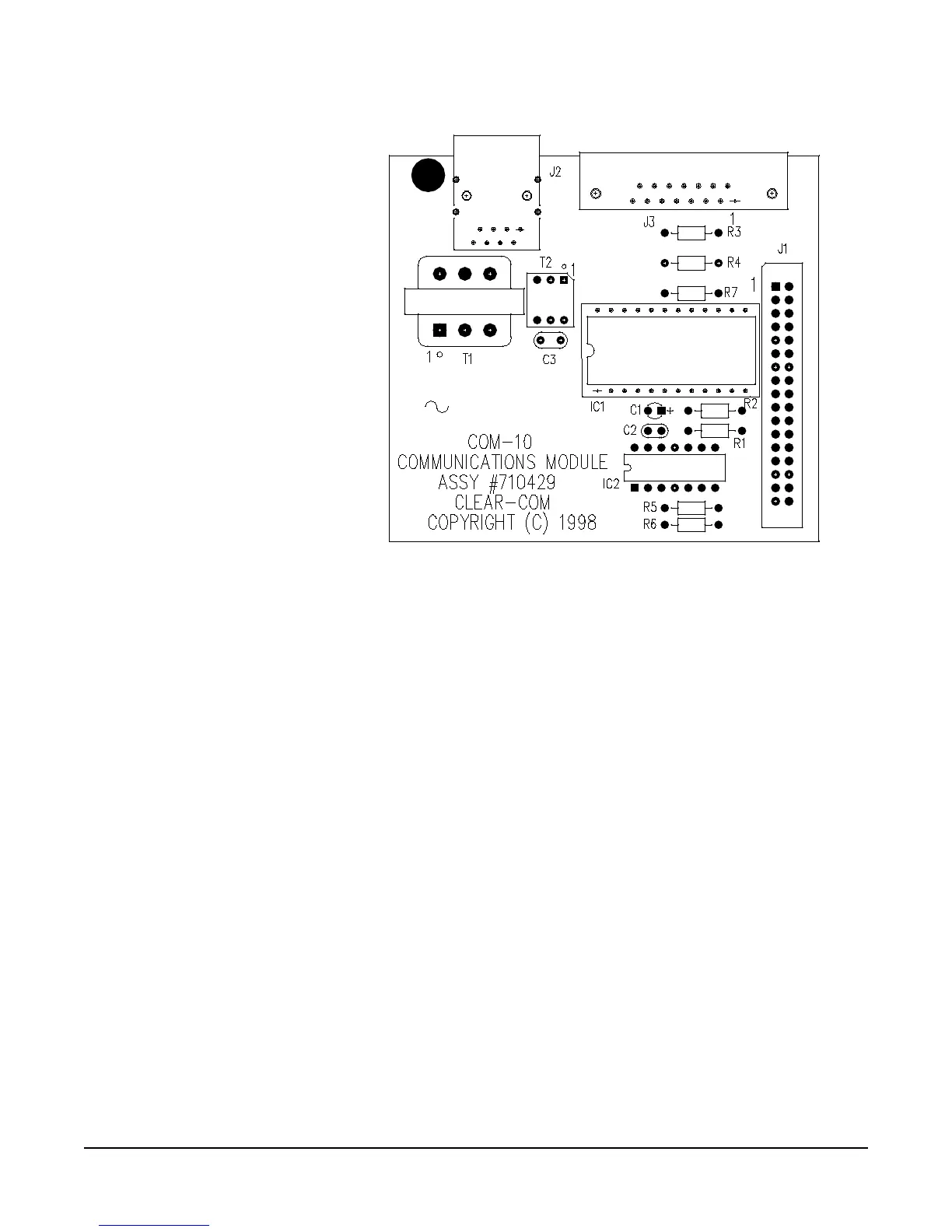

Figure 18: Assembly Drawing - COM-10 Communications Module Rev. A
BILL OF MATERIALS FOR THE ICS-2003/ICS-2003T COM-10 PCB
CAPACITORS
Value Type Volts Tol. Part # Designator
22 uF Tantalum 16 150032 C1
.1 uF Monolithic 50 10% 150035 C2
.0022 uF Mylar 100 5% 150045 C3
RESISTORS & RESISTOR PACKS
Value Power Type Tol. Par t # Designator
150 OHM 1/4 Carbon Film 5% 410006 R5
200 OHM 1/4 Carbon Film 5% 410072 R2
330 OHM 1/4 Carbon Film 5% 410061 R4
4.7K OHM 1/4 Carbon Film 5% 410013 R6
3.3K OHM 1/4 Carbon Film 5% 410015 R3 R1
INTEGRATED CIRCUITS
Device Description Part # Designator
Interface IC 1490B Isolated RS422 Interface 480242 IC1
Logic IC 74HC00 Quad NAND 480157 IC2
MISCELLANEOUS
Device Description Part # Designator
Connector DB-15M Rt Ang PC Mtg 210188 J3
Connector RJ-45 Rt Ang 210335 J2
Transformer 600CT/600CT 560018 T1
Transformer 10K:10K 560034 T2
