Clear-Com ICS-2003 User Manual

ICS-2003 INTERCOM STATION
3-21

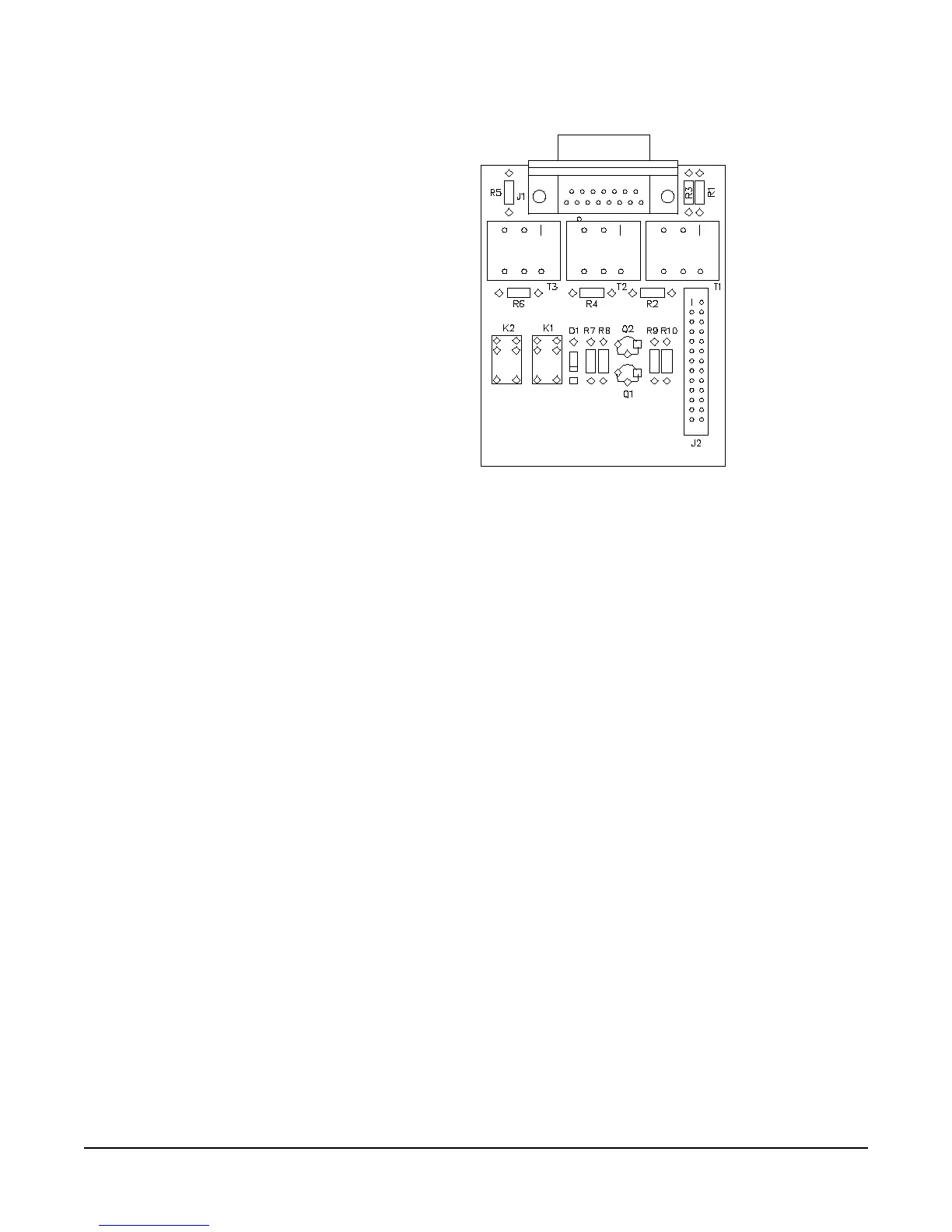

Figure 20: Assembly Drawing—OPT-100 Module Rev. A
BILL OF MATERIALS FOR THE OPT-100 PCB
Resistors & Resistor Packs
Value Power Type Tol. Part #
Designator
1K OHM 1/4 Carbon Film 5% 410010 R1 R2 R3 R4
R5 R6
4.7K OHM 1/4 Carbon Film 5% 410013 R9
15K OHM 1/4 Carbon Film 5% 410017 R7 R8 R10
Diodes and Transistors
Device Description Part #
Designator
Diode 1N4001 RECT 1A 50PIV 480001 D1
Transistor MPS-A05 NPN 60V 480052 Q2
Transistor MPS-A55 PNP 60V 480050 Q1
Miscellaneous
Device Description Part #
Designator
Connector db-15fRT ANG PC MTG 210187
J1
Relay SPDT 24V MINI PC RELAY 450004
K1 K2
Transformer AUDIO, 600CT/600CT 560018
