ICS-2003 INTERCOM STATION
1-2
FRONT-PANEL CONTROLS AND INDICATORS
This section describes the front-panel controls and indicators. These include:
• The display screen
• Intercom and program controls
• Talk/listen selectors and indicators
• “Answer Back” facility
•Keypad buttons

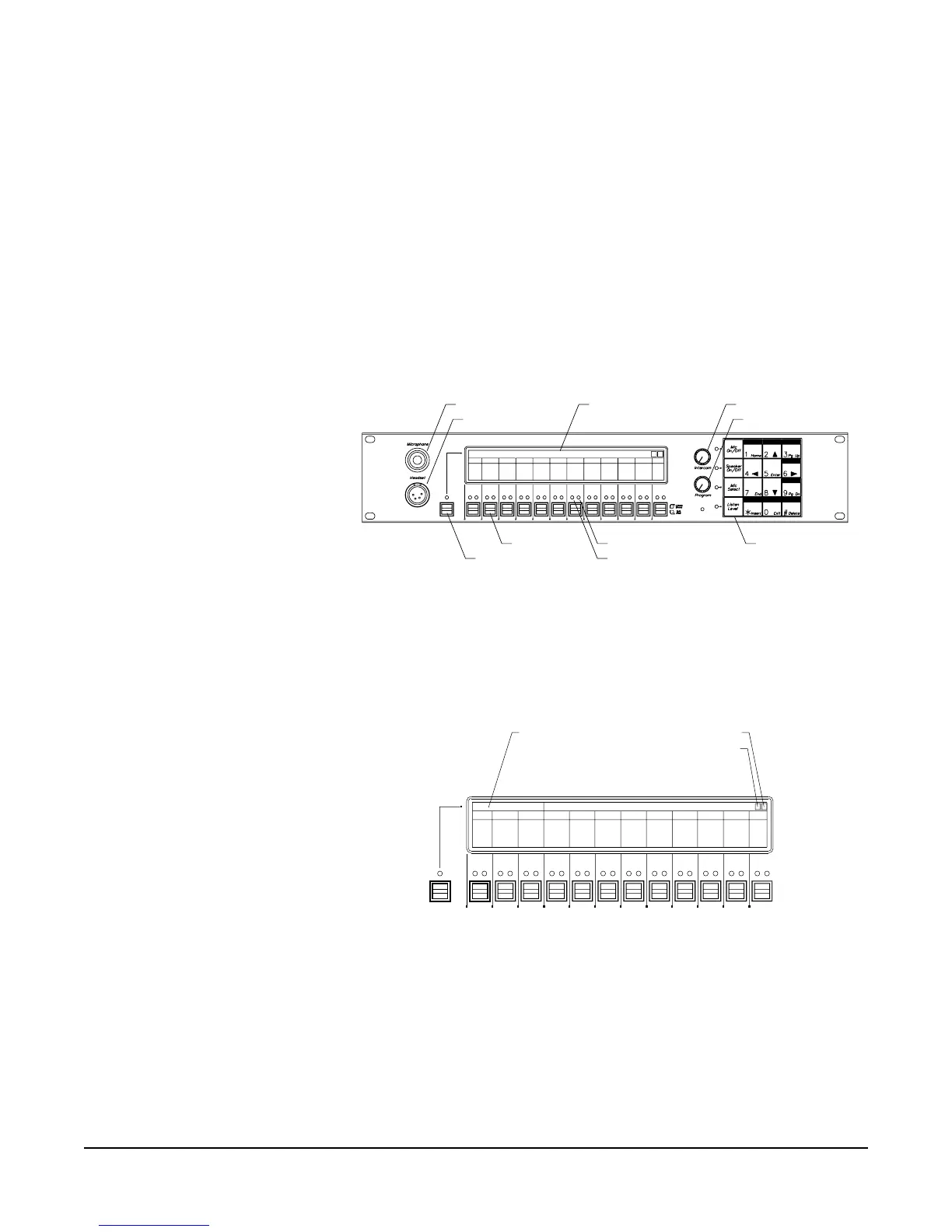

Figure 2 illustrates the ICS-2003/ICS-2003T front-panel controls and
indicators.
Figure 2: ICS-2003 Front-Panel Controls and Indicators
Display Screen
The display screen is divided into five areas, or windows. These include the talk,
listen, answer-back, message, and symbol areas/windows.
Figure 3: ICS- 2003 Display Screen
Tal k W in dow
The talk window is located directly above the selectors, and shows the currently
assigned labels. Assigned labels are accessed when the selector is pushed or
latched in the “talk” position (down). Each selector can be assigned as many as
four labels. Each label can represent a talk path to a station, interface, fixed
group, or party line, or can activate a programmable control function.
Panel Mic Connector
Headset Connector
LCD Display
Intercom Volume
Program Volume
Answer-back key
Selector keys (12)
Listen indicator (green)
Talk indicator (red)
Keypad
Answer-back window
Symbol window
Ear icon
Message window
Listen
window
