User manual / Bedienungsanleitung
Made in Germany Page / Seite 15

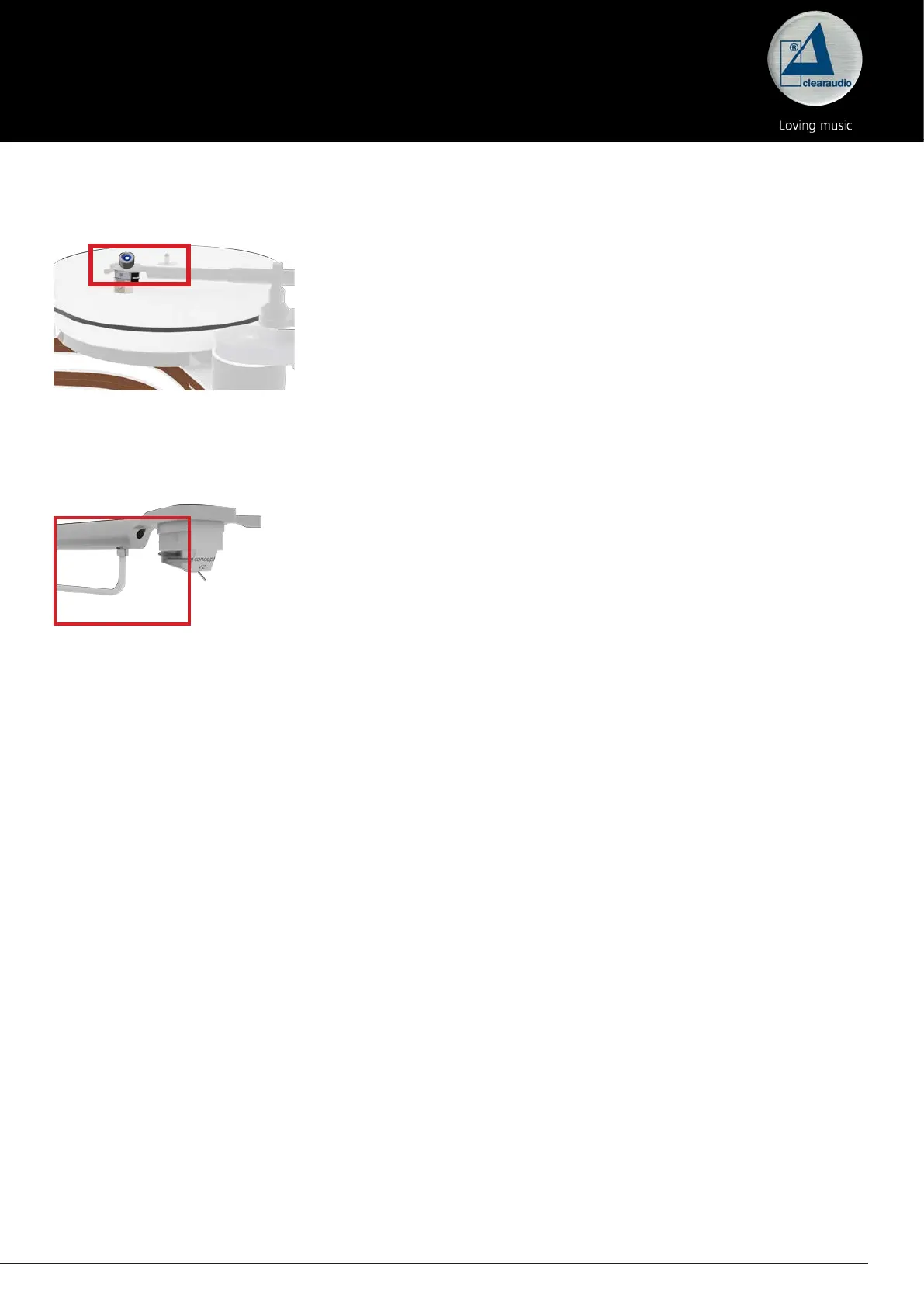

Pic. 17: Screw for azimuth adjustment
Pic. 16: Azimuth adjustment
5.5 Adjustment of the azimuth
The azimuth is the angle of the cartridge stylus to the record surface.
Viewed from the front, the cartridge needle have to be vertical to the
record.
Please note:
The azimuth is already set at the factory.
If you still want to optimize the azimuth, place the supplied Mini
Level Gauge on the headshell and lower the cartridge onto the record
surface.
To change the azimuth, please proceed as following:
Loosen the screw (hex wrench #2) on the bottom side of the tonearm
tube near the headshell.
Now you can adjust the azimuth by turning the headshell in the
tonearm tube.
After you have found the correct position, carefully tighten the small
hex screw again without changing the previously selected position.
