2.4 Mounting the VTA-Lifter on a other manufacturers’ turntables
In order to mount the VTA-Lifter on the turntable chassis, please rst drill the holes into the turntable
chassis.

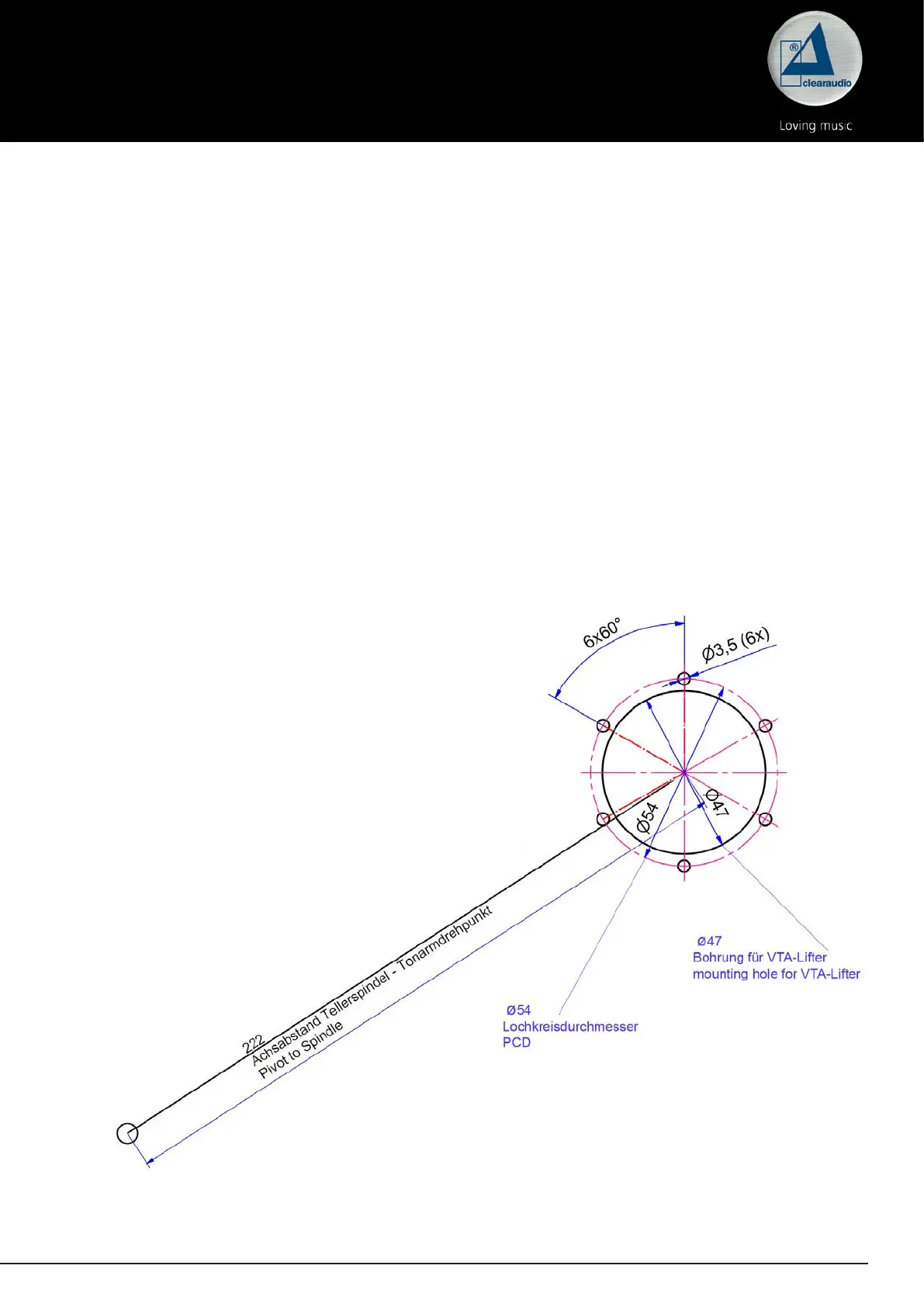

To ensure the correct position of the holes, please use the measurements given in the drawing
template below (Pic. 8).
Please note that this image is not true to scale.
Please note:
This drilling template is ony suitable for
Universal
9 inch tonearms.
Please see the technical details on page 18 for the correct distance between platter
spindle and tonearm pivot point of the
Universal
12 inch tonearm.
Pic. 8: Drilling template for mounting the VTA-Lifter on a other manufacturers‘ turntable
