Disassembly
2 - 10 Removing the Optical (CD/DVD) Device
2.Disassembly
Removing the Optical (CD/DVD) Device
1. Turn off the computer, and remove the battery (page 2 - 5).
2. Locate the secondary hard disk bay cover and remove screws & (Figure 6a
).
3. Remove the hard disk bay cover and screw at point (Figure 6b
).
4. Use a screwdriver to carefully push out the optical device out of the bay at point (Figure 6d
).
5. Reverse the process to install any new optical (CD/DVD) device
.

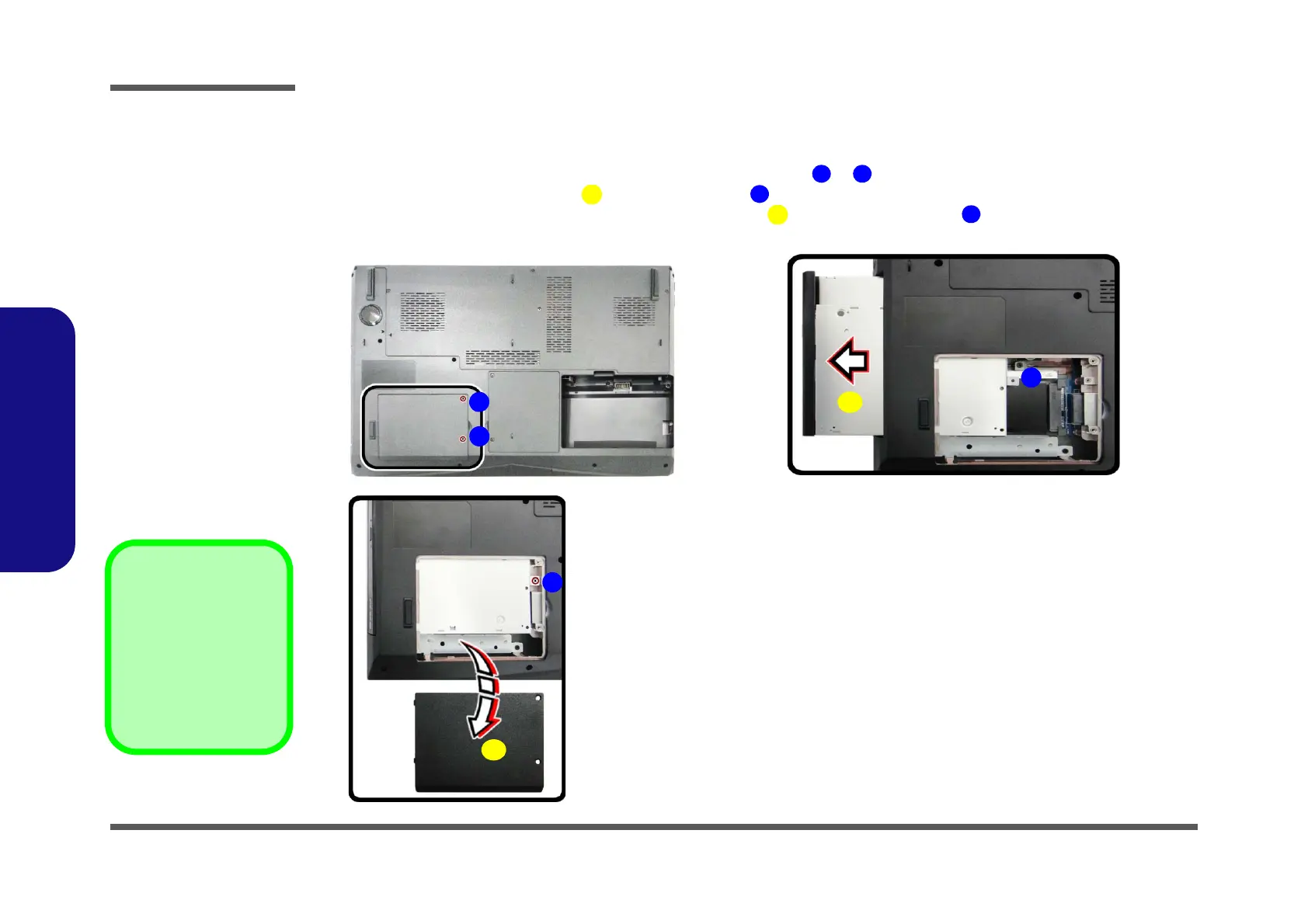

Figure 6
Optical Device
Removal
a. Locate the secondary
hard disk bay cover and
remove the screws.
b. Remove the cover and
screw.
c. Push the optical device
out off the computer at
point 6.
1
2
6
3
4
6
5
6

3. Secondary HDD Bay
Cover
5. Optical Device
• 3 Screws
1
2
4
3
6
5
a. c.
b.
