TPA2008D2
P2P BA20550
(TSSOP24)
20 Mil
20 Mil
20 Mil 20 Mil
20 Mil
20 Mil
On
The volume control.the gain range is from
-80db(Vvolume=5V) to +20db(Vvolume=0V) with
64 steps precise control.
AUDIO AMP Enable
6-20-43130-104
Speaker wire length less than 8000mils , It don't need LC Filter.
Speaker 4 ohm------> 30mils, Via hole----->C40D20.
SPKOUTR+,R-,L+,L- Trace width
2/16 add
3/31
ቃఎ ( ڂ 898 ᄎࢮ low)
for SUBWOOFER
ଃၦᓳᖞش
EMI AUDG/DGND ೴։
ROUT+
AMP_EN
LOUT+
FRONT_R
FRONT_L
LOUTP
ROUT-
ROUTP
ROUTN
LOUTN LOUT-
AMP_EN
ROUT-
LOUT+
LOUT-
ROUT+
5VS
5VS
AMP_5VS
AUDG AUDG
AUDG
AUDG
AUDG AUDG AUDG
AUDG
AUDG
AUDG
AUDG
3.3VS
AUDG
FRONT_R50,52
FRONT_L50,52
EAPD_MODE50
PCH_MUTE#39
SUSB#13,38,43,44,45,46,53,63,64
AMP_EN 52
KBC_MUTE#44 3.3VS3,9,10,11,12,13,14,15,16,31,32,35,37,38,39,40,41,43,44,45,47,48,50,54,58,59,60,63,67,73,75
5VS13,14,16,37,45,50,52,58,59,60,63,68,70,72
LOUT- 52
LOUT+ 52
ROUT- 52
ROUT+ 52
Title
Size Document Number Rev
Date: Sheet
of
6-71-P65S0-D02C
D02C

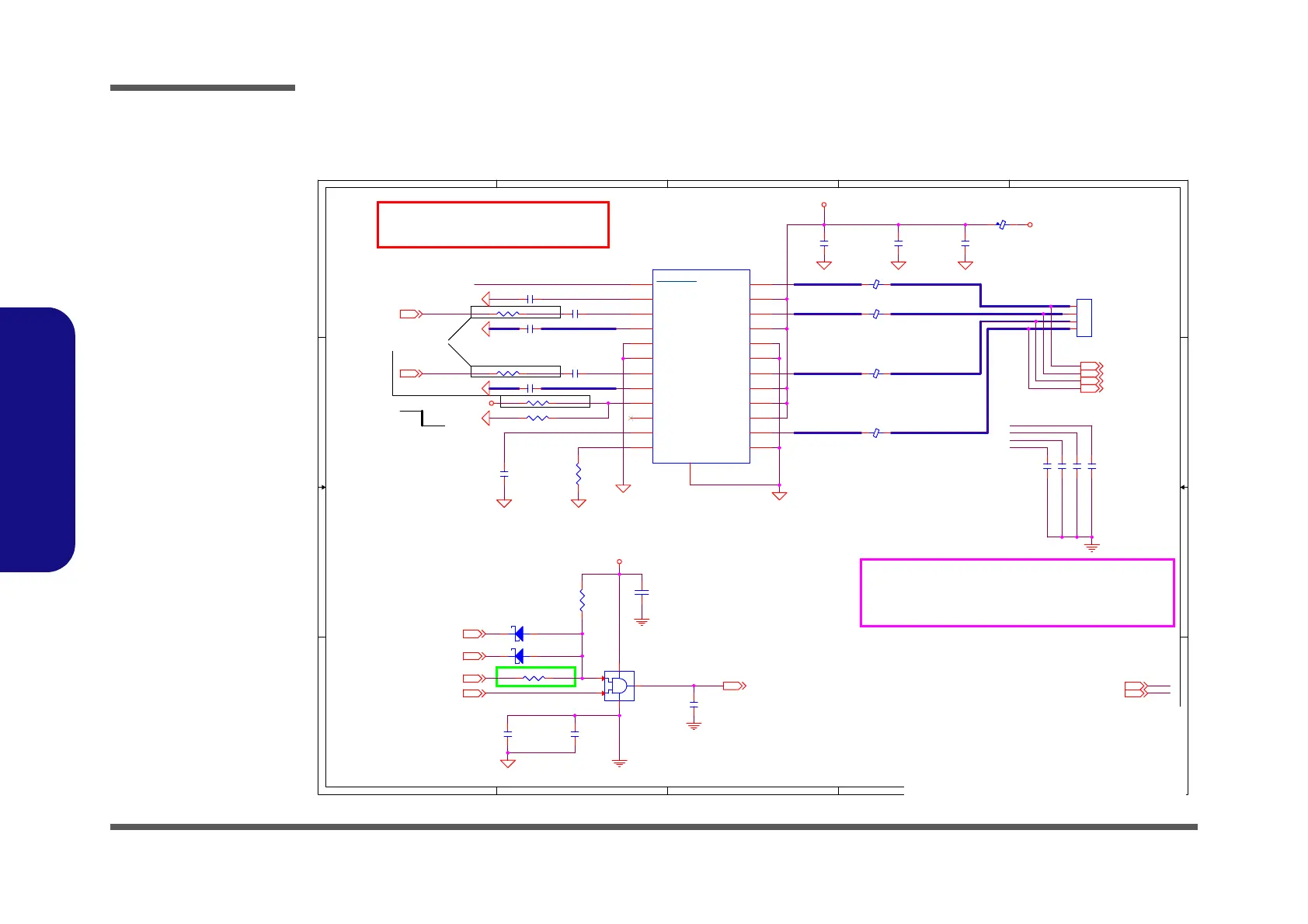

[51] TPA2008D2
A4
51 91Wednesday, September 07, 2016
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P650RS
Title
Size Document Number Rev
Date: Sheet
of
6-71-P65S0-D02C
D02C
[51] TPA2008D2
A4
51 91Wednesday, September 07, 2016
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P650RS
Title
Size Document Number Rev
Date: Sheet
of
6-71-P65S0-D02C
D02C
[51] TPA2008D2
A4
51 91Wednesday, September 07, 2016
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P650RS
D38 RB751V-40(lision)
AC
C996
0.1u_10V_X7R_04
.
L27 FCM1005KF-121T03
R764 0_04
.
L24 FCM1005KF-121T03
C991 0.1u_10V_X7R_04
C1008
220p_50V_NPO_04
C605
0.1u_10V_X7R_04
R698
120K_04
R331
100K_1%_04
R319 10K_1%_04
C989 0.1u_10V_X7R_04
D37 *RB751V-40(lision)
AC
C1006
22u_6.3V_X5R_08
L45
HCB1608KF-121T30
R302 3.01K_1%_04 C606
0.1u_10V_X7R_04
C1042
*0.1u_16V_Y5V_04
C547 1000p_50V_X7R_04
R318 6.98K_1%_04
.
L26 FCM1005KF-121T03
.
L23 FCM1005KF-121T03
C554 1000p_50V_X7R_04
J_SPK1
85204-04001
P65
1
2
3
4
C1041
*0.1u_10V_X5R_04
C570 1000p_50V_X7R_04
R300 3.01K_1%_04
C1012
0.1u_16V_Y5V_04
U33
74AHC1G08GW
1
2
5
4
3
C994
0.1u_10V_X7R_04
C970
1000p_50V_X7R_04
C564 1000p_50V_X7R_04
C992 2.2u_6.3V_X5R_04
U30
TPA2008D2
LINN
1
LINP
2
SHUTDOWN
3
PVDDL2
4
LOUTP
5
PGNDL1
6
PGNDL2
7
LOUTN
8
PVDDL1
9
COSC
10
ROSC
11
AGND
12
VDD
13
VOLUME
14
NC
15
PVDDR2
16
ROUTN
17
PGNDR1
18
PGNDR2
19
ROUTP
20
PVDDR1
21
BYPASS
22
RINP
23
RINN
24
Thermal_Pad
25
Sheet 51 of 91
TPA2008D2
Schematic Diagrams
B - 52 TPA2008D2
B.Schematic Diagrams
TPA2008D2
