Disassembly
2 - 6 Removing the Battery
2.Disassembly
Removing the Battery
1. Turn the computer off, and turn it over.
2. Remove the SD card cover and screws - (Figure 2a).
3. Carefully lift the bottom case
up in the direction of the arrow and remove it (Figure 2b).
4. The battery will be visible at point on the computer (Figure 2c
).

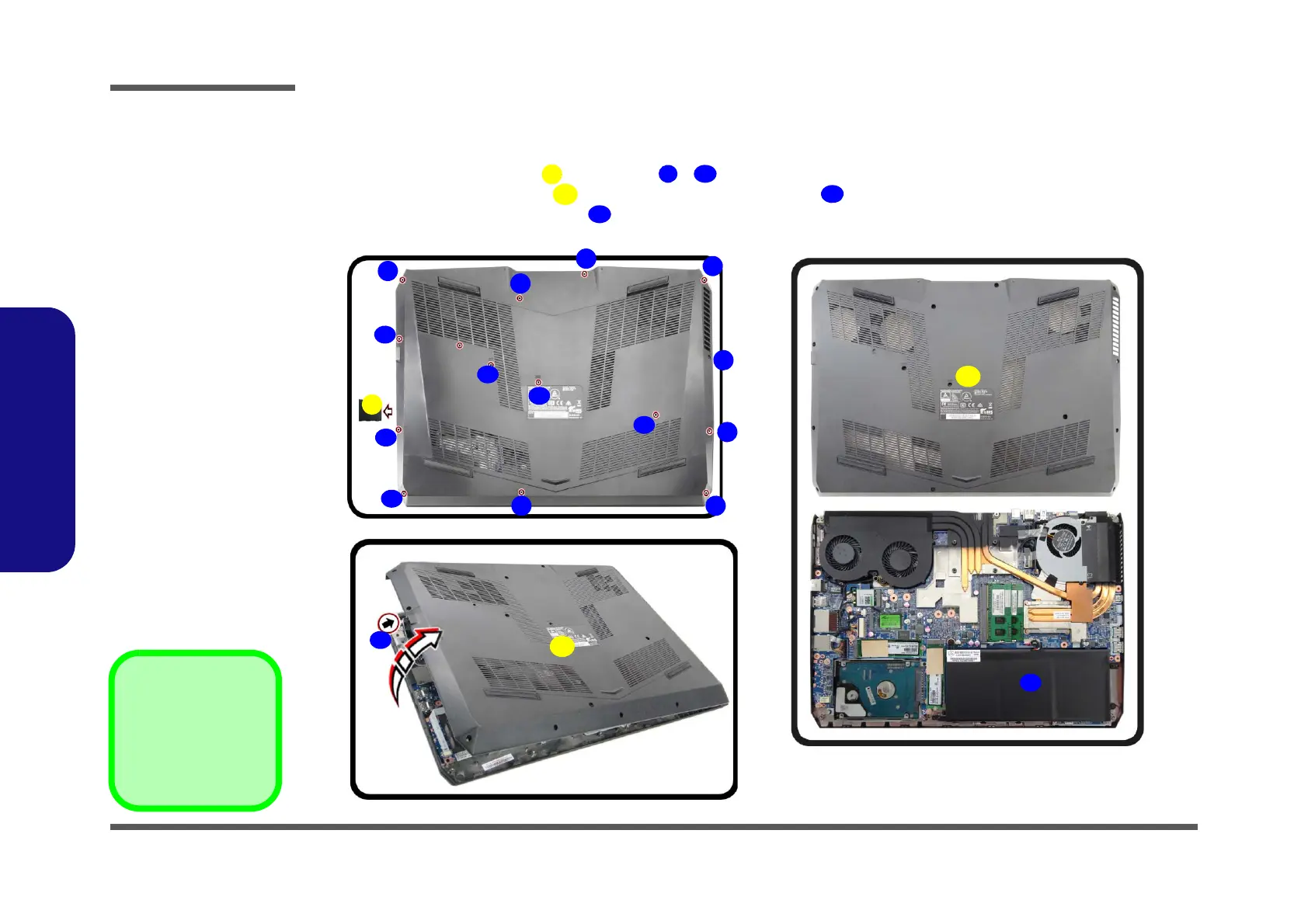

Figure 2
Battery Removal
a. Remove the SD cover
and screws.
b. Remove the bottom case.
c. Locate the battery.
2
a.
c.
1
3
4
5
16
13
18
6
7
17
89
11
12
14
15
10
b.
16
1. SD Card Cover
16. Bottom Case
•14 Screws
To Next Page
