1.Introduction
Mainboard Overview - Bottom (Connectors)

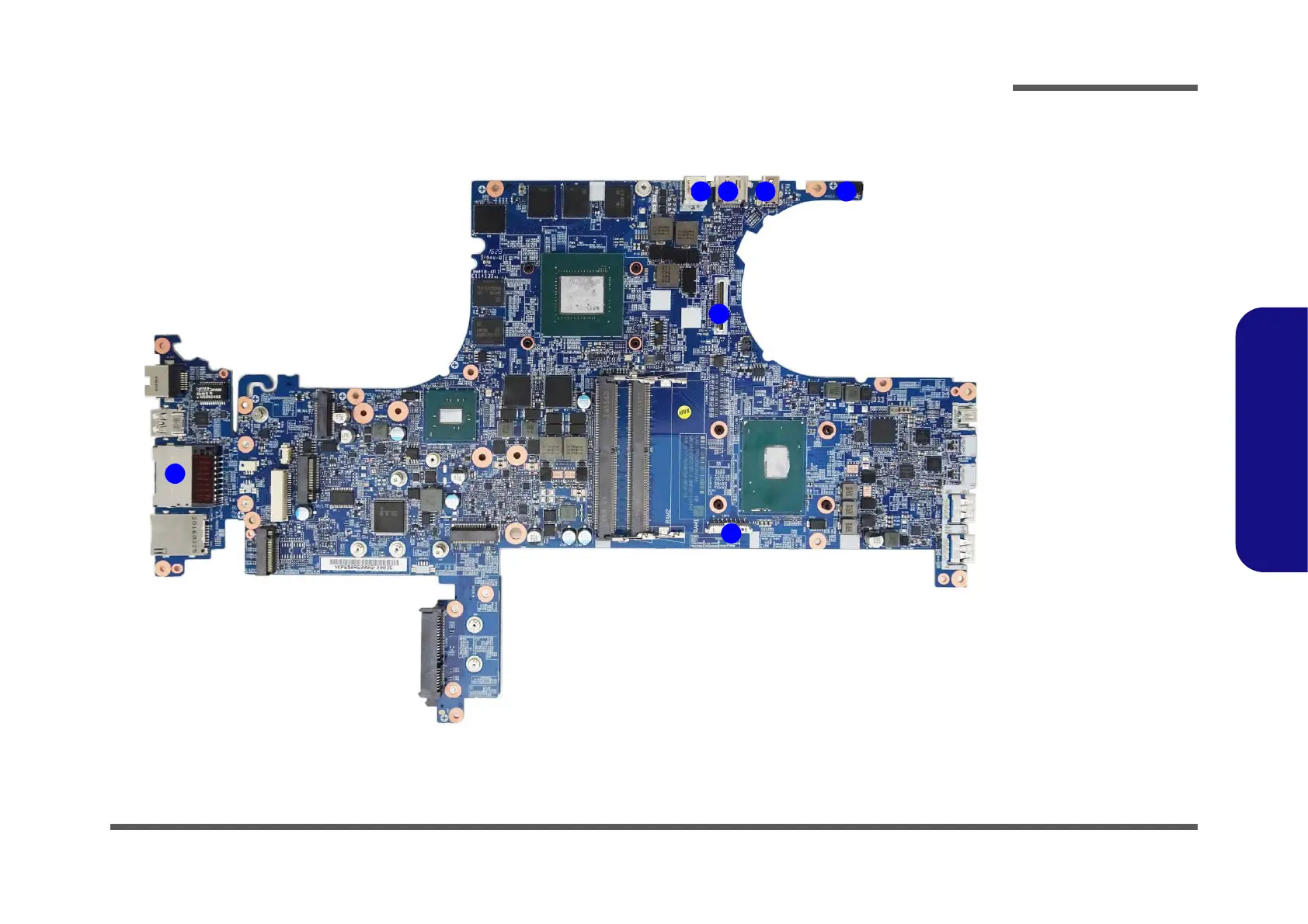

Figure 10
Mainboard Bottom
Connectors
1. Multi-in-1 Card
Reader
2. Battery Connector
3. LCD Cable
Connector
4. CCD Connector
5. Mini Display Port
6. HDMI-Out Port
7. DC-In Jack
11
12
1
2
4
3
6
7
5
