Removing the Wireless LAN Module
1. Turn off the computer, turn it over, remove the battery (page 2 - 6).
2. The Wireless LAN module will be visible at point on the mainboard (Figure 12a).
3. Carefully disconnect the cables & , and then remove the screw
(Figure 12b)
4. The Wireless LAN module (Figure 12c) will pop-up, and you can remove it from the computer.
5.Wireless LAN Module
•1 Screw

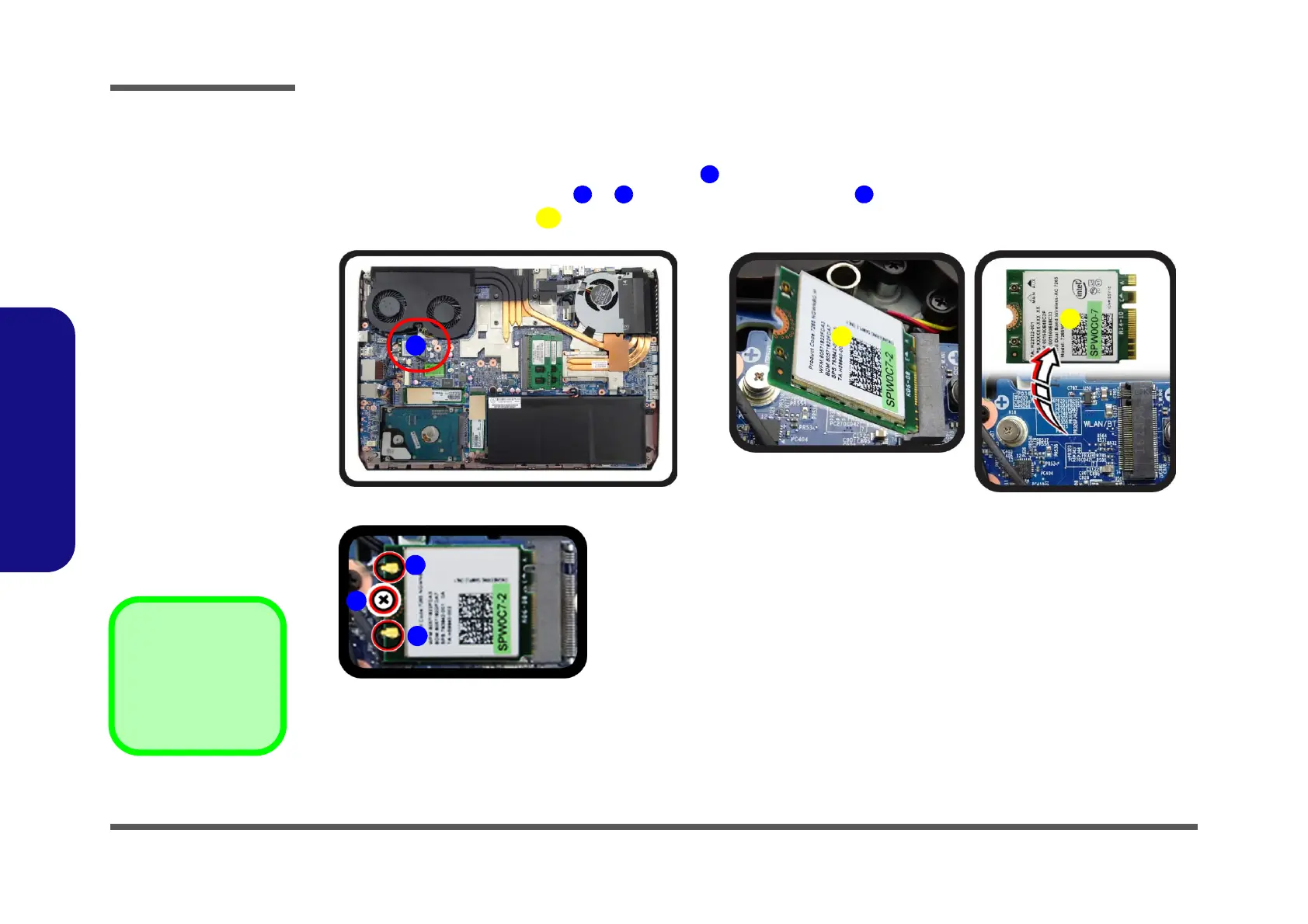

Figure 12
Wireless LAN
Module Removal
a. Locate the WLAN.
b. Disconnect the cables
and remove the screw.
c. The WLAN module will
pop up.
Note: Make sure you
reconnect the antenna
cable to the “1 + 2”
socket (Figure 12b).
