Disassembly
Removing and Installing the M.2 SSD Module 2 - 15
2.Disassembly
M.2 SSD Installation Procedure
1. Place the thermal pad on the module as shown (Figure 11a).
2. Insert the module in the computer
(Figure 11b).
3. Tighten the screw to secure it in place (Figure 11c).
1
2
3
a.
b.
c.
Top
1

Thermal Pad
Be sure to place the thermal pad’s adhesive side down onto
the module surface as shown.
3
2

1. Thermal Pad
2. M2 SSD Module
•1 Screw

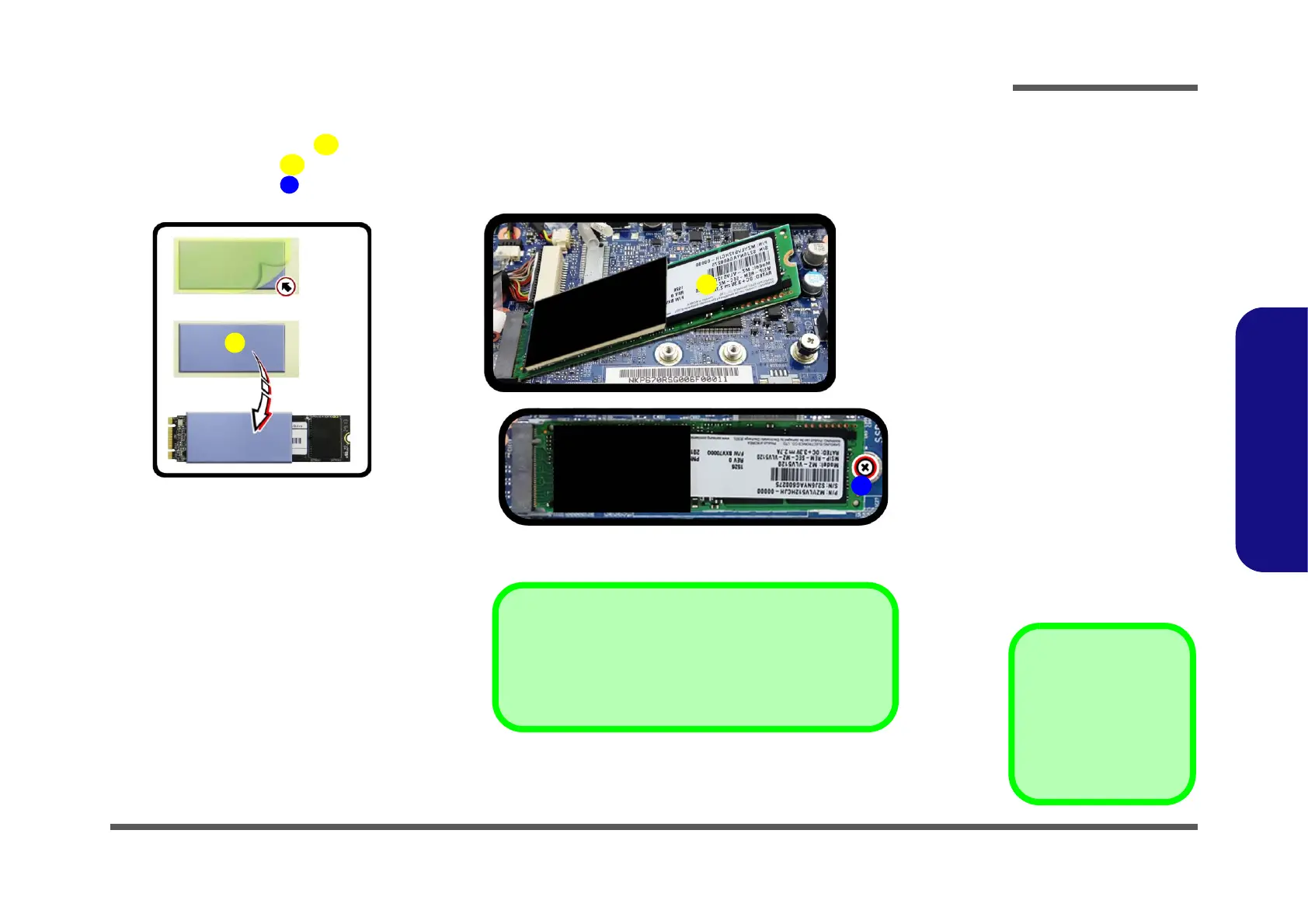

Figure 11
M.2 SSD Module
Installation
a. Place the thermal pad.
b. Insert the module.
c. Tighten the screw.
