Clevo P650HS User Manual

Schematic Diagrams
Subwoofer B - 53

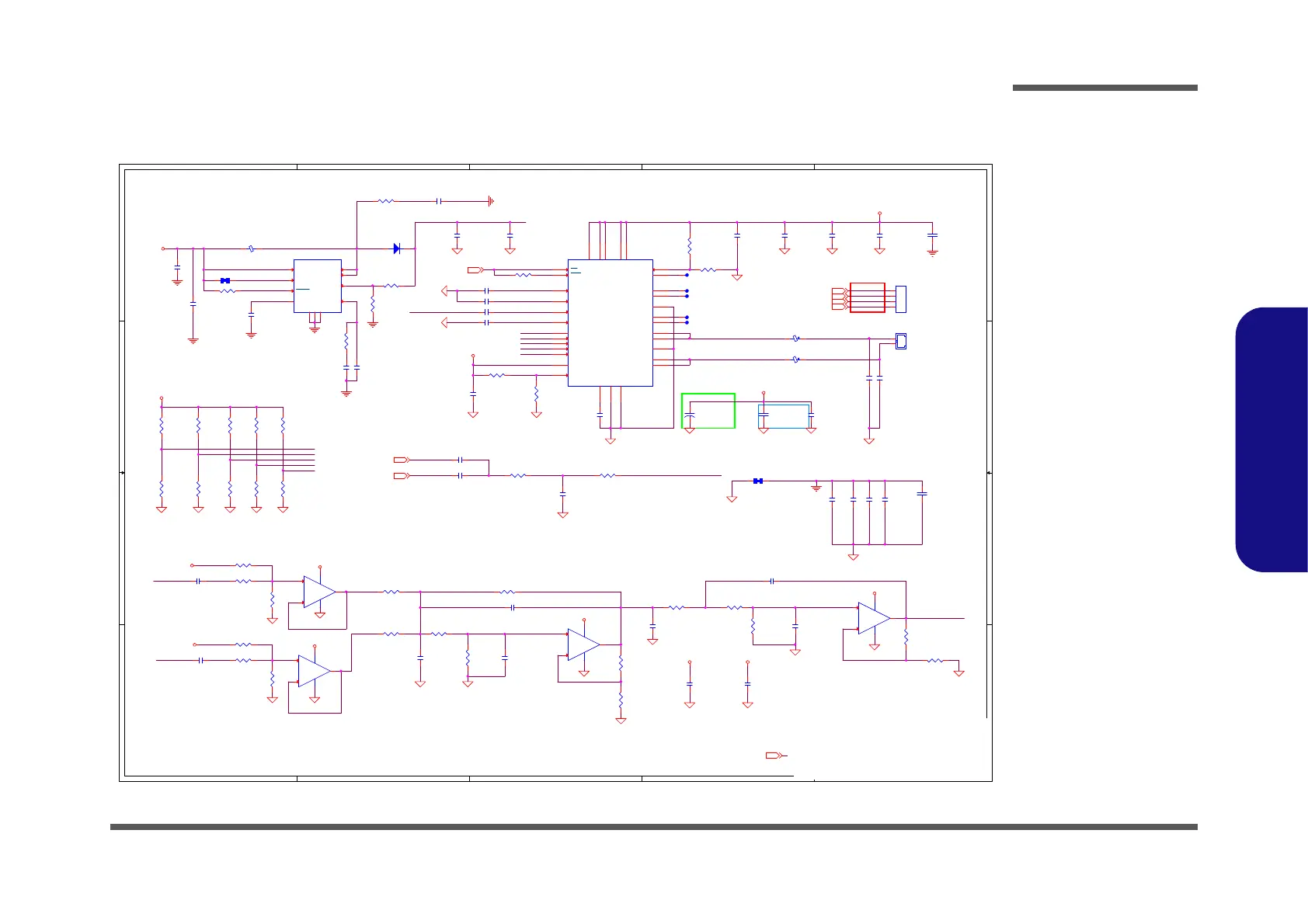

B.Schematic Diagrams
Subwoofer
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
FILTER
SUB Woofer out
FC: 300Hz
Speaker:
٥
٥٥
٥ش
شش
ش6-23-5P15E-0W3
4ȍ,
typ=2.5W
max=4W
40 mil
20 Mil
40 mil
P670Sx ONLY
D01A
6-20-63120-102
6-20-43130-104
P670Sx SPK
20 Mil
D02
3/28 ଥإ footprint, ՠᐗ૞ޣ
ᓳᖞ
GAIN ଖ
FRONT_R
SUB_L
2CH_SUBWOOFER_RC
SINPUT2+
SAMPPWR_SW
SINPUT2-
SOUTPUT1
FRONT_L
SUB_R
SUBWOOFER+
SGAIN0_R
SDRC0_R
SGAIN1_R
SPFLAG
SDRC1_R FRONT_R
FRONT_L
SAMPPWR_EN
2CH_SUBWOOFER_RC
SAMPPWR_FREQ
SDRC1_R
SGAIN1_R
SPMAX
SDRC0_R
SGAIN0_R
SPFLAG
SUBWOOFER-
SOSCIN
SAMP_PWR
2CH_SUBWOOFER_RC
SAMP_3V3LDO
SAMP_3V3LDO
5VS
SAMP_PWR
GND
SAMP_PWR
SAMP_PWR
AUDG_2
AUDG_2
SAMP_PWR
SAMP_PWR
SAMP_PWR
SAMP_PWR SAMP_PWR
SAMP_PWR
SAMP_PWR
GND
GND
GND
GND
GND
GND
GND
AUDG_2
AUDG_2AUDG_2
AUDG_2
AUDG_2
AUDG_2 AUDG_2 AUDG_2 AUDG_2 AUDG_2
AUDG_2
AUDG_2
AUDG_2
AUDG_2
AUDG_2 AUDG_2
AUDG_2
AUDG_2
AUDG_2
AUDG_2
AUDG_2 AUDG_2 AUDG_2
AUDG_2 AUDG_2 AUDG_2
AUDG_2
AUDG_2 AUDG_2
AUDG_2
AUDG_2
AUDG_2
AUDG_2
AUDG_2 AUDG_2
GND
FRONT_R50,51
FRONT_L50,51
AMP_EN51
5VS13,14,16,37,45,50,51,58,59,60,63,68,70,72
ROUT+51
ROUT-51
LOUT+51
LOUT-51
Title
Size Document Number Rev
Date: Sheet
of
6-71-P65S0-D02C
D02C
[52] P670RS SUBWOOFER_S
A3
52 91Wednesday, September 07, 2016
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
Title
Size Document Number Rev
Date: Sheet
of
6-71-P65S0-D02C
D02C
[52] P670RS SUBWOOFER_S
A3
52 91Wednesday, September 07, 2016
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
Title
Size Document Number Rev
Date: Sheet
of
6-71-P65S0-D02C
D02C
[52] P670RS SUBWOOFER_S
A3
52 91Wednesday, September 07, 2016
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SC33
*0.1u_16V_Y5V_04
Subwoofer
SR11
*10K_04
Subwoofer
SR37
*4.3K_1%_04
Subwoofer
SEMC2
*1000p_50V_X7R_04
Subwoofer
SC31
0.1u_10V_X7R_04
Subwoofer
SR26
2.37K_1%_04
Subwoofer
SU3A
LM358G
Subwoofer
+
3
-
2
V+
8
V-
4
OUT
1
SC8
0.1u_16V_Y5V_04
Subwoofer
SC7
0.1u_16V_Y5V_04
Subwoofer
SJ_SUBWOOF1
88266-02001
Subwoofer
2
1
SR12
*10K_04
Subwoofer
SC18
*10u_6.3V_X5R_06
Subwoofer
SC20
10p_50V_NPO_04
Subwoofer
.
SL1 2.2uH_4*4*2.0
Subwoofer
SR27
2.37K_1%_04
Subwoofer
SC15 2200p_50V_X7R_04
Subwoofer
SR39
1.27K_1%_04
Subwoofer
SR4
10K_04
Subwoofer
SC29
0.1u_10V_X7R_04
Subwoofer
SC19
330p_50V_X7R_04
Subwoofer
SR32
0_04
Subwoofer
SU3B
LM358G
Subwoofer
+
5
-
6
V+
8
V-
4
OUT
7
SR13
10K_04
Subwoofer
+
SC14
*220u_25V_V_B
Subwoofer
SR19
100K_04
Subwoofer
SR6 0_04
Subwoofer
SC25
4.7u_25V_X5R_08
Subwoofer
SR38 *100K_04
Subwoofer
SR7
*120K_04
Subwoofer
SU1
APA2607QBI
Subwoofer
VLDO
1
3V3LDO
2
LINP
3
LINN
4
VREF
5
RINN
6
RINP
7
AGND
8
PMAX
9
RVDDP
10
ROUTP1
11
ROUTP2
12
RGND
13
ROUTN1
14
ROUTN2
15
RVDDN
16
SD
17
PFLAG
18
MUTE
19
OSOC
20
OSCIN
21
DRC0
22
DRC1
23
GAIN0
24
GAIN1
25
LVDDN
26
LOUTN1
27
LOUTN2
28
LGND
29
LOUTP1
30
LOUTP2
31
LVPPD
32
Case_GND
33
SR21 18K_1%_04
Subwoofer
SR15 2.2_04
Subwoofer
SR2
*10K_04
Subwoofer
SC35
0.1u_16V_Y5V_04
Subwoofer
SC2 0.1u_10V_X7R_04 Subwoofer
SU4B
LM358G
Subwoofer
+
5
-
6
V+
8
V-
4
OUT
7
SC27
*0.1u_10V_X5R_04
Subwoofer
SR28
*4.3K_1%_04
Subwoofer
SC23
0.1u_10V_X7R_04
Subwoofer
SR18 *0402_short
Subwoofer
SR10
10K_04
Subwoofer
SR35 30K_1%_04
Subwoofer
SR31 *0402_short
Subwoofer
SR17 130K_1%_06
Subwoofer
SC38
*0.1u_10V_X5R_04
Subwoofer
SL2 HCB1005KF-121T20
Subwoofer
SU4A
LM358G
Subwoofer
+
3
-
2
V+
8
V-
4
OUT
1
SR30
0_04
Subwoofer
SR9
10K_04
Subwoofer
SC37 0.47u_6.3V_X5R_04
Subwoofer
SC17
10u_6.3V_X5R_06
Subwoofer
SC22 1000p_50V_X7R_04
Subwoofer
SJ_SPK1
85204-04001
Subwoofer
1
2
3
4
SR25 100K_04
Subwoofer
SC36
0.1u_10V_X7R_04
Subwoofer
SR34 100K_04
Subwoofer
SR8
120K_04
Subwoofer
SR3
10K_04
Subwoofer
SC10 0.1u_16V_Y5V_04
Subwoofer
SC1 0.1u_10V_X7R_04 Subwoofer
SEMC1
*1000p_50V_X7R_04
Subwoofer
SC12
0.1u_16V_Y5V_04
Subwoofer
SC28 0.1u_10V_X7R_04
Subwoofer
SC39 1000p_50V_X7R_04
Subwoofer
SC24
4.7u_25V_X5R_08
Subwoofer
SR1
*10K_04
Subwoofer
SD1
FMS3004-AS-H
Subwoofer
A C
SR29
*100K_04
Subwoofer
SC4 0.1u_10V_X7R_04 Subwoofer
SC13
0.1u_16V_Y5V_04
Subwoofer
SC21 1000p_50V_X7R_04
Subwoofer
SR22 *0_04
Subwoofer
SC3
0.1u_10V_X7R_04
Subwoofer
SC30 0.1u_16V_Y5V_04
Subwoofer
SC34
*0.1u_16V_Y5V_04
Subwoofer
SR40 *15.4K_1%_04
Subwoofer
SR42 10_04
Subwoofer
SC6
0.1u_16V_Y5V_04
Subwoofer
SC16 0.1u_16V_Y5V_04
Subwoofer
SR20
10K_04
Subwoofer
SC32
0.1u_10V_X7R_04
Subwoofer
SR41 *3.24K_1%_04
Subwoofer
SR36
2.37K_1%_04
Subwoofer
SU2
G5110
Subwoofer
IN
8
FB
2
SHDN
3
LX1
6
GND
5
COMP
1
GND
4
LX2
7
FREQ
9
SS
10
GND_Thermal
11
SC5 0.1u_10V_X7R_04 Subwoofer
SR14
1.27K_1%_04
Subwoofer
SC40
15000p_50V_X7R_06
Subwoofer
SR23
100K_04
Subwoofer
SR33
100K_04
Subwoofer
SR24
30K_1%_04
Subwoofer
SL3 HCB1005KF-121T20
Subwoofer
SR5 *10K_04
Subwoofer
SC26
0.1u_16V_Y5V_04
Subwoofer
SC9
*0.1u_16V_Y5V_04
Subwoofer
SR16
18K_1%_06
Subwoofer
SC11
0.1u_16V_Y5V_04
Subwoofer
Sheet 52 of 91
Subwoofer
