Disassembly
Removing the Battery 2 - 7
2.Disassembly
5. Carefully disconnect the cable , then remove screws - (Figure 3b).
6. Lift the battery off the computer (Figure 3e
).
7. Reinsert the bottom case starting from point
as shown (Figure 3f) to avoid damaging the rear eSATA/USB 3.0
port. Tighten the screws to secure the bottom case in place.

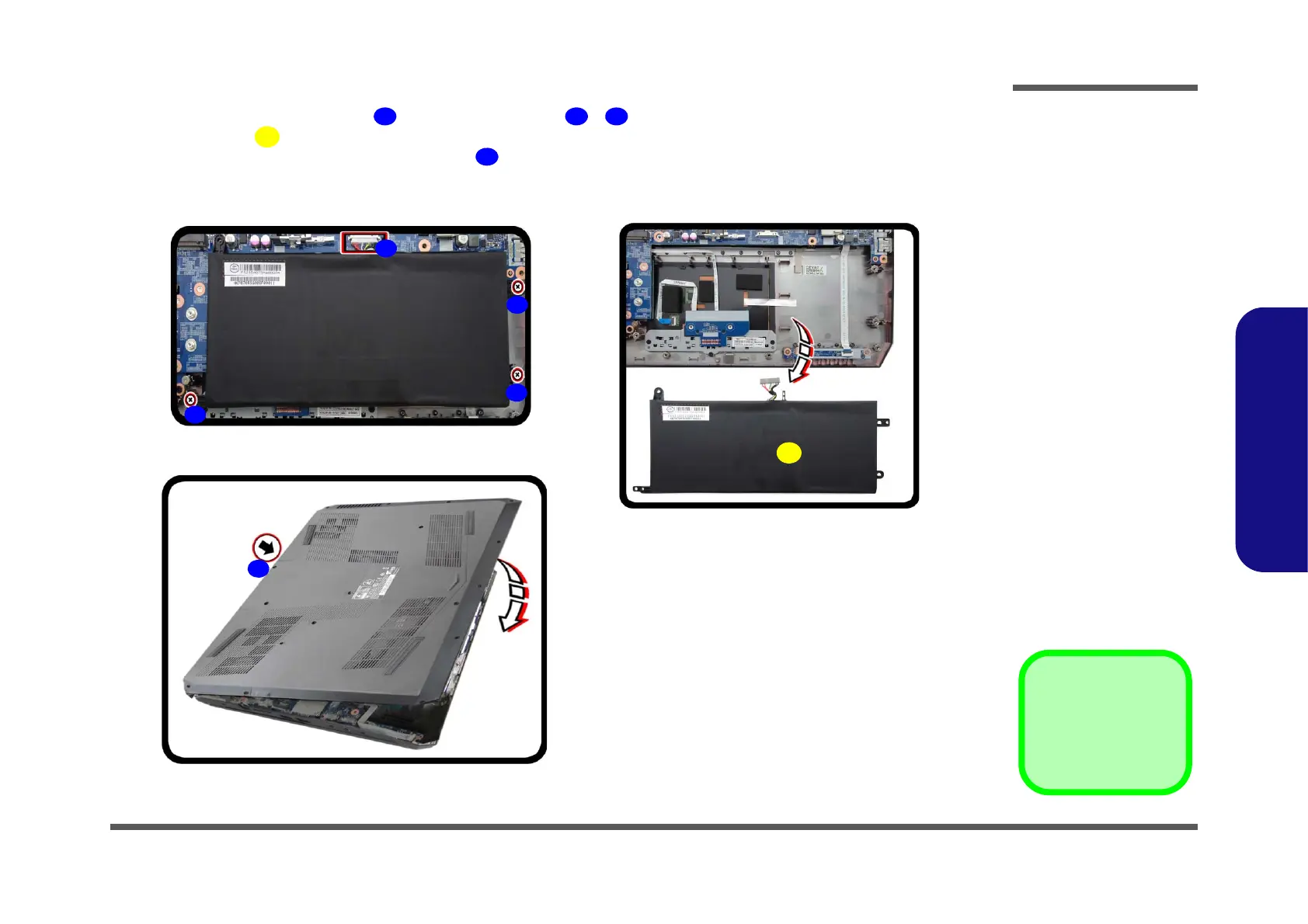

Figure 3
Battery Removal
(cont’d.)
d. Disconnect the cable and
remove the screws.
e. Lift the battery off the
computer.
f. Reinsert the bottom case
and tighten the screws.
To Next Page
