Clevo P775TM User Manual

Introduction
1 - 10 Mainboard Overview - Top (Connectors)
1.Introduction
Mainboard Overview - Top (Connectors)

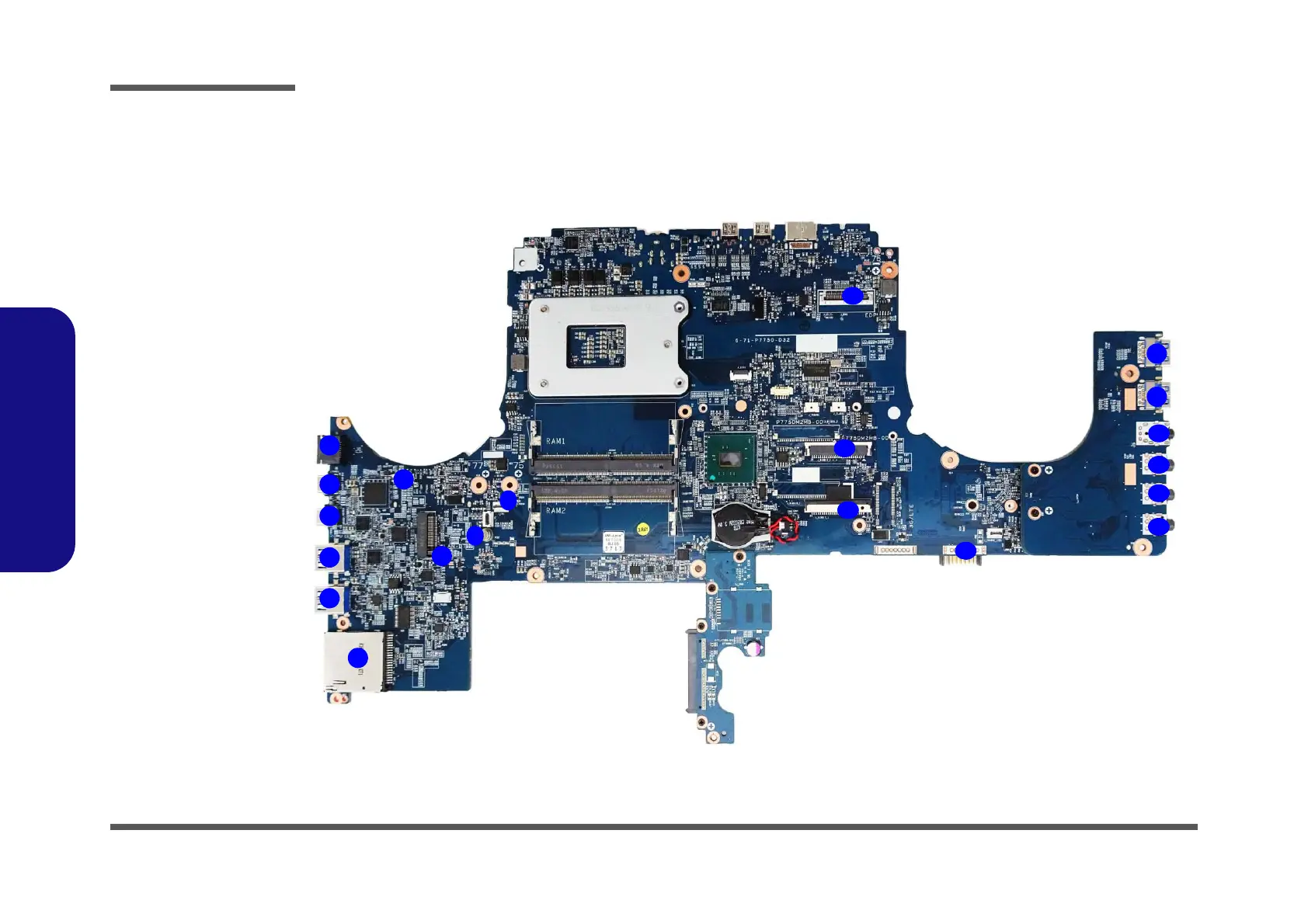

Figure 9
Mainboard Top
Connectors
1. RJ-45 LAN Jack
2. USB 3.1/
Thunderbolt
Combo Port
3. USB 3.1 Port
4. USB 3.0/3.1 Port
5. Multi-in-1 Card
Reader
6. KB LED
Connector
7. WLAN Card
Connector
8. Fingerprint
Connector
9. TP FFC Cable
Connector
10.Panel Cable
Connector
11. Keyboard Cable
Connector
12.Battery
Connector
13.Line-In Jack
14.Microphone Jack
15.Line-Out Jack
16.Headphone and
S/PDIF Combo
Jack
1
4
5
6
7
8
14
9
12
13
15
2
3
10
11
11
4
16
4
4
