Clevo P775TM - Removing the Wigig Module

Disassembly
Removing the WiGig Module 2 - 19
2.Disassembly
Removing the WiGig Module
1. Turn off the computer, remove the battery (page 2 - 5), CPU (page 2 - 12) and the keyboard (page 2 - 15).
2. The module will be visible at point under the keyboard (Figure 13a).
3. Carefully disconnect cables - , then remove screw from the module socket (Figure 13b).
4. The module will pop-up (Figure 13c).
5. Lift the module (Figure 13d) up and off the computer
.

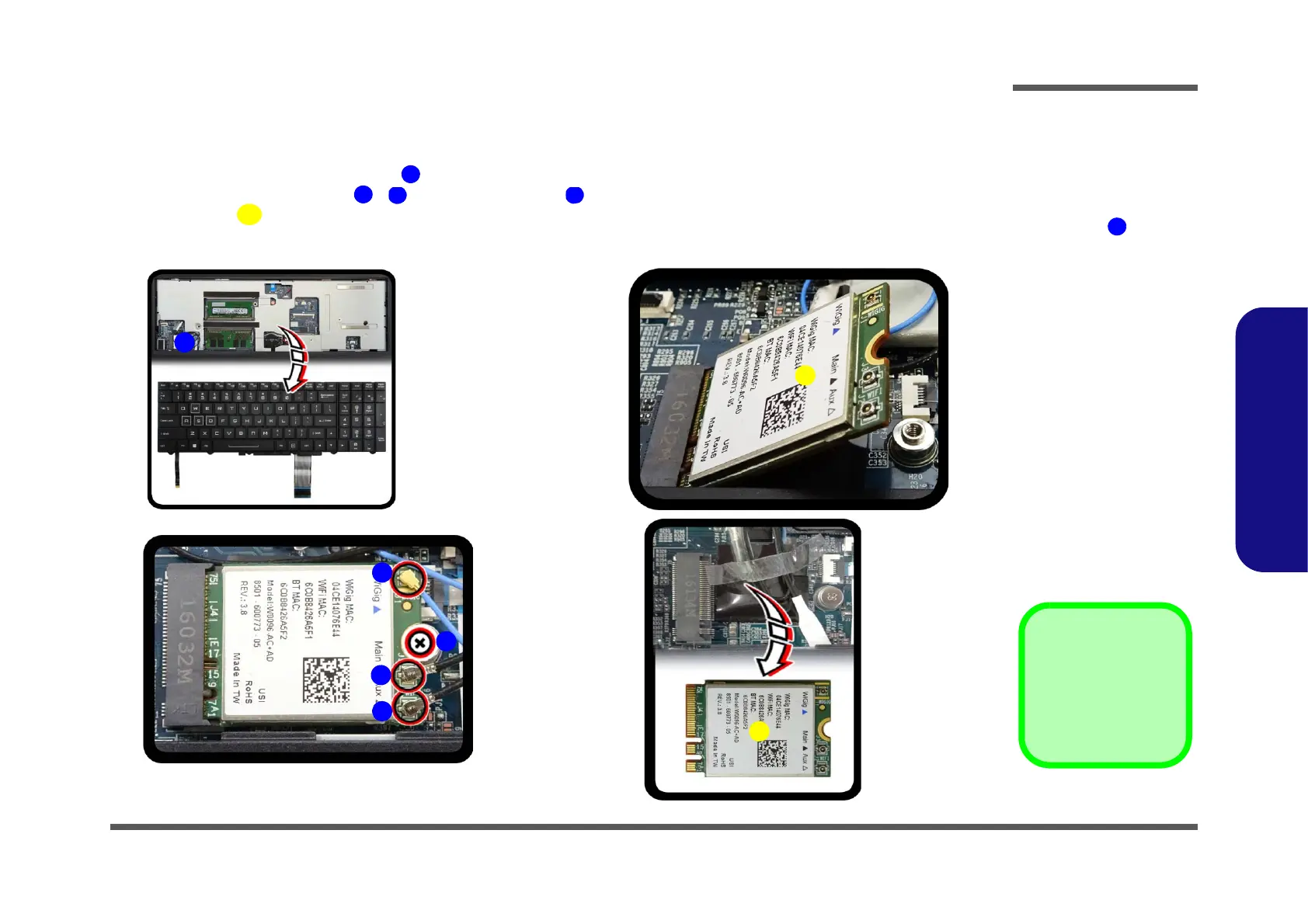

Figure 14
WiGig Module
Removal
a. The module will be visi-
ble at point under the
keyboard
b. Disconnect the cables
and remove the screw.
c. The module will pop up.
d. Lift the module out.
1
1
2
4
5
6
6
b.
a.
d.
2
3
6
c.
4
1
5

6. WiGig Module
•1 Screw
