Removing the Hinge Cover 2 - 19
2.Disassembly
Removing the Hinge Cover
1. Turn off the computer, remove the battery (page 2 - 5).
2. The hinge cover will be visible at point .
3. Remove the screw

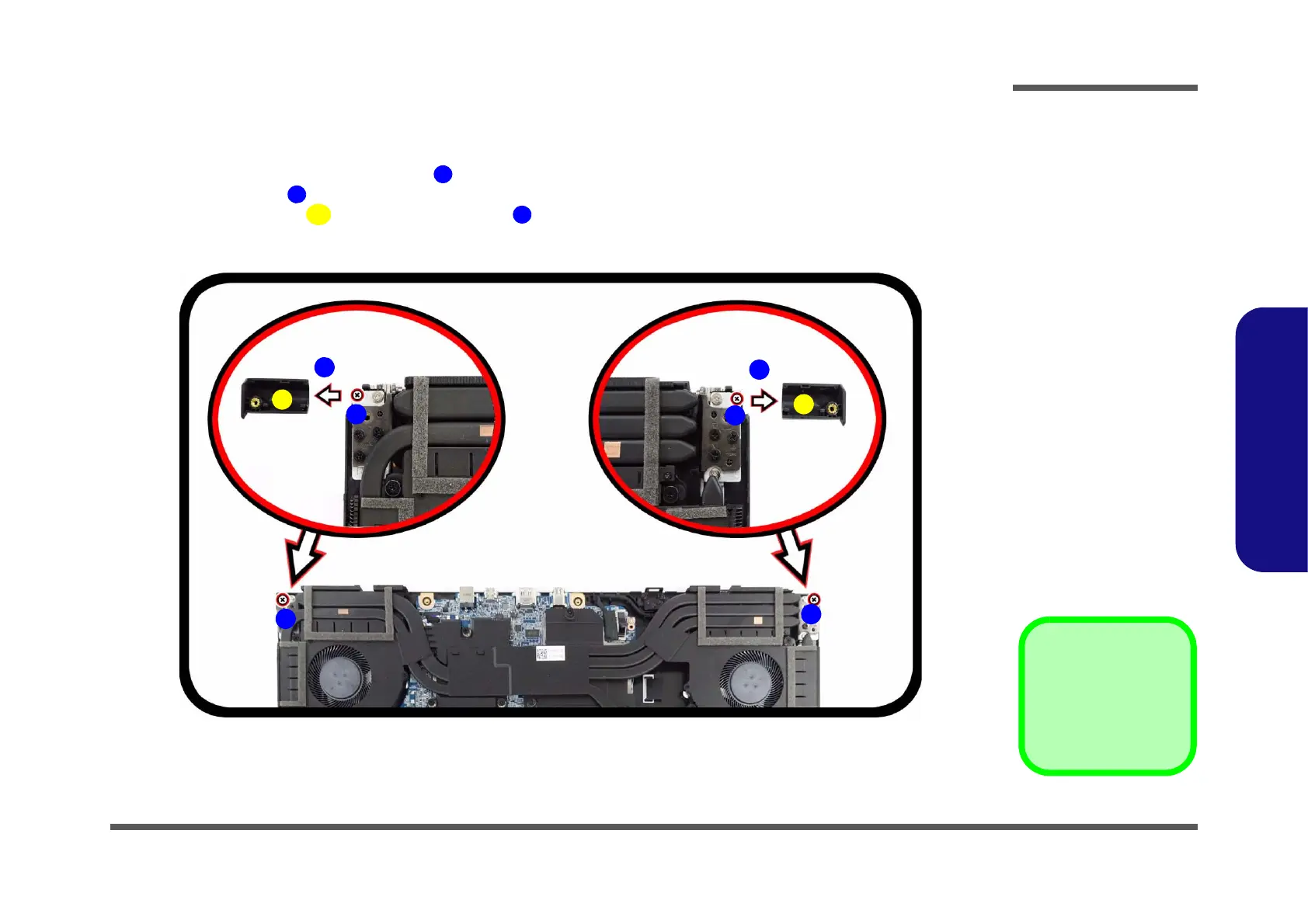

(Figure 14a).
4. Slide the hinge cover out to a short distance
(Figure 14b).
5. Carefully lift the hinge cover upward by 10-20 degrees as shown to remove it from the computer.
1
2
3
4
a.
1
2
4
1
2
4
3
b.
3

3.Hinge Cover
•1 Screw
Figure 14
Hinge Cover
Removal
a. Remove the screw.
b. Slide the hinge cover
out.
c. Carefully lift the hinge
cover upward as shown.
