Clevo PD70PNT - Removing the Wireless LAN Module

Disassembly
Removing the Wireless LAN Module 2 - 17
2.Disassembly
Removing the Wireless LAN Module
1. Turn off the computer, remove the battery (page 2 - 5), and SSD-1 (page 2 - 15).
2. The Wireless LAN module will be visible at point on the mainboard (Figure 13a).
3. Carefully disconnect the cables & , and then remove the screw
(Figure 13b)
4. The Wireless LAN module (Figure 13c) will pop-up, and you can remove it from the computer.
1
2
3
4
5
b.
c.
a.
1
2
3
4
5
5

5.Wireless LAN Module
•1 Screw
Figure 13
Wireless LAN
Module Removal

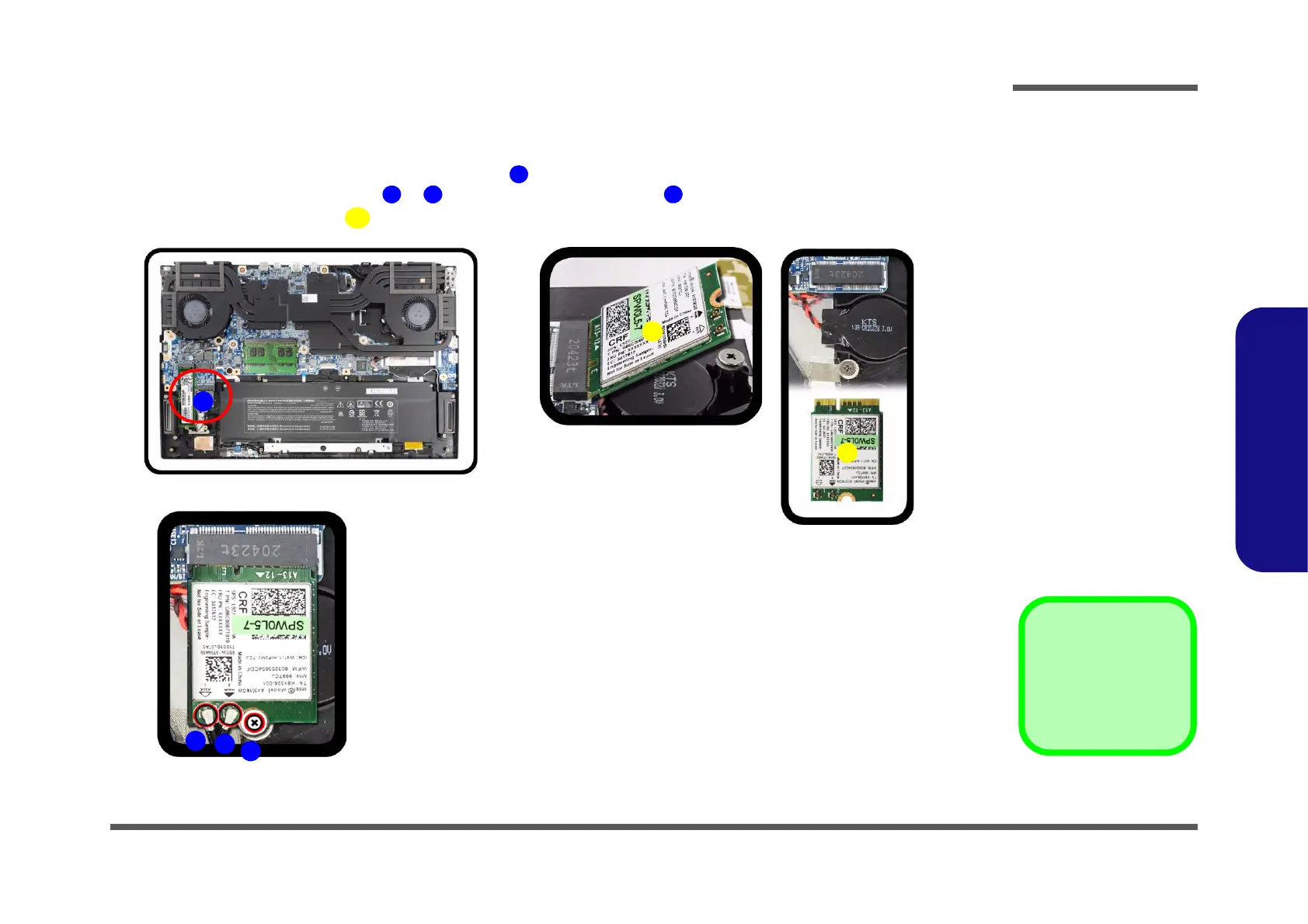

a. Locate the WLAN.
b. Disconnect the cables
and remove the screw.
c. The WLAN module will
pop up.
Note: Make sure you
reconnect the antenna
cable to the “1 + 2”
socket (Figure 13b).
