Disassembly
2 - 6 Removing the System Memory (RAM)
2.Disassembly
Removing the System Memory (RAM)

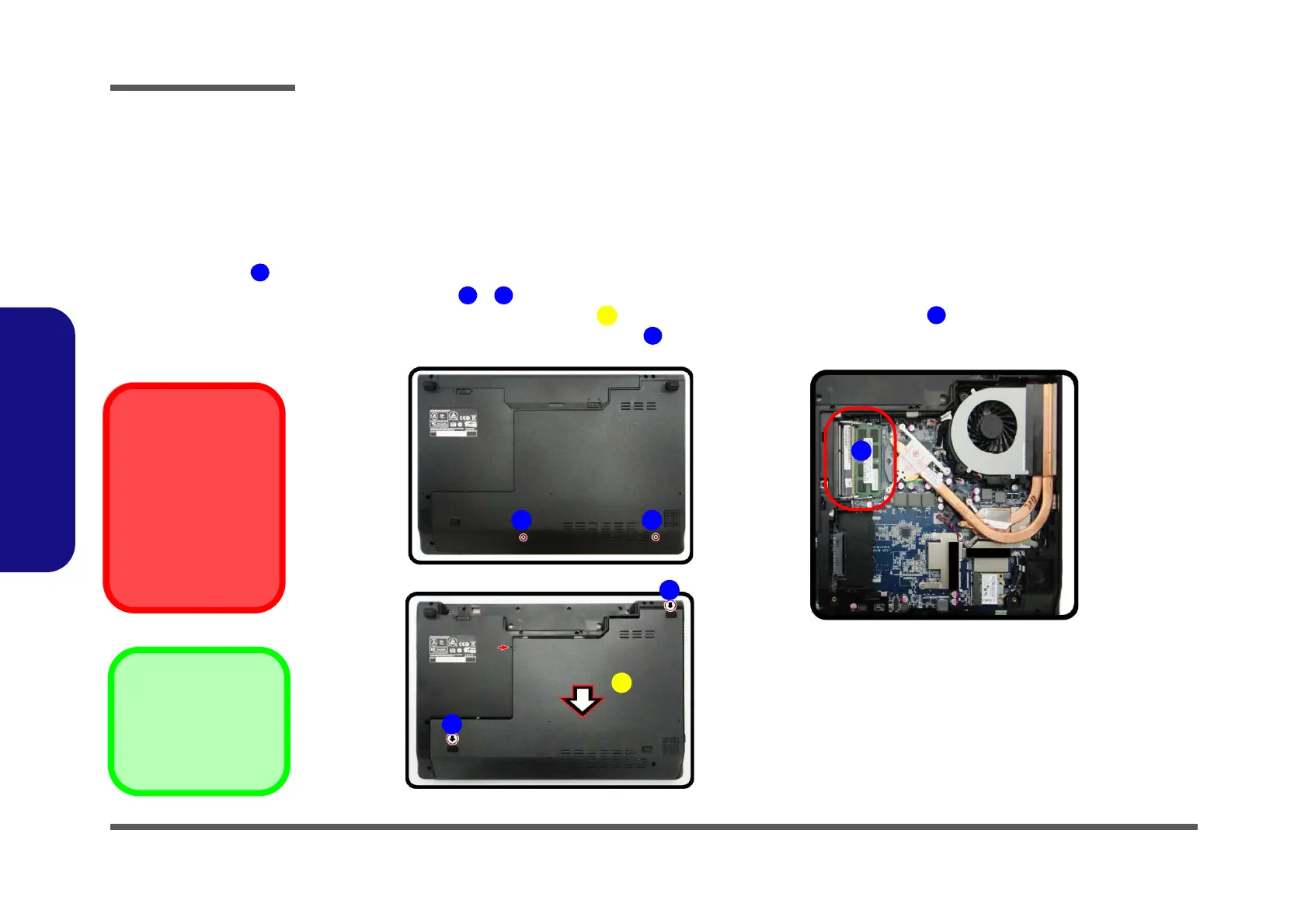

Figure 2
RAM Module
Removal
a. Remove the screws.
b. Slide the component
bay cover out.
c. The RAM modules will
be visible at point
on the mainboard.
Contact Warning
Be careful not to touch
the metal pins on the
module’s connecting
edge. Even the cleanest
hands have oils which
can attract particles, and
degrade the module’s
performance.
The computer has two memory sockets for 200 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting
DDRIII (DDR3) Up to 1333/1600MHz. The main memory can be expanded up to 8GB. The SO-DIMM modules sup-
ported are 1024MB and 2048MB DDRIII Modules. The total memory size is automatically detected by the POST rou-
tine once you turn on your computer.
Memory Upgrade Process
3. Component Bay Cov-
er
•2 Screws
1. Turn off the computer, turn it over and remove the battery (page 2 - 5).
2. Remove screws
- from the component bay cover (Figure 2a).
3. Remove the component bay cover
(Figure 2b) by sliding the cover at point in the direction of arrow.
4. The RAM modules will be visible at point on the mainboard (Figure 2c).
To Next Page
