Removing the Optical (CD/DVD) Device

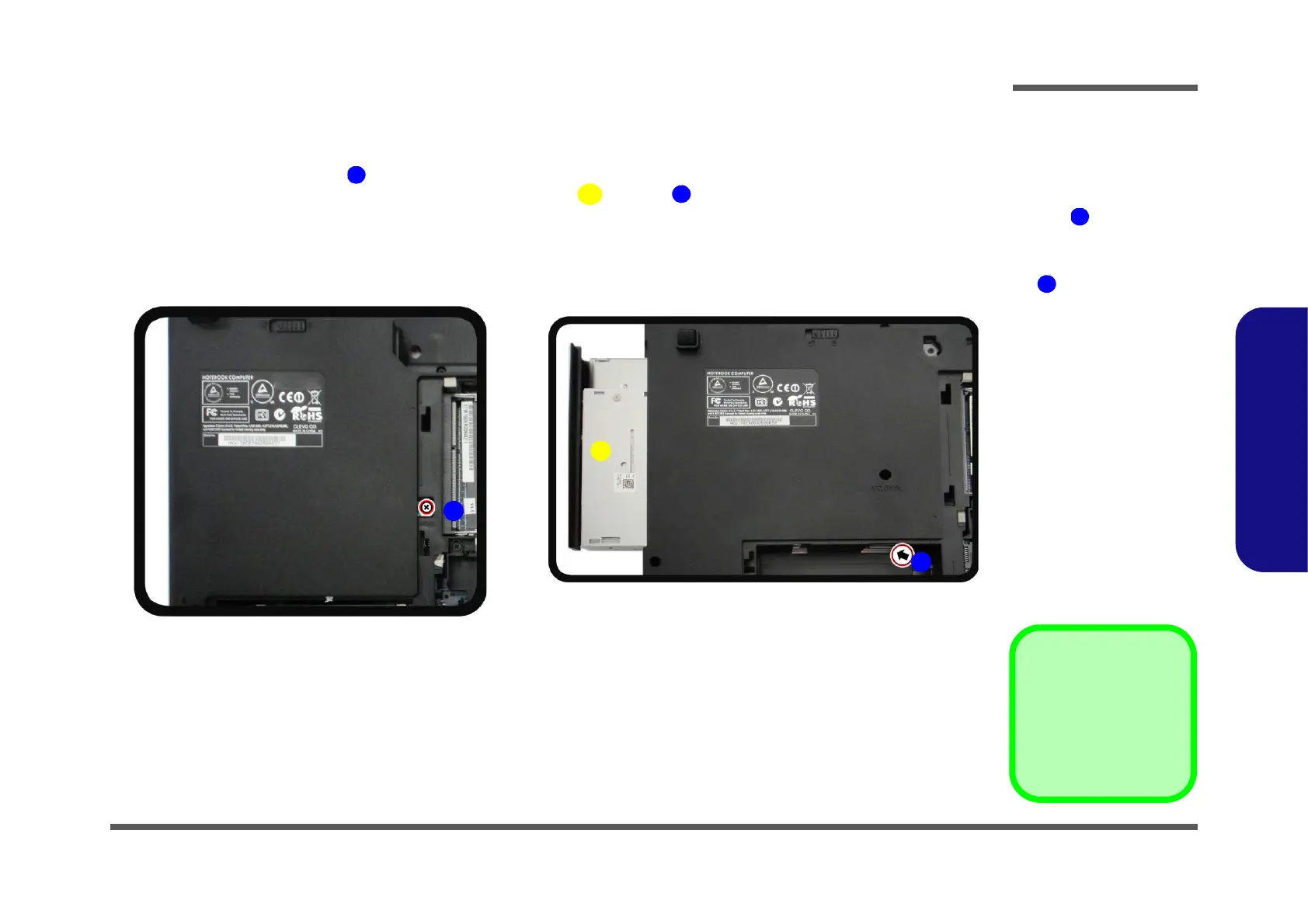

Figure 7
Optical Device
Removal
a. Remove the screw at
point .
b. Use a screwdriver to
carefully push out the
optical device at point
.
1. Turn off the computer, remove the battery (page 2 - 5) and hard disk (page 2 - 8).
2. Remove the screw at point (Figure 7a
).
3. Use a screwdriver to carefully push out the optical device
at point (Figure 7b).
4. Insert the new device and carefully slide it into the computer (the device only fits one way. DO NOT FORCE IT; The
screw holes should line up).
5. Restart the computer to allow it to automatically detect the new device.
3. Optical Device
•1 Screw
