System Map: Front, Left, Right, Rear & Bottom Views
1
Front
14
Bottom
16
Figure 5

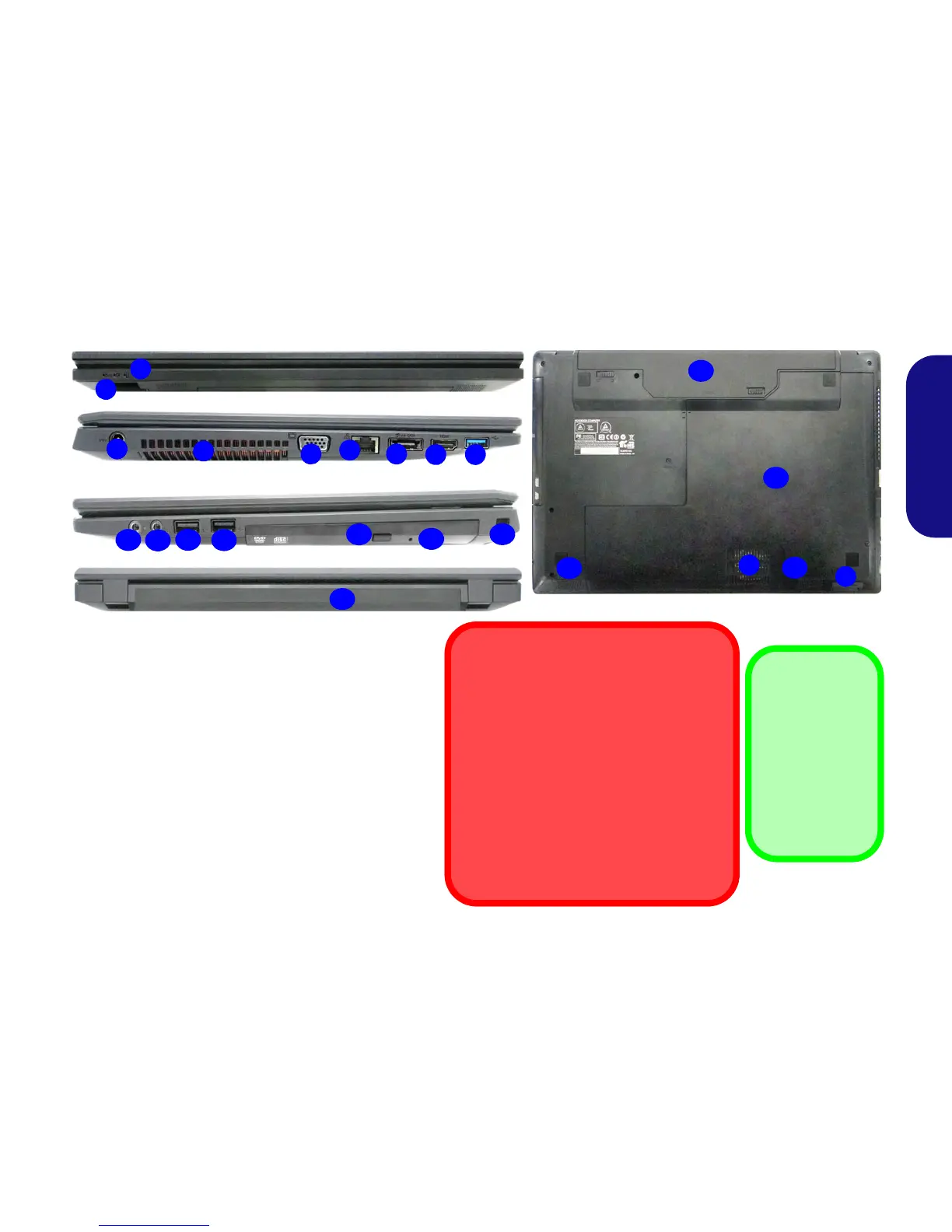

Front, Left, Right, Rear & Bottom Views
1. LED Indicators
2. Multi-in-1 Card Reader
3. DC-In Jack
4. Vent
5. External Monitor Port
6. RJ-45 LAN Jack
7. Combined eSATA/USB
3.0 Port
8. HDMI-Out Port
9. USB 3.0 Port
10. Microphone-In Jack
11. Headphone-Out Jack
12. USB 2.0 Ports
13. Optical Device Drive Bay
14. Emergency Eject Hole
15. Security Lock Slot
16. Battery
17. Component Bay Cover
18. Speakers
2
8
4
6
3
Left
Right
5
Rear
10
12
9
7
13
15
17
4
18
18
2
Overheating
To prevent your computer from overheating
make sure nothing blocks any vent while the
computer is in use.
Disc Emergency Eject
If you need to manually eject a disc (e.g. due
to an unexpected power interruption) you
may push the end of a straightened paper
clip into the emergency eject hole. Do not
use a sharpened pencil or similar object that
may break and become lodged in the hole.
USB 3.0 Port
USB 3.0 will
transfer data
much faster than
USB 2.0, and is
backwards-com-
patible with USB
2.0.
