ClimateMaster Water-Source Heat Pumps
8
Horizontal Installation, Cont’d.

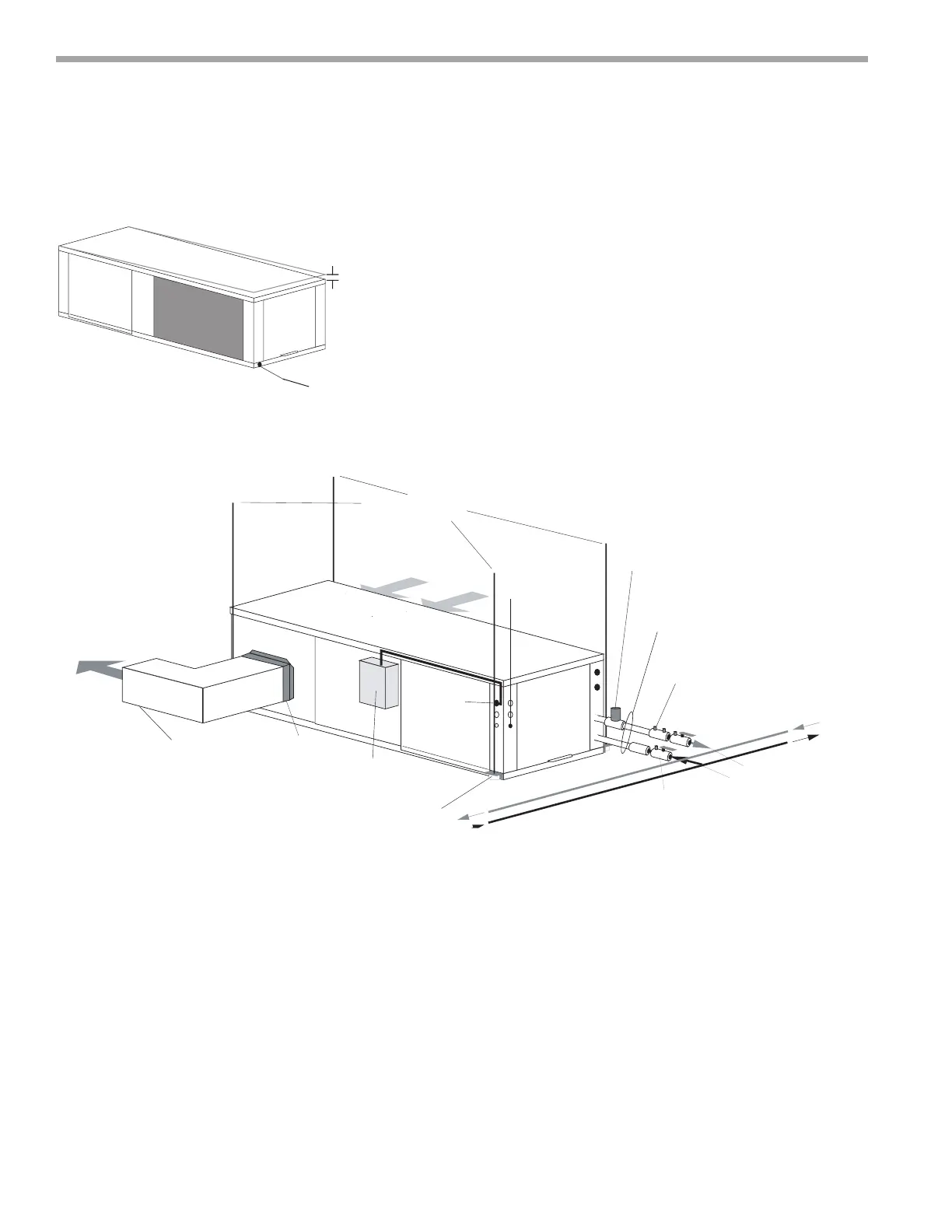

Figure 3: Typical Horizontal Unit Installation
Air Coil - To obtain maximum performance, the air coil
should be cleaned before start-up. A 10% solution of
dishwasher detergent and water is recommended for
both sides of the coil. A thorough water rinse should
follow. UV based anti-bacterial systems may damage
coated air coils.
HORIZONTAL INSTALLATION
(by others)
(by others)
Cableado
del termostato
Válvula compensadora opcional
Salida de agua
Entrada de agua
Válvula invertida opcional para
control de baja presión de agua
(puede montarse en forma interna)
Válvula a bola con tapón
P/T integrado opcional
Manguera trenzada de
acero inoxidable con accesorio
giratorio en “J”
Circuito
de edificación
Disyuntor de
energía de la unidad
(fabricado por terceros)
Alimentación
de energía de
la unidad
Conducto de alimentación
aislado con un codo (mínimo)
de 90 grados para reducir el
ruido del aire
Retorno de
aire
Aire de alimentación
Cableado de
alimentación
de energía
Varillas Roscadas de 3/8"
(fabricadas por terceros)
Colgador
de la unidad
Thermostat
Wiring
Water In
Water Out
Optional Balancing Valve
Ball Valve with optional
integral P/T plug
Stainless steel braid hose
with integral "J" swivel
Building
Loop
Unit Power
Disconnect
Power Wiring
Insulated supply duct with
at least one 90 deg elbow
to reduce air noise
Return Air
Supply Air
Unit Hanger
3/8" [10mm] threaded rods
Unit Power
Flexible Duct
Connector
Figure 3: Typical Horizontal Unit Installation
Optional Low Pressure Drop Water
Control Valve
(can be internally mounted
on some models)
Notice! Installation Note - Ducted Return: Many
horizontal WSHPs are installed in a return air ceiling
plenum application (above ceiling). Vertical WSHPs are
commonly installed in a mechanical room with free return
(e.g. louvered door). Therefore, lter rails are the industry
standard and are included on ClimateMaster commercial
heat pumps for the purposes of holding the lter only. For
ducted return applications, the lter rail must be removed
and replaced with a duct ange or lter frame. Canvas
or exible connectors should also be used to minimize
vibration between the unit and ductwork.
Figure 2: Horizontal Unit Pitch
1/4” (6.4mm) pitch
toward drain for drainage
Drain
Connection
