CLIMAVENETA BRA2 0021 - Performance Curves and Unit Startup; Pressure Drop and Head Information

BRA2 - BRN2 EN
19
U I A

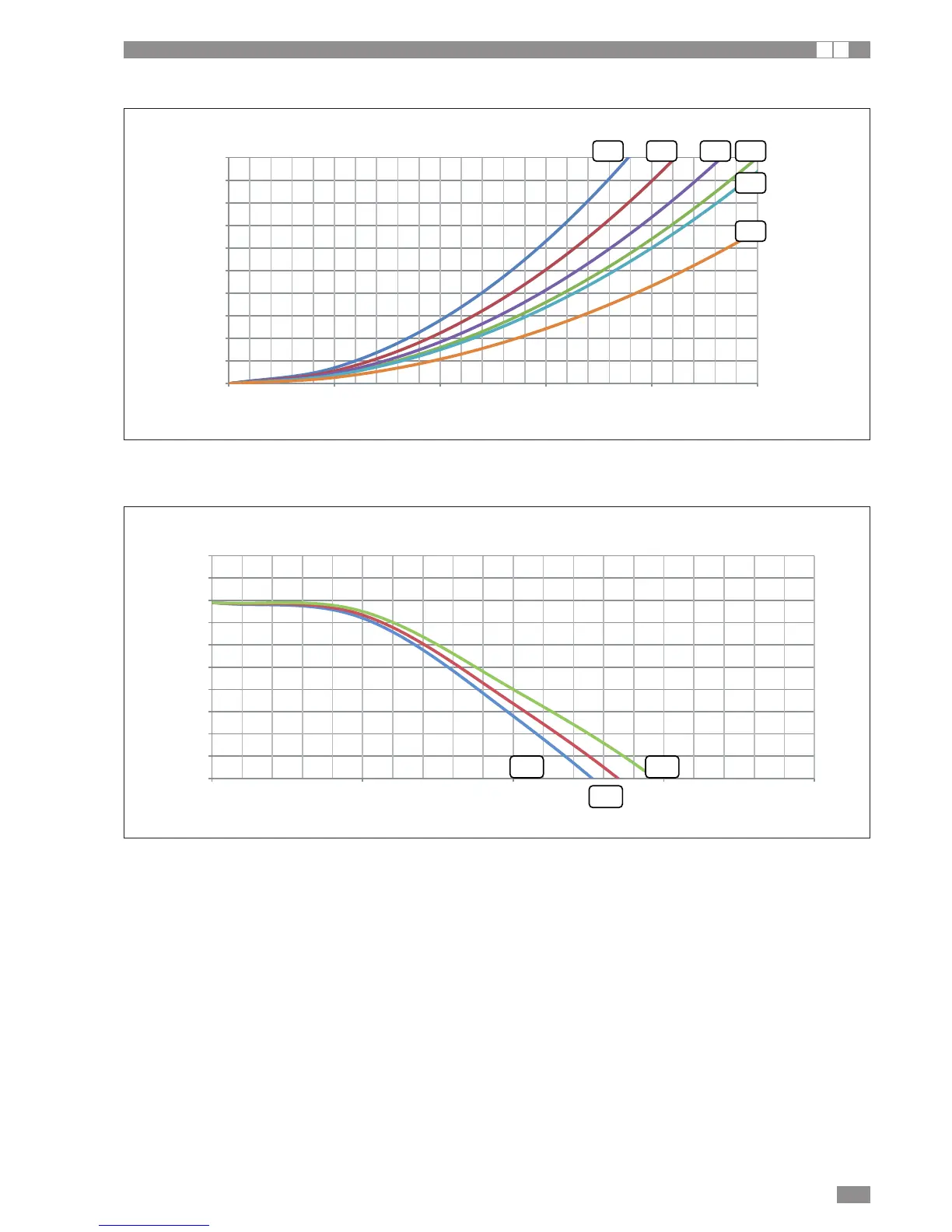

PRESSURE DROP AND PRESSURE HEAD AVAILABLE TO SYSTEM
I A
SYSTEM HEAT EXCHANGER PRESSURE DROP, UNIT WITHOUT HYDRONIC KIT
0
10
20
30
40
50
60
70
80
90
100
012345
Pressure drop [kPa]
System heat exchanger pressure drop
Water flow-rate [m
3
/h]
0021 0025 0041 0031
0051
0061
AVAILABLE PRESSURE HEAD, UNIT WITH HYDRONIC KIT
0
10
20
30
40
50
60
70
80
90
100
0123 4
Available pressure head [kPa]
Water flow-rate [m
3
/h]
Available pressure head
0025
0021 0031
