Climecon CLEANMASTER Series Installation Manual

clime con.fi
15
Lämmittäjänkatu 4 A, 00880 Helsinki, FINLAND · Tel. +358 (0)20 198 6600
© Climecon
123,0
123,0
1
2
6
7
5
3 4

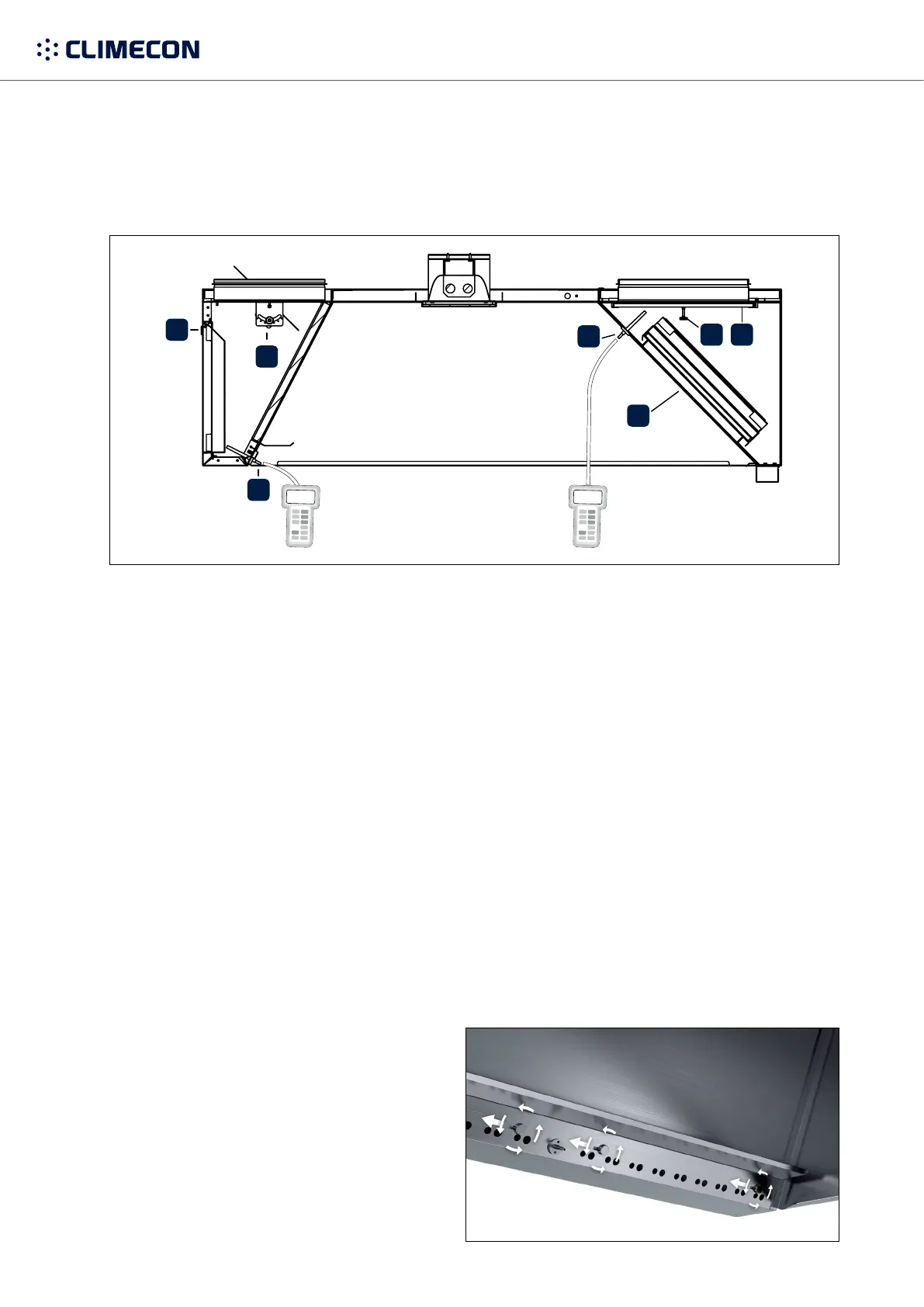

11. Adjustment instructions for CleanMaster® hoods
Adjusting the exhaust air:
• Separate the grease separator cartridges (1) care-


trough.
• 
• Make the suction opening larger or smaller by mov-
ing the damper in its slide rails.
• Install the separator cartridge/cartridges in place
properly.
• Measure the pressure loss from the chamber’s
measuring connection (2).
• Repeat the steps above if necessary.
• 
check that the separator cartridges are properly
installed.
Adjusting supply air
• First, measure the pressure loss from the sup-
ply air chamber’s measuring connection (5).
• 

• Supply air can be controlled by turning
the control damper (7) inside the supply
air chamber.
• 
• Reinstall the supply air modules (6).
• Measure the pressure loss from the supply air
chamber’s measuring connection (5).
• Repeat the steps above if necessary.
Adjusting the control air

control air. These adjustments can be made



the hand knobs.
4.1 Adjusting supply air, exhaust air and control air

Climecon CLEANMASTER Series Specifications

General

Brand	Climecon
Model	CLEANMASTER Series
Category	Ventilation Hood
Language	English
