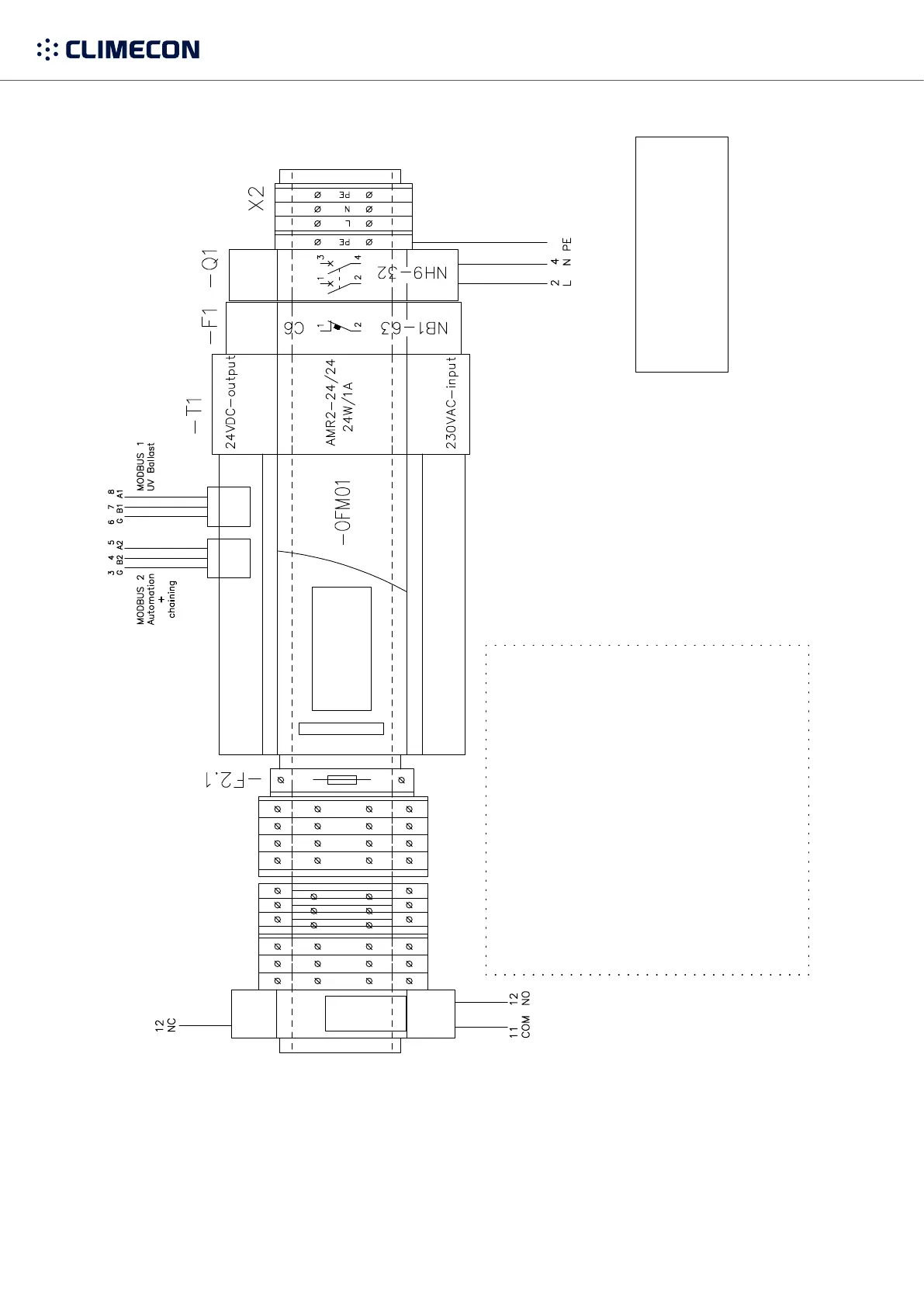

R10 relay / potential free
“General fault” –information
for an automation
PIN 11: COM (Common)
PIN 12: NC (Normal Closed)
PIN 14: NO (Normal Open)
R10
X10
X10 Connection points
24V DC output for building automation
USE WITH A GALVANIC ISOLATED DIGITAL INPUT (DI)
PIN 11 Common plus (24DC out +)
PIN 23 Unit is running
PIN 24 General fault
PIN 25 Sevice (15 500 h -> ON/OFF 1s interval)
(16 000 h -> ON)
PIN 26 UV fault (Lamp or ballast fault)
PIN 27 SlideSafe not armed
PIN 28 Automation permit
Pressure transmitter: PIN 5-6
PIN 5 2-10 V (range: 0-100 Pa)
PIN 6 GND
Permit to run (building automation or local switch)
USE WITH A POTENTIAL FREE (DO)
PIN 3-4 (DI)
INPUT Q1
230VAC IN, 50Hz
C10A
USE THIS POINT TO ELECTRIFY
THE CLEANMASTER HOOD
ATTENTION!
USE ALLWAYS SAFETY SWITCH
NOTE:
THE LUMINAIRE IS ELECTRIFIED
SEPARETELY.
