CLIVET CKN-XHE2i 7.1 User Manual

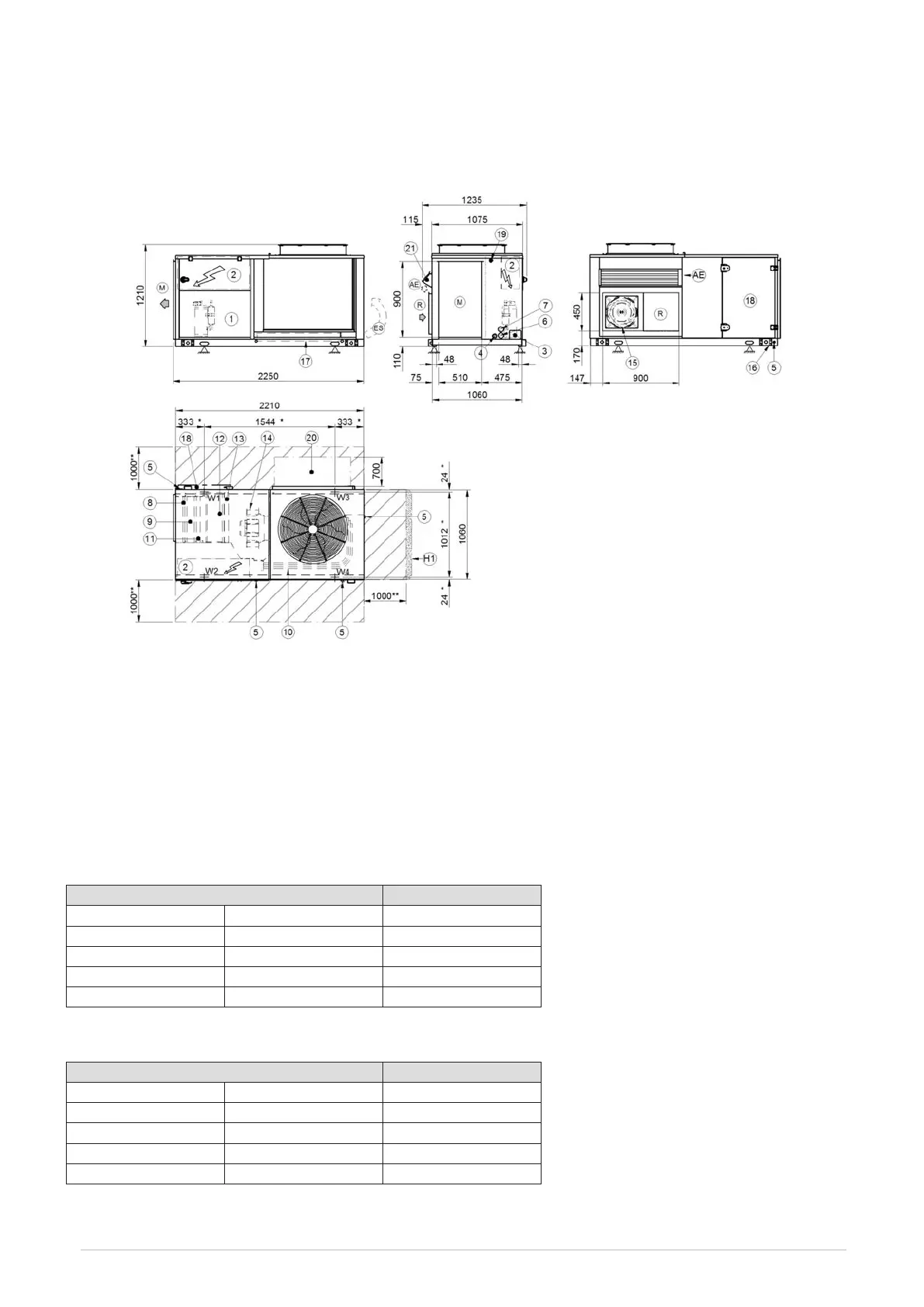

Dimensional drawings
Size 7.1 - Version CAK/CBK/CCK
Weight distribution of full re-circulation (CAK) / Recirculation and renewal air (CBK) conguration
Size 7.1
W1 Supporting Point kg 98
W2 Supporting Point kg 122
W3 Supporting Point kg 96
W4 Supporting Point kg 100
Shipping weight kg 452
Weight distribution of full re-circulation, renewal air and exhaust (CCK) conguration
Size 7.1
W1 Supporting Point kg 102
W2 Supporting Point kg 126
W3 Supporting Point kg 101
W4 Supporting Point kg 105
Shipping weight kg 470
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
1. Compressor compartment
2. Electrical panel
3. Power input
4. Humidier connections
5. Condensate drain
6. H2O heating coil output Φ 3/4”
7. H2O heating coil input Φ 3/4”
8. Re-heating coil (optional)
9. Internal exchanger
10. External exchanger
11. H2O heating coil (optional) or heating elements (optional)
12. Electrostatic lters or F7 (optional)
13. G4 air lters (standard)
14. Electric fan (supply-return)
15. Exhaust electric fan (version CCK only)
16. Lifting brackets (removable)
17. Over pressure damper exhaust (version CCK only)
18. Access for inspection coil, lters, hesting elements
19. Access for inspection of the bleed valve (hot water coil)
20. Duct section removable for maintenance provided by the customer
21. Fresh air intake cap (only version CBK-CCK)
(R) Air return
(M) Air supply
(AE) Fresh air intake
(ES) Air exhaust (only version CCK)
(H1) Wall with same height as unit on a maximun of three side
(**) Minimun suggested clearance
(*) Vibration mounts position
DAA6K0001_7.1_0_REV00
Data/Date 06/11/2017
5

CKN-XHE2i 7.1-14.2 M06K10A18-00
