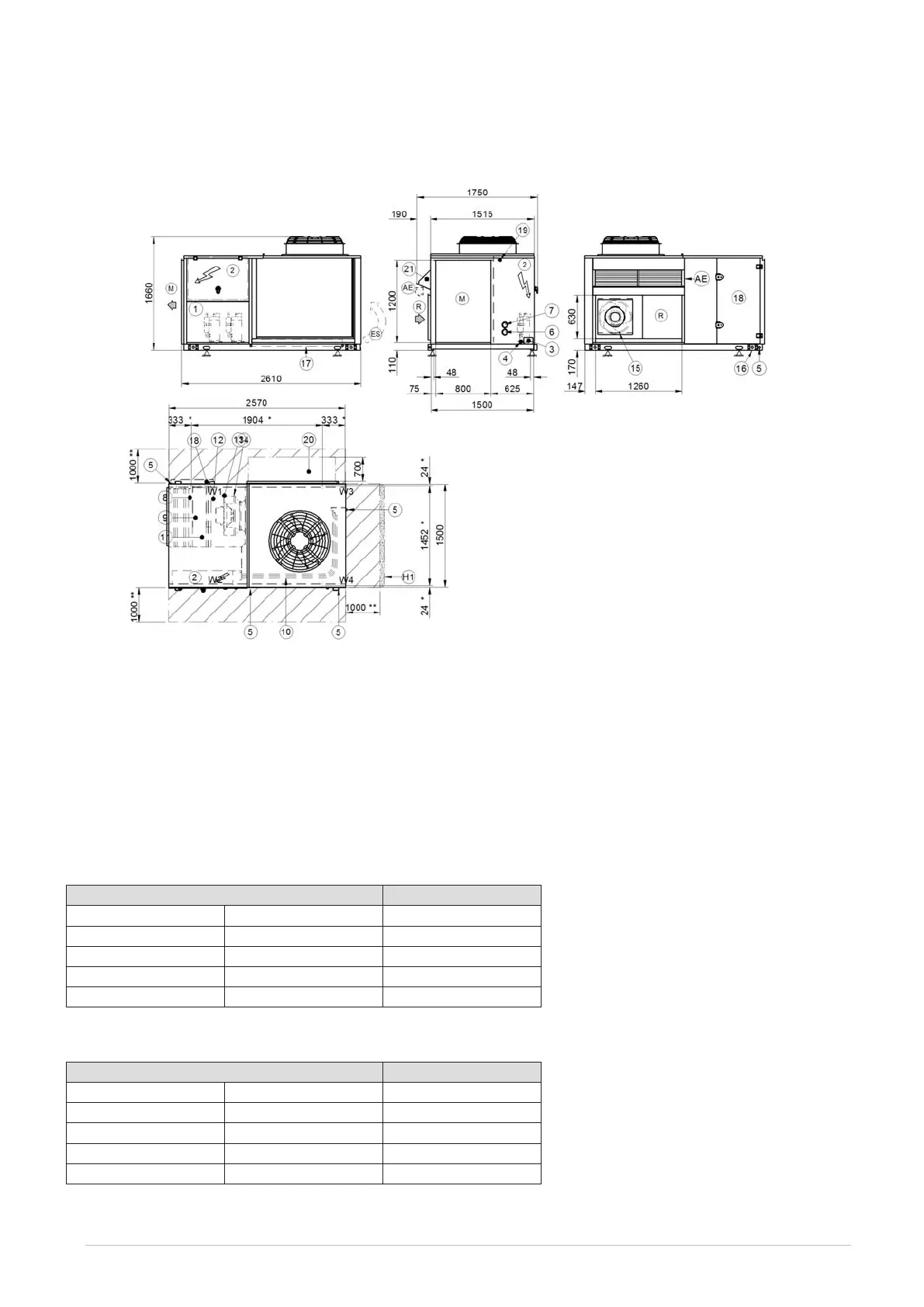

Dimensional drawings
Size 14.2 - Version CAK/CBK/CCK
Weight distribution of full re-circulation (CAK) / Recirculation and renewal air (CBK) conguration
Size 14.2
W1 Supporting Point kg 175
W2 Supporting Point kg 127
W3 Supporting Point kg 171
W4 Supporting Point kg 162
Shipping weight kg 685
Weight distribution of full re-circulation, renewal air and exhaust (CCK) conguration
Size 14.2
W1 Supporting Point kg 183
W2 Supporting Point kg 137
W3 Supporting Point kg 180
W4 Supporting Point kg 170
Shipping weight kg 720
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
1. Compressor compartment
2. Electrical panel
3. Power input
4. Humidier connections
5. Condensate drain
6. H2O heating coil outpuΦ 1” 1/4
7. H2O heating coil input Φ 1” 1/4
8. Re-heating coil (optional)
9. Internal exchanger
10. External exchanger
11. H2O heating coil (optional) or heating elements (optional)
12. Electrostatic lters or F7 (optional)
13. G4 air lters (standard)
14. Electric fan (supply-return)
15. Exhaust electric fan (version CCK only)
16. Lifting brackets (removable)
17. Over pressure damper exhaust (version CCK only)
18. Access for inspection coil, lters, hesting elements
19. Access for inspection of the bleed valve (hot water coil)
20. Duct section removable for maintenance provided by the customer
21. Fresh air intake cap (only version CBK-CCK)
(R) Air return
(M) Air supply
(AE) Fresh air intake
(ES) Air exhaust (only version CCK)
(H1) Wall with same height as unit on a maximun of three side
(**) Minimun suggested clearance
(*) Vibration mounts position
